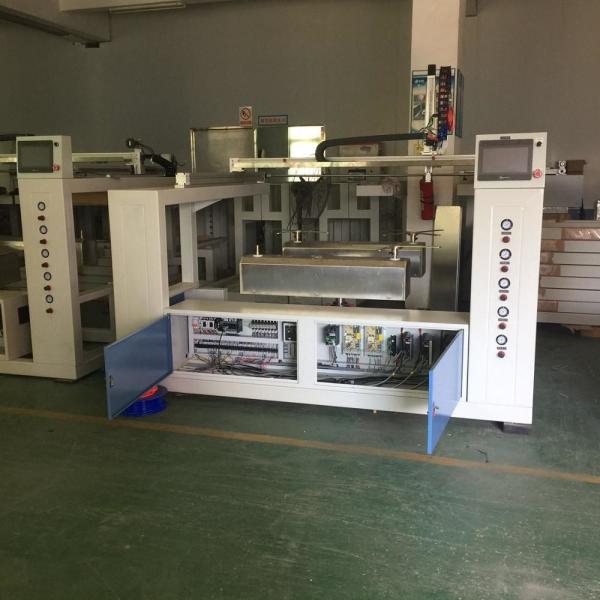

5 Axis Full Automatic Paint Spray Machine Robotic Coating Simple Touch Screen
5 Axis Full Automatic Paint Spray Machine Robotic Coating Simple Touch Screen
5 Axis Full Automatic Paint Spray Machine Robotic Coating Simple Touch Screen
5 Axis Full Automatic Paint Spray Machine Robotic Coating Simple Touch Screen
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Songqi
Certification :
ISO9001
Packaging Details :
Packaging film package and wooden binding
Supply Ability :
200 Set/Sets per Year
Price :
Negotiable
Model Number :
SQ100
MOQ :
Negotiable
Payment Terms :
D/P, D/A, L/C, T/T
Delivery Time :
15-20
Core Components :
PLC, Motor
Voltage :
110V/120V/127V/208V/220V /240V/380V/415V/460V
Power :
4kw
Dimension(L*W*H) :
L2200*W2100*H1950mm
Weight :
900kg
Local Service Location :
Egypt
Showroom Location :
Egypt, Canada, Turkey
Usage :
Operation by touch screen
Equipment Name :
Automatic Paint Spray Machine
degree of freedom :
5 axis
Spray gun :
Japanese Iwata
pump :
American GRACO 308 diaphragm pump
Description

5 Axis Full Automatic Paint Spray Machine Robotic Coating Simple Touch Screen

5 Axis Full Automatic Spray Paint Machine, Robotic Coating by Simple Touch Screen Programming

Features:

1. 5-axis automatic reicprocating painting machine;

2. 4 trays with indexer;

3. all servo motor is japan or korea make;

4. all data saved in programming for any future operation;

5. all spray length can be saved in programming to save paint;

6. axis movement speed adjustable;

7. distance adjustable from gun to component.

Control system
  1. Japanese OMRON PLC
  2. Taiwan WEINTEK Color industrial touch screen
  3. Schneider Electric switch and Power Supply
  4. Japanese OMRON relay

Drive system

Japanese Panasonic servo drive system

Transmission system

1. Aluminium profile module

2. Japan THK Linear guide rail

3. Japan THK Silent slide

4. Precision synchronous wheel

5. Italy Megadyne Synchronous belt with steel wire

6. positioning accuracy difference ±1mm

Product exchang platform
  1. Precision divider
  2. Taiwan CPG Gear motor

3. Japanese Mitsubishi frequency converter

Product rotation platform
  1. Precision divider

2.Can be 90 degrees, 180 degrees rotation, continuous rotation

Spray gun

Japanese ANEST IWATA

Paint supply system
  1. Amercian GRACO 308 diaphragm pump
  2. Pneumatic agitator produce from Taiwan,China
  3. Taiwan AIRTAC Solenoid valve, Pressure regulating valve, Pressure gauge

Power supply

AC220V50HZ, Single phase three wire

The detailed configuration of the robot has written in the form, you can see our automatic spraying painting machine's configuration is high ,so the failure rate of machine is very low. If i were you ,i would buy a high quality machine if i want to buy a machine from abroad. Then, why don't you choose us?
