ODM Single Side Water Curtain Spray Booth With Two Explosion Light
ODM Single Side Water Curtain Spray Booth With Two Explosion Light
ODM Single Side Water Curtain Spray Booth With Two Explosion Light
ODM Single Side Water Curtain Spray Booth With Two Explosion Light
ODM Single Side Water Curtain Spray Booth With Two Explosion Light
ODM Single Side Water Curtain Spray Booth With Two Explosion Light
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Songqi
Model Number :
SQSB100
Certification :
ISO9001
Supply Ability :
30 Set/Sets per Month
Price :
Negotiable
MOQ :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
15-20
Packaging Details :
Wooden box
Coating :
Painting
Voltage :
110V/120V/127V/208V/220V /240V/380V/415V/460V
Power :
7KW
Dimension(L*W*H) :
W2400*D2200*H2400mm
Weight :
200KG
lighting :
two explosion light
Size :
W2400*D2200*H2400mm
Exhausting system :
4KW centrifugal fan
Water pump :
3HP high quality vertical water pump and enviromental PVC tube
Style :
Single side water curtain and Up exhaust
Underframe :
40mm stainless steel square
Description

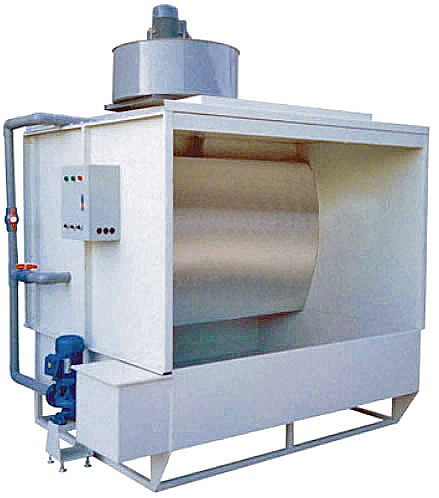

Single Side Water Curtain Spray Booth With Two Explosion Light

High quality stainless steel water spray booth

Product Application

Water curtain spray cabinet is mainly composed of a spray chamber, a water tank, adjustable feet cup, plate and the top plate (by bolts), positive overflow tank, water curtain plate, scroll plate, diversion plate, water retaining plate, front curtain plate, paint mist purification (water pipe), gas water separation chamber, water tank, water filter circulating system, explosion-proof lighting device, axial fan, water pump and pipe fittings (movable and detachable) and control system components, (zigzag plate, scroll device, gas separation chamber of unique structure, high efficiency of removing paint)

SPECIFICATIONS FOR UV CURING MACHINE
Size
W2400*D2200*H2400m

Style
Single side water curtain
Frame
Side plate: 1.2mm stainless steel plate
Bottom water tank: 1.5mm stainless steel plate
Water cuitain plate: 1.5mm stainless steel plate
Underframe:40mm stainless steel square
Water pump
3HP high quality vertical water pump
Enviromental PVC tube
Exhausting system
4KW fan
Light
2 lamp explosion-proof lamp

Main Features

1) It make a better working environment to keep workeer's health.

2) Small area, saving space

ODM Single Side Water Curtain Spray Booth With Two Explosion LightODM Single Side Water Curtain Spray Booth With Two Explosion Light

Our Service
ODM Single Side Water Curtain Spray Booth With Two Explosion Light
ODM Single Side Water Curtain Spray Booth With Two Explosion Light

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery oversea
