Technical characteristics:

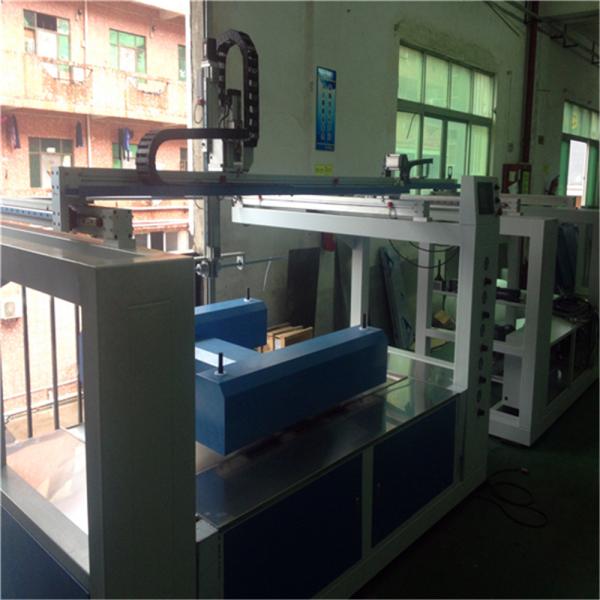

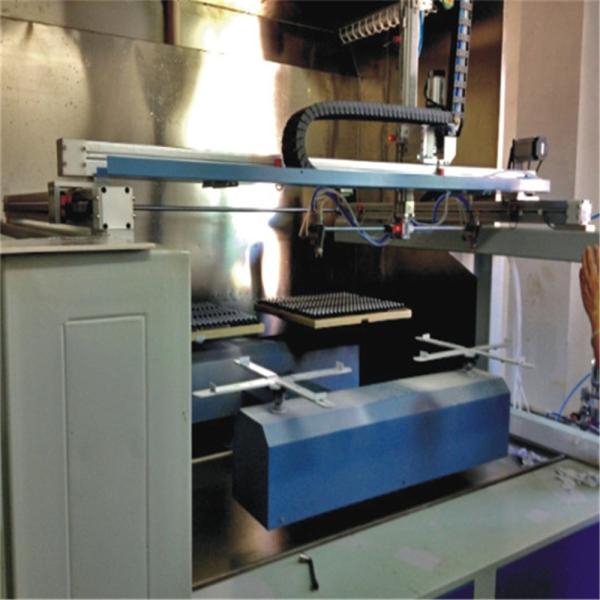

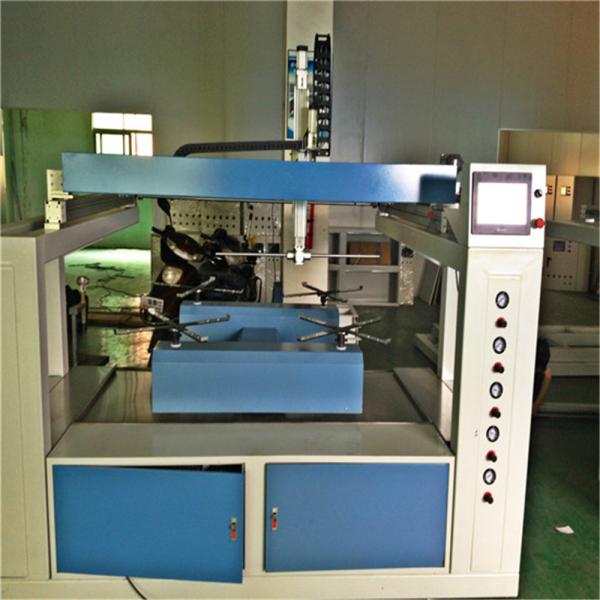

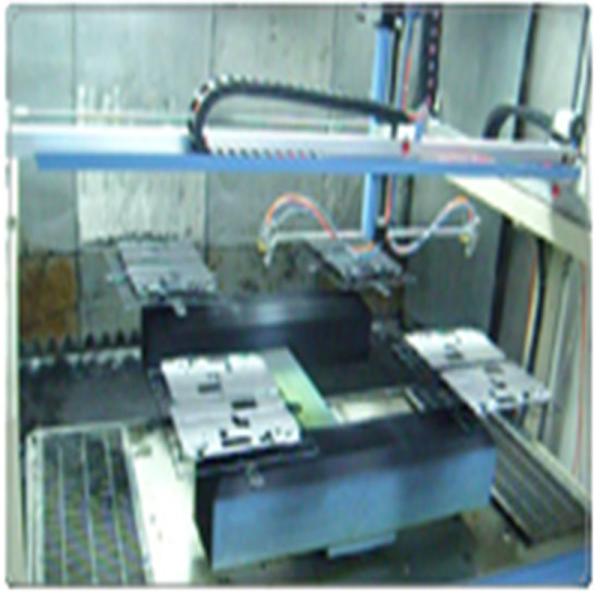

Reciprocator Spray PaintingMachine

1. Rotation speed: 10-50rpm

2. Workpiece size: 600mm*600mm

3. Production: depending on the workpiece

4. Number of spray gun: 1 pieces

5. Spraying method: the workpiece rotates 90 degrees, the spray gun extends the XY axis direction spraying

6. XY Reciprocating speed: servo motor drive 01.5m/sec

7. XY axis travel 1200*1000

8. Lance angle: automatic adjustment

9. Control mode: touch screen input data, with programmable PLC central control box

Production instructions:

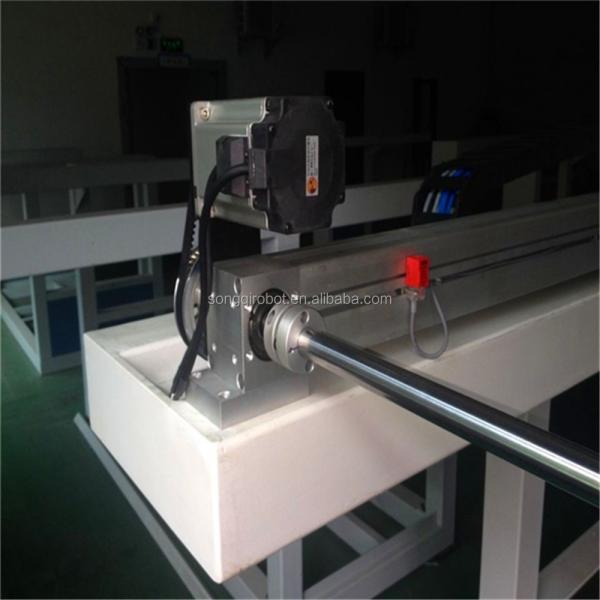

10. The X axis sliding platform: 1 sets of Taiwan Zirun module, Taiwan Bank of Haiwei on the linear guide rail and slide block, maximum distance 1200mm, the fastest speed of 1.5M/S, "Magodi" in Italy with wire synchronous belt, reciprocating precision, long service life, inertia servo motor of Japan's Matsushita 750W.

11. The Y axis sliding platform: Taiwan Zirun module 2, Taiwan Bank of Haiwei on the linear guide rail and slide block, maximum distance 1000mm, the fastest speed of 1.5M/S, "Magodi" in Italy with wire synchronous belt, reciprocating precision, long service life, Panasonic servo motor 750W.

12. Z axis lifting combination: adopt gear rack type adjustable structure, Panasonic servo 400W motor drive, speed 0.3 meters / sec, adjustable range 300MM.

13. W spray gun rotating shaft: the motor is fixed on the top of the Z shaft, and the rotating shaft of the spray gun is driven by a turbine reducer and a coupling. The paint pollution is effectively avoided, and the power of the stepping motor is adopted. The angle is adjustable at 0-90 degrees.

14. Workpiece rotation platform: 2 station, precision splitter + stepper motor, 90, 180 degrees rotation, autobiography time 1-3S.

15. Axis of Revolution: 1 sets of revolution parts of structures produced by Taiwan 110 type high precision protractor, chain drive, powered by the city of Taiwan gear motor, inverter, accurate positioning, stable performance, revolution time 2-4S.

16. Anest Iwata 1, 1 sets of oil supply system, the standard configuration of pressure regulating valve and the atomization, Taiwan solenoid valve, paint supply by Taiwan diaphragm pumps, configuration buffer tank and large flow regulator valve, the Japanese super soft tube coating

17. Control system: Taiwan 6.7 inch color touch screen, the Japanese OMRON central controller, buttons and components are used in Taiwan brand, configuration of limit and the origin of induction switch, stable performance, teaching operation, can be equipped with various spraying procedures, can store and save the corresponding formula.

18. Frame: 100 * 100 square welded iron and steel plate, side plate with 3mm stainless steel plate modular structure.

19.Pallet or workpiece max size: 600*600mm (standard cross brace, two brace, customer own)

20.machine size: W2200*D1900*H2150 (tentative)

Technical advantages

1. Wide range of applications, strong applicability, high quality and high efficiency spraying

2. Automatic machine control, automatic fault detection, automatic safety protection

3. CNC servo drive, reciprocating speed, and accurate positioning

4. All Chinese menu, easy to learn, you can write multiple sets of programs, intelligent storage system, program settings and free movement, you can store 30 sets of programs

5. The frame is modular, easy to move and easy to maintain
