Plastic Parts 3KW Auto Spray Painting Machine PLC Control Air Spraying
Plastic Parts 3KW Auto Spray Painting Machine PLC Control Air Spraying
Plastic Parts 3KW Auto Spray Painting Machine PLC Control Air Spraying
Plastic Parts 3KW Auto Spray Painting Machine PLC Control Air Spraying
Plastic Parts 3KW Auto Spray Painting Machine PLC Control Air Spraying
Plastic Parts 3KW Auto Spray Painting Machine PLC Control Air Spraying
Plastic Parts 3KW Auto Spray Painting Machine PLC Control Air Spraying
Plastic Parts 3KW Auto Spray Painting Machine PLC Control Air Spraying
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Songqi, Songqi
Certification :
internal control
Packaging Details :
Packaging film package and wooden binding
Supply Ability :
10 Set/Sets per Month
Price :
Negotiable
Model Number :
SQ100
MOQ :
Negotiable
Payment Terms :
D/P, D/A, L/C, T/T
Delivery Time :
15-20
Type :
automatic spray paint machine
Substrate :
Iron
Core Components :
PLC, Gearbox, Gear
Coating :
Painting
Voltage :
110V/120V/127V/208V/220V /240V/380V/415V/460V
Power :
3KW
Dimension(L*W*H) :
L2200*W2100*H2250mm
Weight :
300KG
Installation method :
stainless steel water curtain cabient
Spraying method :
air spray
Number of spraying amchine :
SQ300
pump :
diaphragm pump
Port :
Shenzhen
Description

Plastic Parts 3KW Auto Spray Painting Machine PLC Control Air Spraying​

plastic parts cheap price automatic spray painting line machine

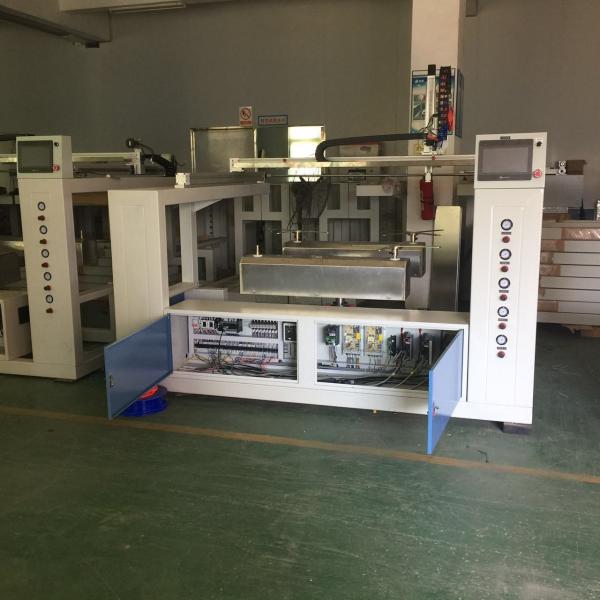

Control system
  1. Japanese OMRON PLC
  2. Taiwan WEINTEK Color industrial touch screen
  3. Schneider Electric switch and Power Supply

4. Japanese OMRON relay

Drive system

Japanese Panasonic servo drive system

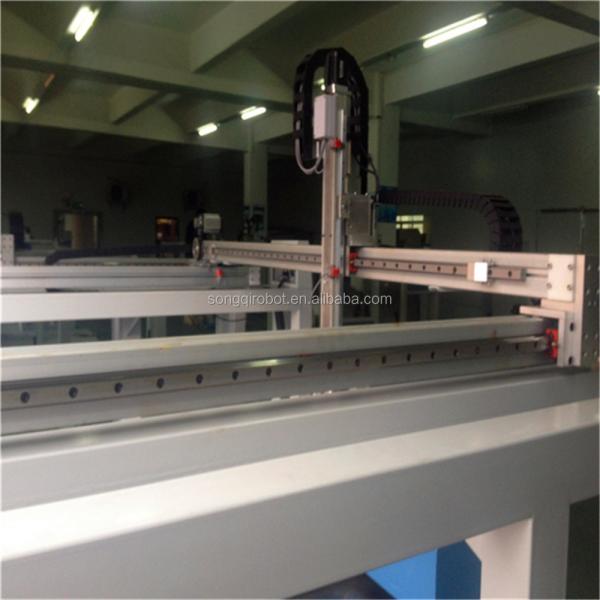

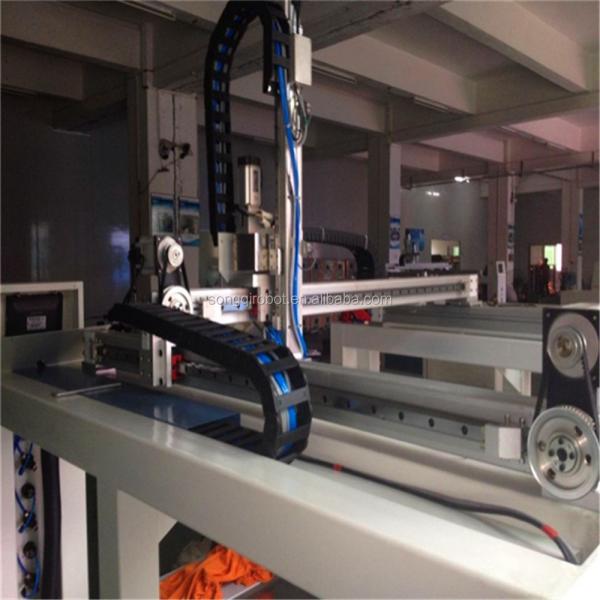

Transmission system

1. Aluminium profile module

2. Japan THK Linear guide rail

3. Japan THK Silent slide

4. Precision synchronous wheel

5. Italy Megadyne Synchronous belt with steel wire

6. positioning accuracy difference ±1mm

Product exchang platform
  1. Precision divider
  2. Taiwan CPG Gear motor

3. Japanese Mitsubishi frequency converter

Product rotation platform
  1. Precision divider

2. Can be 90 degrees, 180 degrees rotation, continuous rotation

Spray gun

Japanese ANEST IWATA

Paint supply system
  1. Amercian GRACO 308 diaphragm pump
  2. Pneumatic agitator produce from Taiwan,China
  3. Taiwan AIRTAC Solenoid valve, Pressure regulating valve, Pressure gauge

Power supply

AC220V50HZ, Single phase three wire

five axis spray painting machine

The detailed configuration of the robot has written in the form, you can see our automatic spraying painting machine's configuration is high ,so the failure rate of machine is very low. If i were you ,i would buy a high quality machine if i want to buy a machine from abroad. Then, why don't you choose us?

Why use Spray Painting Machine?

1. Increase production efficiency

2. Cut down the operating cost

3. Improve product quality and consistency

4. Reduce material waste and boast productivity

5. Cut the standard cost-optimize the storage and complicated process

6. Shortens the product upgrading cycle and the equipment investment

7. Improve the working condition of workers

8. Low down the technical requirements for workers

Before sales:

1. Our experts are ready to provide custom design and suggestion for each case.

2. We provide professional consulting service for painting machine and lines.


After-sales:

1. We will send the engineers for onsite installation, fine tune and operation training.

2. We will provide troubleshooting service all lifetime.

3. We provide 1 year warranty for each machine.

4. We will contact you back periodically to learn machine conditions.

5. We also provide the service for further extension on your existing machine.
