Specifications
Brand Name :
ZHONGHENG
Model Number :
ZH corrugated and trapezoidal
Certification :
CE/SGS/ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD30000-48000/set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
300 sets/months
Delivery Time :
25working days
Packaging Details :
Waterproof plastic film cover
Forming rollers :
18/22 stations
Feeding width :
1220mm
Thickness :
0.9mm
Motor :
7.5kw
Speed :
8-10m/min
Touch screen :
Delta
Description

Aluminium Profile Roof Panel Roll Forming Iron Sheet Making Machine made in China

Description

Roll forming machines can produce various of steel rooves and wall panels. As new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight and longevity.

Specification

1

Suitable to process

Color steel plate

2

Width of the plate

1220mm

3

Rollers

18/22rows

4

size

9800*1450*1510mm

5

Main moter power

5.5kw

6

Hydraulic unit power

3kw

7

Thickness of the plate

0.3-0.6mm

8

Productivity

15-20m/min

9

Diameter of the roller

Φ70mm

10

Voltage

380V 50Hz 3phases

11

Rolling material

Forging Steel 45#

12

Material of the cutting plate

Cr12

13

Hydraulic

40#

14

Processing precision

Within 1.00mm

15

system

PLC vector control

Technical Specification

No

Technical Specification

1

Manual Uncoiler

Usage:It is used to support the steel coil and uncoil it in a turnable way

The steel coil is uncoiled by hand. Loading capacity:5T, Inner diameter: 500-508mm

2

Feeding Table

Put the raw material(steel plate) through the beach to manufacture and process

It can guarantee that the products are neat

Parallel and everything is uniformity

Please refer to the equipment regulation to know the function of locate angle iron.

3

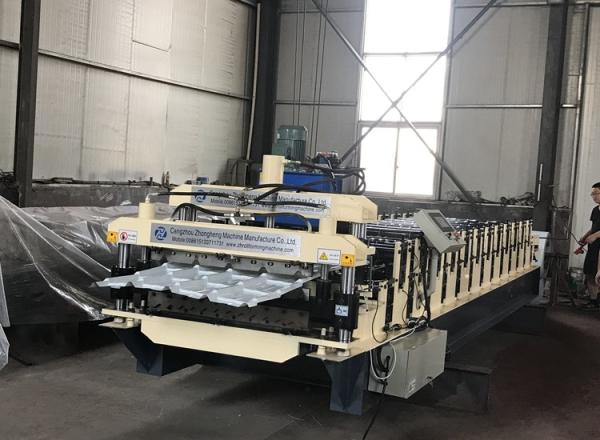

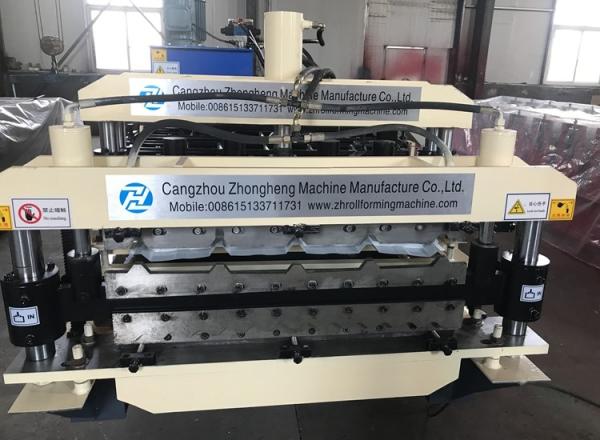

Main Roll Forming Machine

Material of rollers:45# steel,roller surfaces polishing, hard plating

The polished surface and the heat treatment towards the molds also can keep the molding

Plate surface smooth and not easy to be marked when it is being stamped

4

Hydraulic System

Computer Control Cabinet

Power:4kw,Hydraulic oil: 40#

Hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

The target piece`s length is adjustable and digit of it can be adjusted

Computed mode has two modes: automatic and manual one

The system is easy to operate and use

PLC:EURA

5

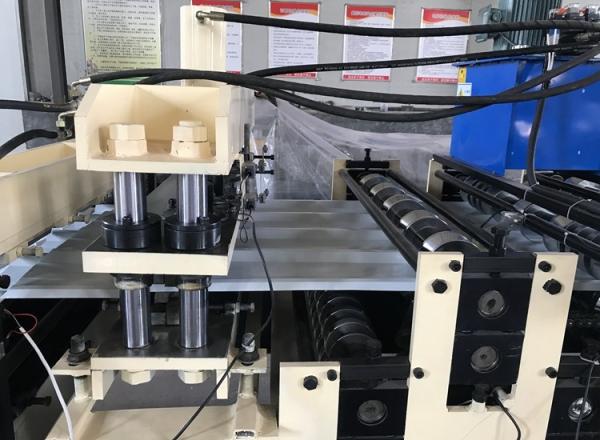

Shearing Mechanism

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12,quenching treatment

6

Output Table

It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products

components:

De-coiler 1 set
Forming machine 1 set
Cutting device 1 set
PLC control box 1 set
Hydraulic pump station 1 set
Production support table 1 set

Pre-sale service

We have the ability to solve the design and manufacture puzzles from stand-alone machine to the whole set to meet customers' requirements from all over the world With advanced technique system
