Specifications
Brand Name :
ZHONGHENG
Model Number :
ZH
Certification :
CE/SGS/ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$80000-90000/set
Supply Ability :
4 sets/months
Delivery Time :
80 working days
Packaging Details :
packaged by waterproof plastic film cover
Condition :
new
Usage :
roofing
capacity :
3000pcs/day
material :
PPGI/GI
Control system: :
PLC control box
Power :
113kw
weight :
15T
Description



Sand Blasting Stone Coated Metal Roofing Roll Forming Machine 113kw 15T
Sand Blasting Stone Coated Metal Roofing Roll Forming Machine 113kw 15TSand Blasting Stone Coated Metal Roofing Roll Forming Machine 113kw 15TSand Blasting Stone Coated Metal Roofing Roll Forming Machine 113kw 15T

Description:

Colorful stone - coated metal roof tile is a modern environmentally friendly roofing material with the basic of 0.4mm Al-zin coated steel.
Covering color vermiculite surface which carried under the high temperature technology.
It is high-performance, stable, energy-efficient and easy operation.


About the workers need:

PLACE

QTY.

Panel loading

one

Bottom spraying

one

Stone coating

one

Fill stone

one

Face glue

one

Bottom glue mixing

one

Finish goods receiving

one

Specification

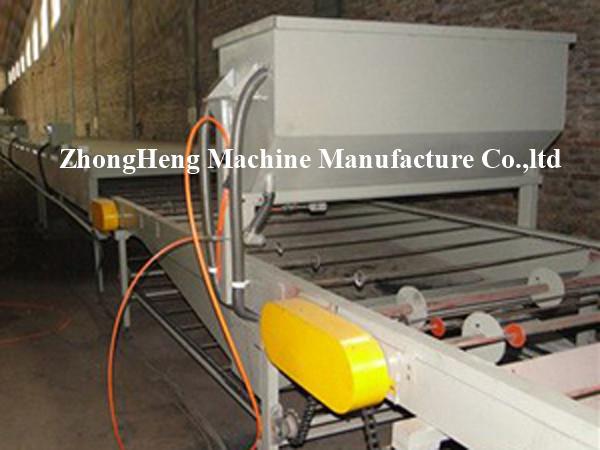

NO. 1 Auto bottom glue spraying section

Appearance size

4000*1000*2000mm

Driving section

3KW Excitation motor or frequency speed regulation
(AS per customers’ requirements )

Automatic pressure spray tank

1 set ; Capability: 200kg ; Range: 0.6~1Mpa

Automatic glue machine motor

Servo motor ; Power: 750w ; PLC

Automatic spray gun

4 set (spare parts)

Dust collecting fan

1 set ; Power: 200w

Damp proof lamp

1 pc ; Power: 100w

Conveying device

Chain reciprocating

Air compressor

1 set ; Power: 7.5kw

Dust control of axial flow fan

1 set ; Power: 200w

Agitator

1 set ; Power: 1.5kw

NO. 2 Auto stone coated section

Appearance size

3500*1000*1500mm

Framework

Steel welding

Conveying device

Chain reciprocating

Automatic sand hopper

1 set ; Capability: 200kg

Bucket lift

1 set

Manual sandblast gun

4 sets

NO. 3 Auto sheet turning

Framework

Steel welding

Speed control system

Transducer control

Transmit device

PVC Conveyor

Motor power

120W

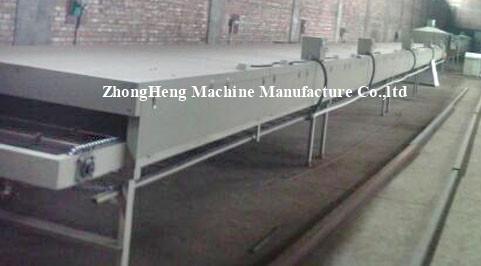

NO. 4 The first time drying section

Appearance size

32000*1650*1500mm

Framework

Steel welding

Frame type thermal insulation wall

1.2mm cold steel with Rock wool

Speed control

Transducer

Infrared heating tube

60pcs ; Power: 60kw

Conveying device

Chain reciprocating

Temperature adjust device

TED Auto Temperature control device 5 sets
Adjust range:0-160°

NO. 5Auto face glue spraying section

Appearance size

3000*850*2000mm

Framework

Steel welding

Damp proof lamp

1 pc ; Power:100w

Automatic pressure spray tank

1 set ; Capability: 200kg ; Range: 0.6~1Mpa

Conveying device

Chain reciprocating

Automatic spray gun

4 sets (spare parts)

Manual patch glue gun

4 sets

Dust control of axial flow fan

1 set ; Power: 200w

Automatic glue machine motor

Servo motor ; Power: 750w

NO. 6 The second time drying section

Appearance size

30000*1000*1200mm

Framework

Steel welding

Frame type thermal insulation wall

1.2mm cold steel with Rock wool

Automatic temperature controller

4 sets ; Range: 0°~160°

Infrared heating tube

30pcs ; Power: 30kw

Conveying device

Chain reciprocating

Air cooling device

1 set ; Power: 200w
