High Speed Roofing Corrugated Roll Forming Machine For Pavilions Wall 4.5 Ton
High Speed Roofing Corrugated Roll Forming Machine For Pavilions Wall 4.5 Ton
High Speed Roofing Corrugated Roll Forming Machine For Pavilions Wall 4.5 Ton
High Speed Roofing Corrugated Roll Forming Machine For Pavilions Wall 4.5 Ton
Specifications
Brand Name :
ZHONGHENG
Model Number :
ZH18-76
Certification :
CE/SGS/ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$ 25000-42000/set
Supply Ability :
100 sets/months
Delivery Time :
25 working days
Packaging Details :
Water proof plastic film cover
O.D. Of Pinch Rolls :
317 Mm.
Drive :
AC geared motor 22kw with reducer * one(1)
O.D. Of Corrugation Rolls :
380 mm (25 Rods, diameter 16mm)
Length Of The Sheet :
2500mm / 3000mm / 3660mm, Max 4000mm
Thickness Range Of Sheet :
0.14mm To 0.45 mm
Wt. Of The Machine :
4.5 Ton Approx .
Description

High Speed Roofing Corrugated Roll Forming Machine For Pavilions Wall 4.5 Ton

For manufacturing of barrel type corrugation machine

Final product 18-76 corrugated roof produced with the machine should have the following parameters

Thickness of base Metal

(mm)

Breadth (width after corrugation)

Length

Corrugation depth

Corrugation Pitch

Nominal (mm)

Tolerance (mm)

Nominal (mm)

Tolerance (mm)

Nominal (mm)

Tolerance (mm)

Nominal (mm)

Tolerance (mm)

0.12-0.45

762/914/1000

+25

-10

Max. 3660

+ 20

-0

18

± 1.5

76

± 2

Description:

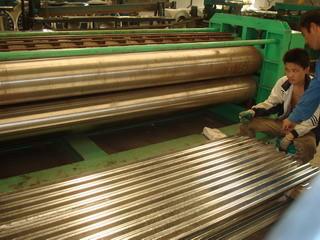

This is corrugating machine used for rolling steel plate of certain thickness at normal temperature. The working principle is deformation of rotation type. Feeding through transmission platform. Then form the Corrugation by roller shaft. At last , the ripple height is aligned by the alignment roller. This machine is widely used in rain-prevent, storage and manufacture fields etc.

Specification

NO.

Item

Specification

1

Processing material

Color steel / galvanized

2

Processing thickness

0.15-6mm

3

Material of roller dia

25mm

4

Total power

22kw

5

Brand of PLC

Mitsubishi

6

Production of speed

1.5-18m/min


Applications:

Roof metal profile machine is widely used in villa , holiday village , gardening industrial building, storage, scenic tourist area, pavilions, hotel, exhibition hall and so on. And we are emphasis on the detail and the technical update constantly.

Competitive Advantage:

1. save space

2. easy installation

3. best after-sale service

4. excellent quality

5. Operate easily

Welcome to make order

Whatsapp number:008615133711731

High Speed Roofing Corrugated Roll Forming Machine For Pavilions Wall 4.5 TonHigh Speed Roofing Corrugated Roll Forming Machine For Pavilions Wall 4.5 Ton
