PPGI Cold roll Former Metal Stud Roll Forming Machine For T Grid Ceiling Beam
PPGI Cold roll Former Metal Stud Roll Forming Machine For T Grid Ceiling Beam
PPGI Cold roll Former Metal Stud Roll Forming Machine For T Grid Ceiling Beam
PPGI Cold roll Former Metal Stud Roll Forming Machine For T Grid Ceiling Beam
PPGI Cold roll Former Metal Stud Roll Forming Machine For T Grid Ceiling Beam
PPGI Cold roll Former Metal Stud Roll Forming Machine For T Grid Ceiling Beam
PPGI Cold roll Former Metal Stud Roll Forming Machine For T Grid Ceiling Beam
PPGI Cold roll Former Metal Stud Roll Forming Machine For T Grid Ceiling Beam
Specifications
Brand Name :
ZhongHeng
Model Number :
ZH
Certification :
CE/SGS/ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$12500-18000/set
Supply Ability :
80 sets/months
Delivery Time :
30 working days
Packaging Details :
packaged by waterproof film cover
Material :
G.I. Coil. PPGI Coil
PPGI Tickness :
0.2mm-0.23mm
GI Tickness :
0.24 mm - 0.2mm
Hole punching :
26 holes
Control system :
PLC and inverter
Cutting edge :
2
Joint holes :
24
Speed :
3 pieces * 3600mm / min
Description

PPGI Cold roll Former Metal Stud Roll Forming Machine For T Grid Ceiling Beam

PPGI Cold roll Former Metal Stud Roll Forming Machine For T Grid Ceiling Beam

Components of line

NO

Name

Unit

Qty

1

Man-made decoiler

set

2
  • Max width 300mm
  • Inner diameter -460-510mm
  • Max loading capacity 1000kg
  • Manual operating type manual expansion to tighten the coil
  • Break down drive whole line stop while decoiler idle

2

Feeding Table

set

1

3.

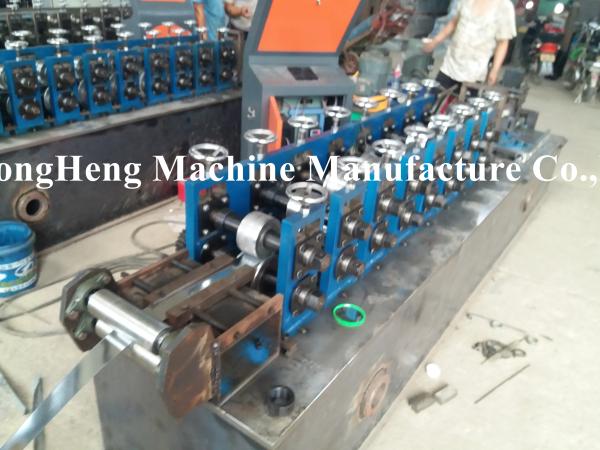

Forming Rollers

set

1
  • Forming Station 16 nos
  • Forming Rollers material Cr12
  • Forming Rollers hard treatment HRC 58-60
  • Shaft of roller Diameter 40mm
  • Shaft material 40Cr,heat treatment, refine grinded
  • Machine frame: steel welding
  • Main sidewall thickness 25mm
  • Machine driven by universal joints via gearbox
  • Roll forming motor 5.5kw with frequency inverter controller
  • Gearbox RV worm gearbox

4.

Hydraulic cutting with hole punching

set

1
  • Hydraulic pump stand 1 set
  • Hydraulic Components taiwanese
  • Hydraulic System discharging protection with wind cooler
  • Edge cutting 2 sets both ends
  • Middle joint hole punching 23sets/152.4mm
  • Fire testing hole 2 sets both ends
  • Mould standard SKD-11 Steel Japanese
  • Mould frame&plate S45C
  • Mould pin SKH-9 steel Japanese
  • All mould treatment By slow-feeding Nc wire cutting

5.

Profile Discharger

set

1
  • Driven machinical Auto Head
  • Operation Full automatic along with forming machine

6.

Electric Control system

set

1
  • Frequency converter Silin ,Taiwanese
  • PLC Fatek ,Taiwanese
  • Touch screen weinview Taiwanese
  • Profile length cutting forming machine stops then cut
  • Operational controller: touch screen knob switch emg

Brake down and so on

(6)Power supplier 380V 50Hz 3phase

Applications:

1. Any small problems will be solved at the most prompt time.

2. We always offer relateive technical support,quick response,all your inquire will replied within 24 hours.

3. We can delivery your goods within 25 workdays.

4. OEM service.

Competitive Advantage:

1 This production line is full automatic-------could save working time and reduce the cost.

2 New----------new developed automatic Grid production line in China

3. Ceiling mould is perfect------------could use 10 years or long

4. Price --------------is reasonable (welcome you send mail for asking the price)

5. Technic support------------10 years technican give you strong and timely support

FAQ

1. Q: What is the MOQ?

A: 1 set.

2. Q: What is the Delivery time?

A: Within 25 workdays.

3. Q: What is the Payment terms you can accept?

A: T/T or L/C.30% deposit,and before shipped we hope to receive the balance 70%.Also 100% L/C is accepted.

4. Q: What is the Warranty?

A: Within 12 mounts,all of the technical personnel are ready to serve you at any time.
