Steel Frame Rolling Shutter Strip Forming Machine 50hz 40mm Solid Forming Shaft
Steel Frame Rolling Shutter Strip Forming Machine 50hz 40mm Solid Forming Shaft
Steel Frame Rolling Shutter Strip Forming Machine 50hz 40mm Solid Forming Shaft
Steel Frame Rolling Shutter Strip Forming Machine 50hz 40mm Solid Forming Shaft
Steel Frame Rolling Shutter Strip Forming Machine 50hz 40mm Solid Forming Shaft
Steel Frame Rolling Shutter Strip Forming Machine 50hz 40mm Solid Forming Shaft
Steel Frame Rolling Shutter Strip Forming Machine 50hz 40mm Solid Forming Shaft
Steel Frame Rolling Shutter Strip Forming Machine 50hz 40mm Solid Forming Shaft
Specifications
Brand Name :
ZHONGHENG
Model Number :
ZH120
Certification :
CE/SGS/ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD5000-8000/set
Supply Ability :
50 sets/months
Delivery Time :
25 working days
Packaging Details :
Packed in plastic film cover
Weight :
4.2t
The bearing :
Harbin type 6207
The machine material :
welding comprise of 12 square pipe
Production time :
20 days
Warranty :
2 years
color :
blue
Description

Steel Frame Rolling Shutter Strip Forming Machine 50hz 40mm Solid Forming Shaft

Applications:

The shutter door and window,is the customer suggest the size and drawing of the profile,we make the machine according to the drawing.The advantage of the saw cutting is no waste.

Competitive Advantage:

1. save space

2. easy installation

3. perfect service

4. excellent quality

5. Operate easily

Specification

NO.

ITEM

PARAMETER

NOTE

1.

Suitable

material

Type

steel strip

Width(mm)

105mm

Thickness(mm)

0.3-0.8mm

Yield stress(mm)

G220-G300

2.

Product

specifications

Detail as the attached file

Length

Any length

3.

Power

requirement

Type

380v/3ph/50hz

Motor brand shanghai Lichao

Main Motor power

3kw

Cutter power

4kw

4.

Forming speed(m/min)

8m/min

Not include the time of cutting

5.

Forming stand

13

Depend on actual design

6.

Thickness of structure

14mm

7.

Forming shaft diameter(mm)

40 solid

8.

Type of cutting

Roll formed and

length-set cutting

9.

Control system

PLC and inverter

10.

Install dimension(depend on the final design)

4.2m×0.8m×1m

Without panel length

11.

Total weight (Approx)

2.6T

Depend on final design

Description:

NO

Name

Unit

Qty

1

Man-made decoiler

set

1

2

Main machine for roll forming

set

1

3

Control system

set

1

4

Hydraulic system

set

1

Process sketch

Uncoiling the sheet --- Infeed guiding --- Roll forming --- Rectifying the straightness ---

--- Measure length --- Cutting the panel --- panels to the supporter (option: automatic stacker).

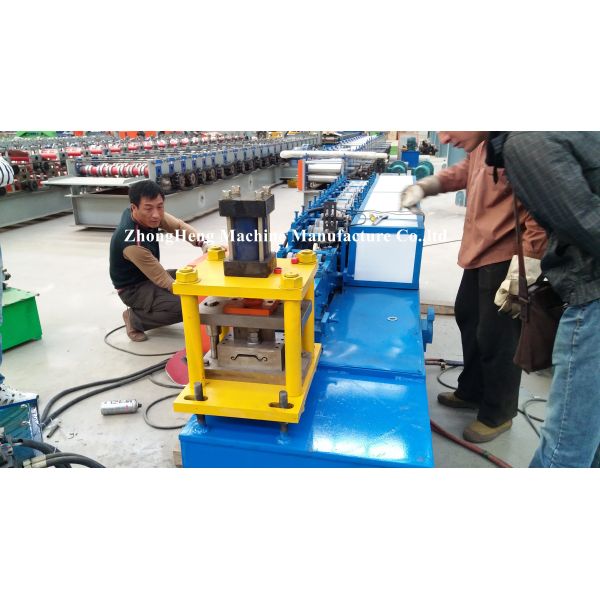

Machine picture

Steel Frame Rolling Shutter Strip Forming Machine 50hz 40mm Solid Forming ShaftSteel Frame Rolling Shutter Strip Forming Machine 50hz 40mm Solid Forming Shaft
