Specifications
Brand Name :
ZHONGHENG
Model Number :
ZH 101
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1 Set
Price :
13800$
Supply Ability :
50 Sets per months
Delivery Time :
40 working days
Packaging Details :
packaged by water proof plastic film cover
Name :
PPGI Metal Roof Forming Machine Trapezoidal Sheet Roll Forming Machine
Material :
GI/PPGI/ALZINC
Effective width :
101000
Motor brand :
Simesens
Motor power :
4KW
Pump motor :
4KW
Forming Stations :
14
Roller shaft :
75
Chains :
1 inch
Speed :
10meters/min
Cutting device :
Cut to length
Encoder :
Omron
Description
Aluzinc Roof forming machine with Siemens motor
1.Description of

They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,
ancient architectures and modern villas
3.Working Flow of Roll Forming Machine
Aluzinc PPGI Roofing Sheet Roll Forming Machine With Siemens Motor

4.Product description

A Sheet Specifications

1. Coil Type Roll Forming Machine full-automatic single layer corrugated profile roofing sheet color steel roof
2. Width 1220mm
3. Thickness range 0.3mm-0.8mm (max)
4. Yield stress(mm) Q235
5. Effective width 1010mm

B Components Details

Roller Material High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame 350# steel. More stable and no shaking.
Middle Plate

16mm. We use thicker plates to ensure stability

of our products.
Forming Steps 11-16, according to the drawing.
Shaft Material Φ70 mm, high grade 45# steel.

Treating process: tempering- finish turning,

high rigidity, hard to deform.

Cutting

Blade Material

 Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting.

C. Electric Components

Suitable Power 380V, 50 Hz, 3 phase or according to your need.
Screen 7 inch touch screen, easy to operate.
PLC Delta DVP 14ES

well-adapted to various conditions, such as moisture,

electromagnetic disturbance.
Frequency Converter

Delta VFD-M. It has the advantage of slowing down before cutting,

to ensure the length accuracy (±1mm,

far better than industrial standard ±3mm).

Length

Measurement Device

 Omron, made in Japan.
It features with high accuracy and stability.

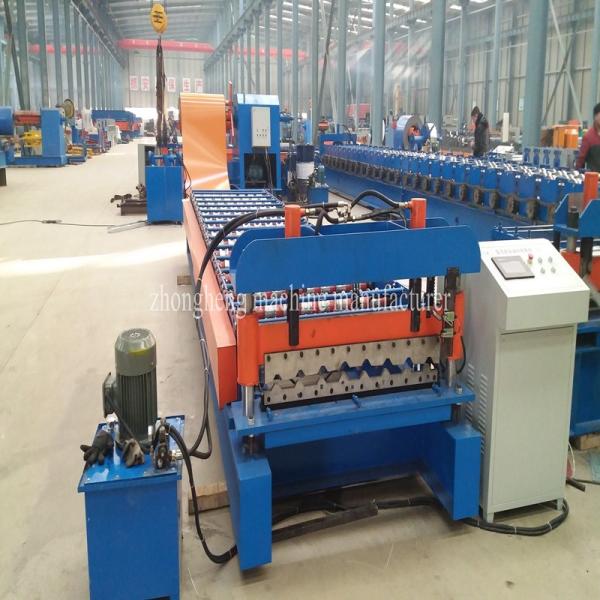

Machine picture

Aluzinc PPGI Roofing Sheet Roll Forming Machine With Siemens Motor

Aluzinc PPGI Roofing Sheet Roll Forming Machine With Siemens Motor

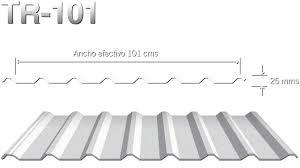

5.Profile drawing
Aluzinc PPGI Roofing Sheet Roll Forming Machine With Siemens Motor

Aluzinc PPGI Roofing Sheet Roll Forming Machine With Siemens Motor

Aluzinc PPGI Roofing Sheet Roll Forming Machine With Siemens Motor
.The Application of PPGI Metal Roof Forming Machine Trapezoidal Sheet Roll Forming Machine
