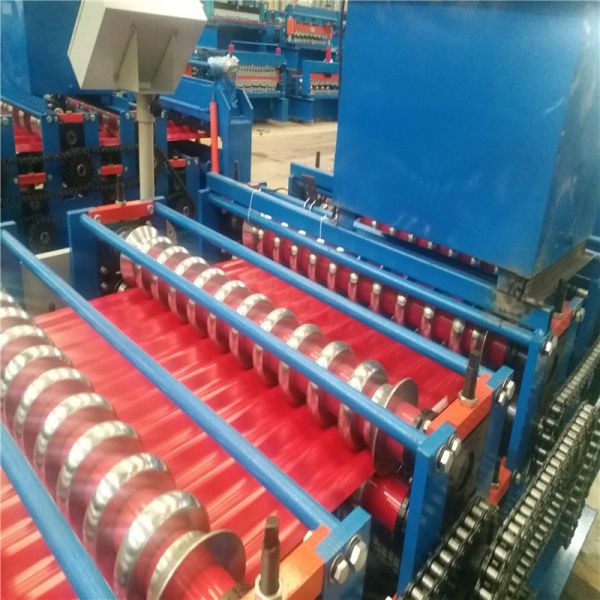

Portable Metal Roofing Corrugated Roll Forming Machine With 5T Hydraulic Uncoiler
Portable Metal Roofing Corrugated Roll Forming Machine With 5T Hydraulic Uncoiler
Portable Metal Roofing Corrugated Roll Forming Machine With 5T Hydraulic Uncoiler
Portable Metal Roofing Corrugated Roll Forming Machine With 5T Hydraulic Uncoiler
Portable Metal Roofing Corrugated Roll Forming Machine With 5T Hydraulic Uncoiler
Portable Metal Roofing Corrugated Roll Forming Machine With 5T Hydraulic Uncoiler
Portable Metal Roofing Corrugated Roll Forming Machine With 5T Hydraulic Uncoiler
Portable Metal Roofing Corrugated Roll Forming Machine With 5T Hydraulic Uncoiler
Specifications
Brand Name :
ZH
Model Number :
ZH-860
Certification :
CE
Place of Origin :
Hebei , China
MOQ :
1 set
Price :
USD8000-15000 per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
30 days
Packaging Details :
One set machine needs one 40GP for shipment , PLC system packed with Carton box .
Type :
portable metal roofing roll forming machine
Feature :
Long life time
Special :
Hydraulic cutting
Warranty :
1 year free
Service :
Whole life
Description

Hydraulic cutting portable metal roofing roll forming machine with 5T Hydraulic uncoiler

Portable Metal Roofing Corrugated Roll Forming Machine With 5T Hydraulic Uncoiler

Portable Metal Roofing Corrugated Roll Forming Machine With 5T Hydraulic UncoilerPortable Metal Roofing Corrugated Roll Forming Machine With 5T Hydraulic UncoilerPortable Metal Roofing Corrugated Roll Forming Machine With 5T Hydraulic Uncoiler

Details Superior quality IBR metal roofing sheet roll forming machine supplier

Name step tile roll forming machine
Material Color steel sheet
Thickness 0.3-0.8mm
Coil inner diameter 450-550mm
Max coil out diameter 1300-1600mm
Max coil width 1250mm
Carrying capacity 5T
Forming steps 13rollers
Shaft diameter 80 mm
Design type pillar structure

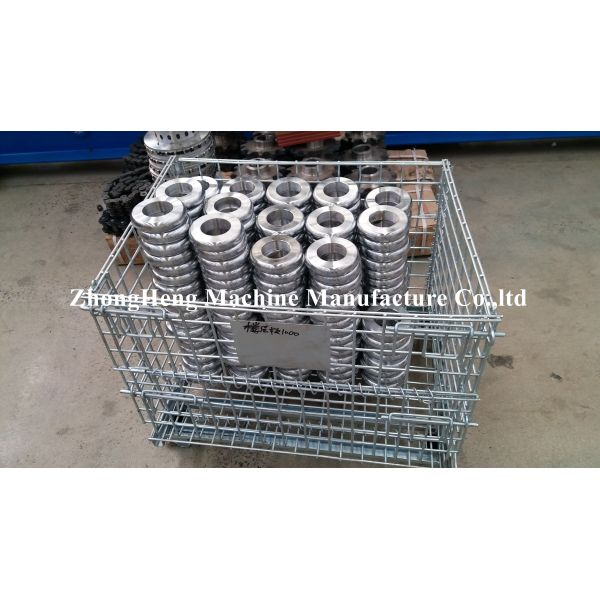

Roller material 45 # steel chrome plating chromium
Shaft material 40Cr steel
Work speed 4-12m/min
Transpor by chain
Type of cutting hydraulic
Cutting tolerance whthin 1mm
Cutter Gcr12
Material of blades Cr12 quenched
PLC Delta
Counter Omion
Voltage as required
Dimension 7000x1500x1910mm
Weight About 5 T
Workers 1-2 only

Working process :

Uncoiling--->Feeding material into machine-->Roll forming --->Measuring length --->Step formed--->Auto cutting--->Pruducts receving.

Portable Metal Roofing Corrugated Roll Forming Machine With 5T Hydraulic Uncoiler

FAQ

1.How to get a quotation?
Give me the profile drawing and thickness,this is the important.
Other spicific requirements is welcome,such as the speed,power and voltage you want.

2. Terms of payment:
30% T/T, Balance to be paid before shipping after inspection.Also we accept the payment L/C, O/A , D/P.

3. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

4. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.

5. What is your after-sale service?
Roll forming machine's warranty period is 12months,if the broken parts can't be repaired,we can send new to replace for free,but you need to pay the express cost yourself.we supply the technical support for the whole life of the equipment.
