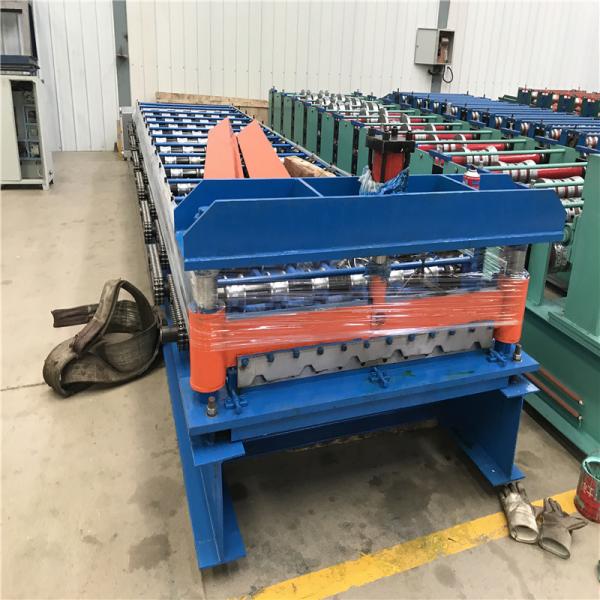

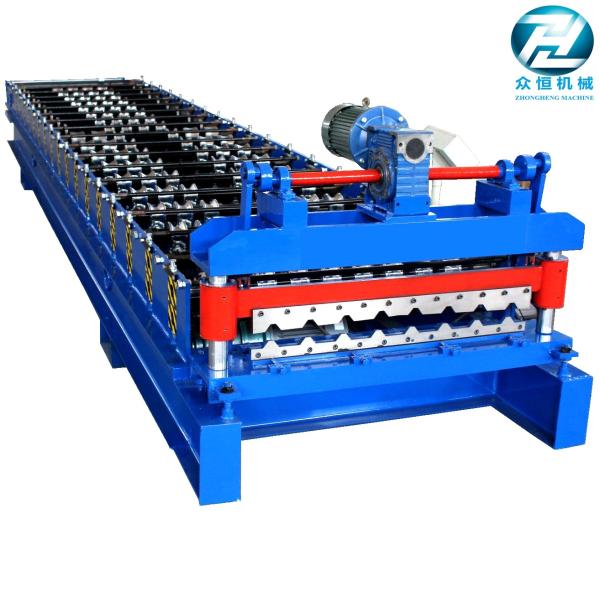

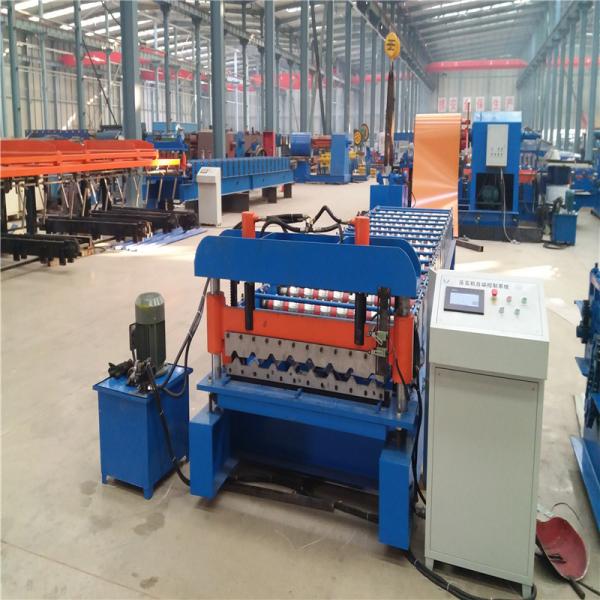

Gear Drive Roofing Sheet Roll Forming Machine High Forming Machine 30-35 m / min
Gear Drive Roofing Sheet Roll Forming Machine High Forming Machine 30-35 m / min
Gear Drive Roofing Sheet Roll Forming Machine High Forming Machine 30-35 m / min
Gear Drive Roofing Sheet Roll Forming Machine High Forming Machine 30-35 m / min
Gear Drive Roofing Sheet Roll Forming Machine High Forming Machine 30-35 m / min
Gear Drive Roofing Sheet Roll Forming Machine High Forming Machine 30-35 m / min
Gear Drive Roofing Sheet Roll Forming Machine High Forming Machine 30-35 m / min
Gear Drive Roofing Sheet Roll Forming Machine High Forming Machine 30-35 m / min
Gear Drive Roofing Sheet Roll Forming Machine High Forming Machine 30-35 m / min
Gear Drive Roofing Sheet Roll Forming Machine High Forming Machine 30-35 m / min
Specifications
Brand Name :
ZH
Model Number :
ZH-1000
Certification :
CE
Place of Origin :
Hebei , China
MOQ :
1 set
Price :
USD9000-15000 per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
30 days
Packaging Details :
One set machine needs one 40GP for shipment , PLC system packed with Carton box .
Type :
Gear Drive Roofing Sheet Roll Forming Machine High Forming Machine 30-35 m / min
Feature :
Fast speed
Special :
Electric cutting
Power :
4+4KW
Volgate :
380V or custom
Roller :
No.45 steel with heat treatment
Warranty :
1 year free
Service :
Whole life
Description

Gear Drive Roofing Sheet Roll Forming Machine High Forming Machine 30-35 m / min

Gear Drive Roofing Sheet Roll Forming Machine High Forming Machine 30-35 m / min

Gear Drive Roofing Sheet Roll Forming Machine High Forming Machine 30-35 m / min

Gear Drive Roofing Sheet Roll Forming Machine High Forming Machine 30-35 m / min

2. Working Flow of Gear Drive Roofing Sheet Roll Forming Machine High Forming Machine 30-35 m / min

Manual decoiler→ Feeding material into machine →Roll forming machine →Measure length→Electric cutting →Finished Products

Gear Drive Roofing Sheet Roll Forming Machine High Forming Machine 30-35 m / min

3. Technical parameters of Gear Drive Roofing Sheet Roll Forming Machine High Forming Machine 30-35 m / min

Zinc roof sheet roll forming machine
1 Suitable to process Color steel
2 Width of the raw material 1000/1200/1220/1250
3 Output width 1000 or custom
4 Rollers 16 rows
5 Power 4kw+4kw
6 Thickness of the plate 0.3-0.8mm
7 Productivity

12-15m/min or

25-30m/min by servo motor
8 Diameter of the roller 72mm
9 Weight About 4 T
10 Voltage 380V 50Hz 3phase
11 Received table 6 meters
12 Raw material of the cutter Cr12
13 Raw material of the roller

Bearing steel

Gear Drive Roofing Sheet Roll Forming Machine High Forming Machine 30-35 m / min

FAQ

1. You are the manuafacturer or trading company ?

A: We are the professional manufacturer , and we have more than 20 years professional experiece in the field of roll forming machine.

2. Can you make the machine according to my design or photo type?

A: Yes. We have an experienced team to work out the most suitable design and production plan

for the machine.
3. How can we be assured that you will deliver us quality machine with spare parts?

A:1. Customers to send the technical people to our factory for checking the quality.

2.We can send the technicians to the buyer`s factory for the installation of the machine.
4.What policy of your garentee?

A: Within the One-YEARS period, we could supply you the replacement parts free of charge

for any damaged parts caused by quality problems after two years,you need to buy by factory cost

Free quotation just call Rebecca : +86 15720370230
