Automatic Cutting C Channel Roll Forming Machine With Non Change Shearing Device
Automatic Cutting C Channel Roll Forming Machine With Non Change Shearing Device
Automatic Cutting C Channel Roll Forming Machine With Non Change Shearing Device
Automatic Cutting C Channel Roll Forming Machine With Non Change Shearing Device
Automatic Cutting C Channel Roll Forming Machine With Non Change Shearing Device
Automatic Cutting C Channel Roll Forming Machine With Non Change Shearing Device
Specifications
Brand Name :
ZH
Model Number :
ZH-80-300
Certification :
CE
Place of Origin :
Hebei , China
MOQ :
1 set
Price :
USD25000-40000 per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
30 days
Packaging Details :
One set machine needs one 40GP for shipment , PLC system packed with Carton box .
Type :
Automatic Cutting C Z Purlin Roll Forming Machine
Feature :
Long life time
Special :
Hydraulic cutting
Power :
5.5+4KW
Volgate :
380V or custom
Roller :
No.45 steel with heat treatment
Warranty :
1 year free
Service :
Whole life
Description

Automatic Cutting C Z Purlin Roll Forming Machine

Automatic Cutting C Channel Roll Forming Machine With Non Change Shearing DeviceAutomatic Cutting C Channel Roll Forming Machine With Non Change Shearing DeviceAutomatic Cutting C Channel Roll Forming Machine With Non Change Shearing DeviceAutomatic Cutting C Channel Roll Forming Machine With Non Change Shearing Device

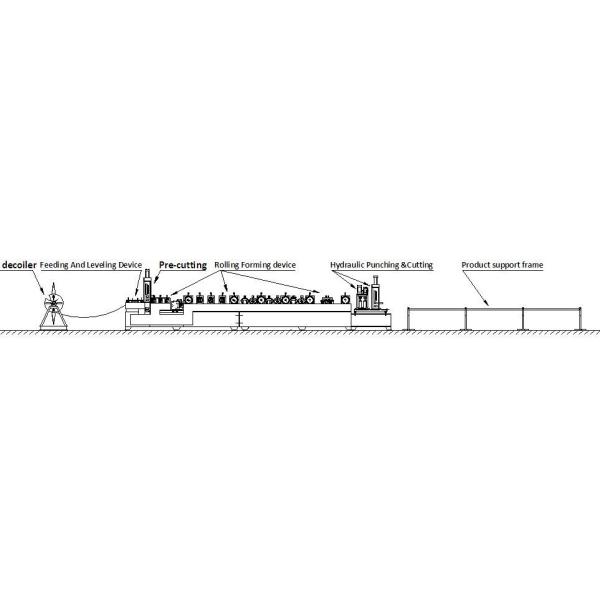

Working processing of Automatic Cutting C Z Purlin Roll Forming Machine

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving

Automatic Cutting C Channel Roll Forming Machine With Non Change Shearing Device

Quick Details

1. Rolling Speed : 10-12m/min(cutting time is not include)

2. Steel sheet Thickness: 3mm

3. Control System: PLC:

4. Roller Stations: 18 stations

5. Roller Material : 45# forge steel, coated with chrome

6. Shaft Material and DIA: ￠85mm,material is 45# forge steel

7. Maim Motor Power: 11kw

8.Hydraulic Pressure: 12Mpa

9. Material Of The Stations: Wall plate

10. Tolerance: +1.5mm

11.Power supplier:380V, 60HZ,3 phase

12.Way Of Drive:1.2 inch single chain

13. Color Of The Machine :blue

14. The size of the forming machine:8000*1500*1000mm

15. Machine weight: about 6 tons

FAQ

1. Can you make the machine according to my design or photo type?

A: Yes. We have an experienced team to work out the most suitable design and production plan

for the machine.

2: How can we be assured that you will deliver us quality machine with spare parts?

A:1. Customers to send the technical people to our factory for checking the quality.

2.We can send the technicians to the buyer`s factory for the installation of the machine.

3.What policy of your garentee?

A: Within the One-YEARS period, we could supply you the replacement parts free of charge

for any damaged parts caused by quality problems after two years,you need to buy by factory cost.

Our Advantage

1. Professional

15 years' rich experience!

a.Specialized in roll forming machine since 1998.

b.Keeping improving the quality.
2. Low price

Save your money from every part!

a. Low labor cost;

b. Convenient transportation;

c. Complete supporting industries.
3. PLC

Ensuring high accuracy and easy to operate!

Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.
4. OEM / ODM

Customers’design, color & logo are also accepted!

Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.
5. One-Years warranty, whole life service

Keep troubles far away from you!

Within the One-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems .

Free quotation please contact Rebecca

WhatsApp/Wechat: +86 15720370230
