Roof And Wall Panel Glazed Tile Forming Machine PLC Control 5.5 KW Motor
Roof And Wall Panel Glazed Tile Forming Machine PLC Control 5.5 KW Motor
Roof And Wall Panel Glazed Tile Forming Machine PLC Control 5.5 KW Motor
Roof And Wall Panel Glazed Tile Forming Machine PLC Control 5.5 KW Motor
Roof And Wall Panel Glazed Tile Forming Machine PLC Control 5.5 KW Motor
Roof And Wall Panel Glazed Tile Forming Machine PLC Control 5.5 KW Motor
Specifications
Brand Name :
ZHONGHENG
Model Number :
1100
Certification :
CE/SGS/ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD14000-15000/set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
300 sets/months
Delivery Time :
25working days
Packaging Details :
Waterproof plastic film cover
Dimension(L*W*H): :
7.2*1.3*1.6 m
Forming stations :
14
Color :
As cutomer requested
Voltage :
380V 50Hz 3phases
coil width :
1250mm
Description

Roof And Wall Panel Glazed Tile Forming Machine PLC Control 5.5 KW Motor

Roof And Wall Panel Glazed Tile Roll Forming Machine PLC Control 5.5 KW Motor

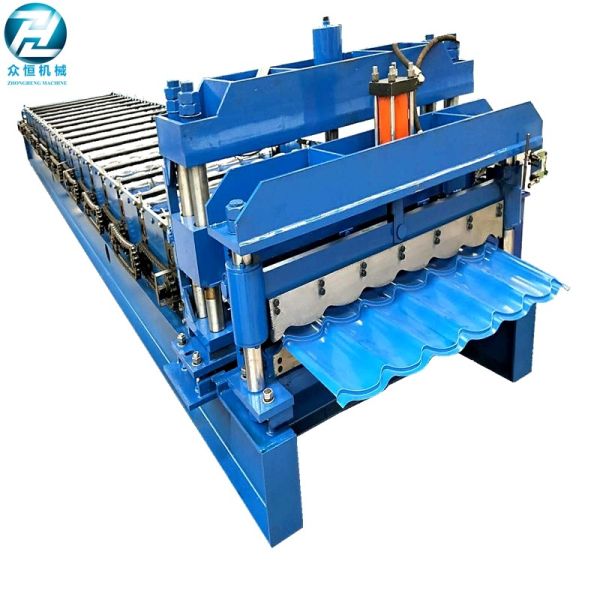

1.Machine pictures
Roof And Wall Panel Glazed Tile Forming Machine PLC Control 5.5 KW Motor
1. Work flow:
manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system-- post cut-- output table

Article No.Item NameSpecification
1Width of feeding material1250mm coil sheet
2Thickness of feeding material0.3mm-0.8mm coil sheet
3Roller station13 stations
4Shaft Diameter75mm
5Productivity8-12m/min
6Rollers' material45# steel forge
7Shaft material45# steel
8Weight2.5-8 ton
9length7m
10Voltage380V 50Hz 3phases
11ControlPLC
12Decoiler86Tons
13Motor5.5kw
14Driving wayChain transmission
15Chain size1inch
16Cutting systemHydraulic cutter


2. Terms of payment.

Payment type30% T/T payment in advance and balance paid by TT or irrevocable LC at sight.
Delivery time30-40 working days after receiving the advance payment.


3. Before ordering:
We can help to analyze the roof tile in your market. Which one is popular and which one will be popular.
Then your product is hot sale roof tile .

We can confirm all details of the roof tile roll forming machine together, including the drawing, thickness of
material, hardness of the steel coil, the input width of the steel coil, capacity of the roll forming machine.

We can help you to find the real manufacturer of steel coil manufacturer. Say bye to Trade company. So you can
order the material coil with lowest price.

4. During production:
We can send the pictures to show you the schedule of your roll forming machines.
We will show you my blogger account for you to learn knowledge of roll forming machine if you would like
We will ask you what color of the roll forming machine body. Produce the machine under your suggestion

5. After-sale service:
We supply one year guarantee for the machine. The parts of the roll forming machine are free to send you and
you will pay the cost of freight. And you can aslo solve it if you ordered more parts for your rol forming machine

We supply all life tech support of our roll forming machines, Any questions, you can contact me by whatsapp.
( I suggest that whatsapp or wechat is good. Because i can get your words timely) Important thing, you can write mail to me.
Roof And Wall Panel Glazed Tile Forming Machine PLC Control 5.5 KW Motor

Roof And Wall Panel Glazed Tile Forming Machine PLC Control 5.5 KW MotorRebecca Yang
CompanyCangzhou zhongheng machine manufacture Co.,ltd
AddressNancang road botou city hebei province China
Whatsapp+8615720370230
Youtubehttps://www.youtube.com/channel/UCFbWECOfV2xeM-WCaww_iPQ
