High Speed Steel Coil Slitting Process 220KW Customized Color CE Standard
High Speed Steel Coil Slitting Process 220KW Customized Color CE Standard
High Speed Steel Coil Slitting Process 220KW Customized Color CE Standard
High Speed Steel Coil Slitting Process 220KW Customized Color CE Standard
High Speed Steel Coil Slitting Process 220KW Customized Color CE Standard
High Speed Steel Coil Slitting Process 220KW Customized Color CE Standard
High Speed Steel Coil Slitting Process 220KW Customized Color CE Standard
High Speed Steel Coil Slitting Process 220KW Customized Color CE Standard
Specifications
Brand Name :
ZH
Model Number :
ZH-1500
Certification :
CE
Place of Origin :
Hebei , China
MOQ :
1 set
Price :
USD110000-150000per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
80 days
Packaging Details :
One set machine needs one 40GP for shipment , PLC system packed with Carton box .
Type :
High Speed Coil Steel Slitter Machine Slitting Rewinder Line
Special :
Fast speed
Power :
220KW
Volgate :
380V or custom
Roller :
No.45 steel with heat treatment
Warranty :
1 year free
strips :
21
coil width :
1500mm
Description

Brief introduction

Slitting line can help to improve efficiency, lower cost and ensure quality. DB has won wide market with its high performance and low price. The thickness of material can be from 0.3MM to 10MM, width from 500MM to 1600MM, quantity from 5 to 30 pieces, highest precision ±0.05MM and speed 180M/min. This line is applicable for processing of copper, aluminum, cold-reduced material, hot rolled material, silicon steel, and stainless steel and so on.

Technical Parameters

Steel

coil parameters

 Material CRS GI
Tensile strength b≤380Mpa,S≤260Mpa
Steel thickness 0.5-4mm
Steel width 400-1600(Max)
Steel coil I.D 500mm
Steel coil O.D 1600mm(Max)
Steel coil weight 20T(Max)

Slitter parameters

 knife pivot diameter 200 mm
Knife pivot material 40Cr
Blades specification 200mmX340mmX10mm
Blade material 6CrW2Si
Slit parameter Max slit quantity 8 pcs (3mm) 30 pcs(0.4mm)
Width precision ≤±0.05mm

Other parameters

 Power 380V/50Hz/3Ph
Line speed 0-150m/min
Capacity 210 Kw
Whole line Dimension 24m(L)X8m(W)
Operator needed 1 mechanical engineer ,2 common workers
Line direction From right to left(Face to machine)
Machine color Can be customized

Machine composition

1. Loading car

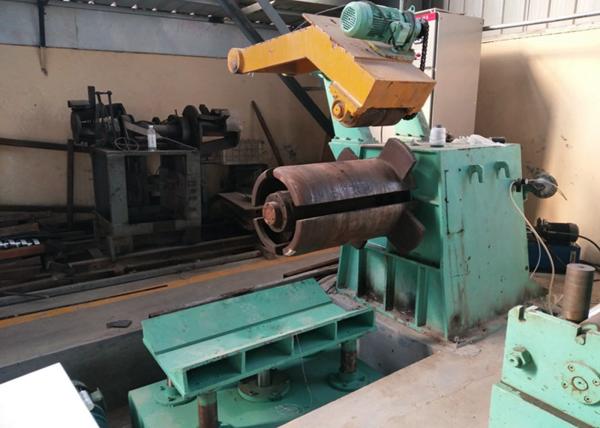

2. Hydraulic decoiler with support

3. Pinch roller and shearer

4. Lloop pit

5. Side guider, slitter

6. Scraper

7. Lloop pit

8. tension station

9. Recoiler and support

10. Unloading car

11. Electric system

13. Accessories

12. hydraulic system

High Speed Steel Coil Slitting Process 220KW Customized Color CE StandardHigh Speed Steel Coil Slitting Process 220KW Customized Color CE StandardHigh Speed Steel Coil Slitting Process 220KW Customized Color CE StandardHigh Speed Steel Coil Slitting Process 220KW Customized Color CE Standard


5. Payment

Payment

There are 3 plans for you.you can choose the best plan.
a.30% T/T deposit in advance and the balance of 70% is paid after confirmation and before shipping.
b.Irrevocable LC at sight.
c.30% TT deposit,and balance DA 60 days for part of countries with extra charges.Please contact me for details if you need this plan.
Delivery time

1.With 45 working days after received deposit ,we will finish the machine.
2.We will take photos and videos for your confirmation.
3.You need send balance and make delivery within 1 month.After you send the balance,you can book container.
4.Once container is confirmed,we load the container within 5 days.

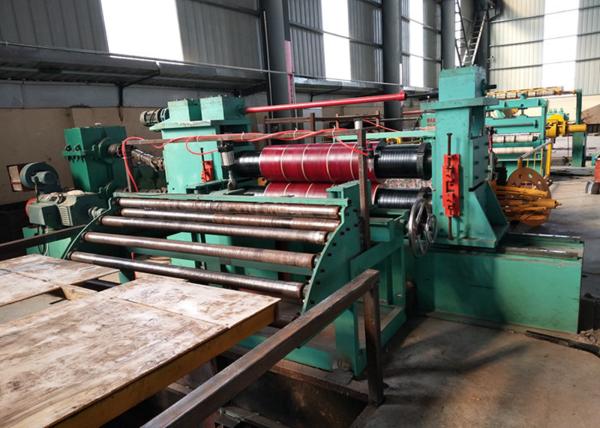

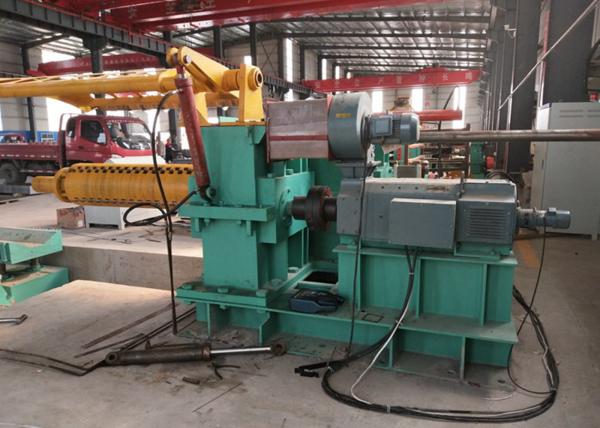

6. Machine picture

High Speed Steel Coil Slitting Process 220KW Customized Color CE Standard
