Steel Roof Truss Making Machinery Metal Roll Forming U C Z Purlin Machines

1.Main features of quick change CZ purlin roll forming machine

The advantages of CZ purlin machine AUTOMATIC size-change type are as follows:

1.Produce different purlin size without changing rollers or spacers.

2.No need changing cutter for different size.

3.Easy operation, low maintenance cost

4.Infinite sizing(any size within machine range),help to save material

5.Optional Punch hole at any position of purlin web side and flange side

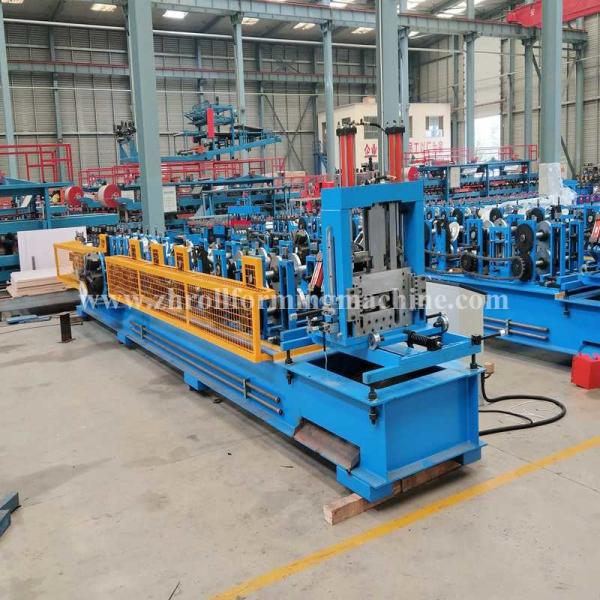

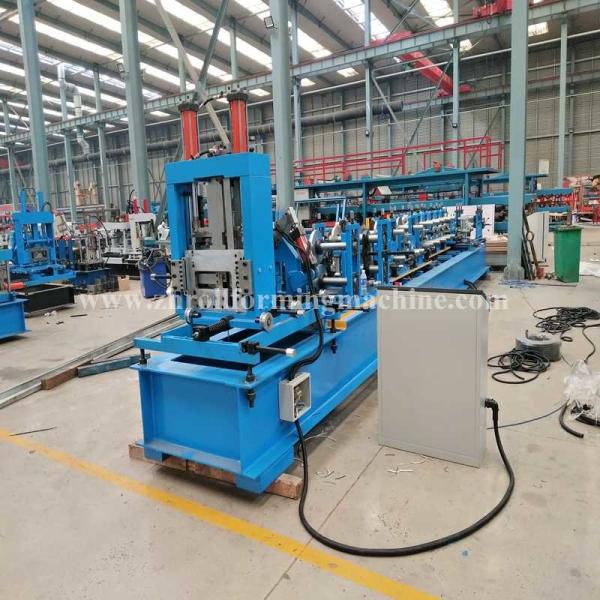

2.Detailed Images of cz shaped steel forming machine

Machine Parts

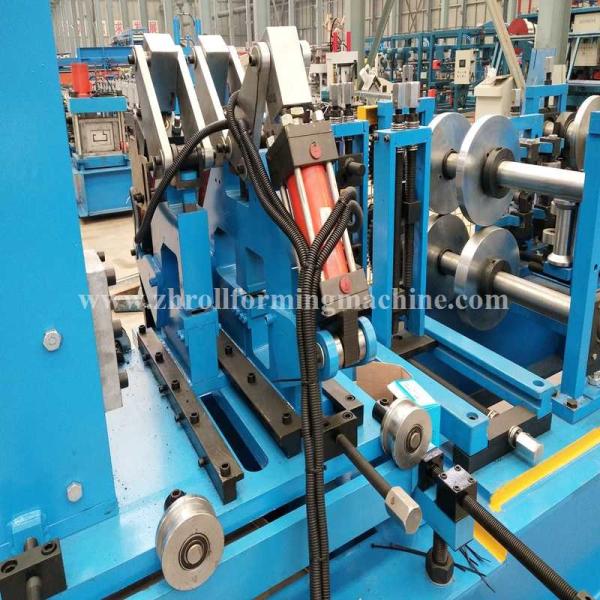

1) CZ purlin machine punching system

Brand: BMS Original: China

with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes.

2) CZ purlin machine rollers

Brand: BMS Original: China

Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

with black treatment or Hard-Chrome Coating for options.

With feeding material guide, body framemade from 400# H type steel by welding

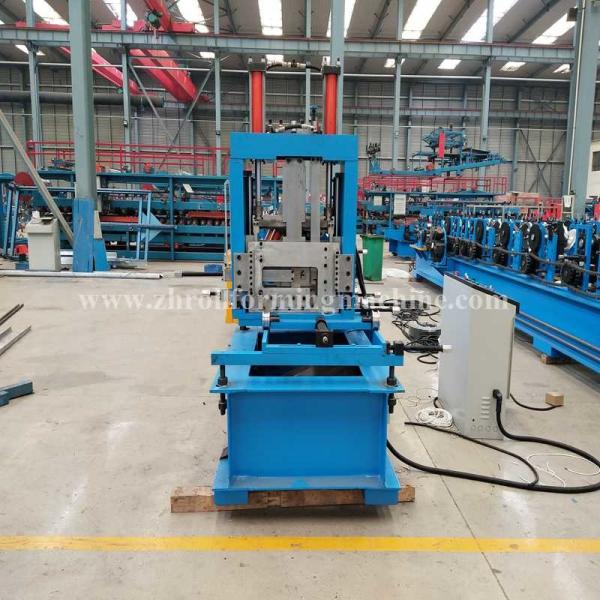

3) CZ purlin machine post cutter

Brand: BMS Original: China

No need to change cutter for different size,

made by high quality mold steel Cr12 with heat treatment

Cutter frame made from high quality 30mm steel plate by welding
Pre-punching & Pre-cutting, stop to punch, stop to cut
hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa

4) CZ purlin machine locating pin

Brand: BMS Original: China

C-to-Z purlin changing can finish within 5-10 minutes

5) CZ purlin machine decoiler

Brand: BMS Original: China

ManualDecoiler: one set

Un-powered,manually control steel coil inner bore shrinkage and stop

Max. feeding width: 500mm, coil ID range 470mm±30mm

Capacity: Max. 3Ton

With 3 tons hydraulic decoiler for option

6) CZ purlin exit rack

Brand: BMS Original: China

Un-powered,one unit
