Specifications
Brand Name :
ZH
Model Number :
ZH-950
Certification :
CE
Place of Origin :
Hebei , China
MOQ :
1 set
Price :
USD15000-18000 per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
30 days
Packaging Details :
One set machine needs one 40GP for shipment , PLC system packed with Carton box .
Name :
Roof Glazed Tile Roll Forming Machine
Feature :
Advanced design
Special :
Hydraulic cutting
Power :
4+4KW
Volgate :
220V or custom
Roller :
No.45 steel with heat treatment
Warranty :
1 year free
Service :
Whole life
Description

4kw Mexico Model Glazed Tile Roll Forming Machine

we are specialized manufacturers from China, Wall and Roof Roll Forming Machine, Roof Roll Forming Machine suppliers/factory, wholesale high-quality products of Wall Roll Forming Machine R & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!

This model of tile sheet is popular in Mexico Market.

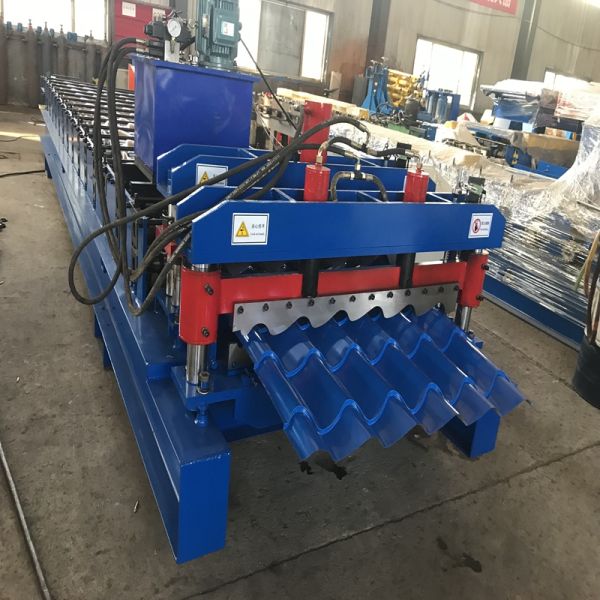

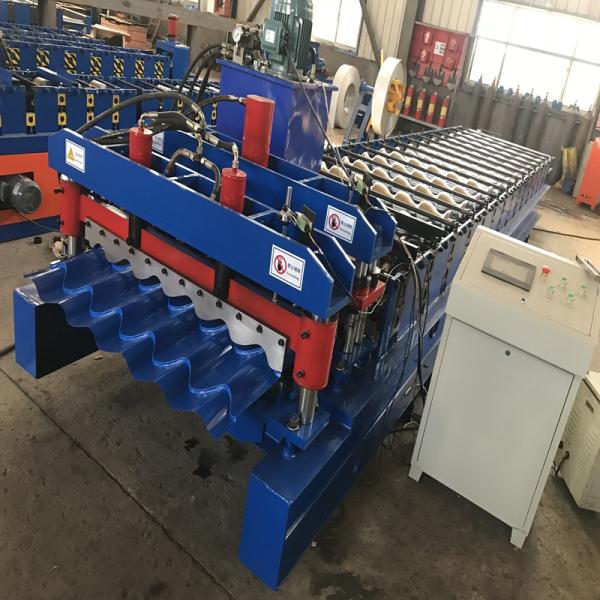

Machine pictures

4kw Glazed Tile Roll Forming Machine , Hydraulic Cutting Tile Making Machine4kw Glazed Tile Roll Forming Machine , Hydraulic Cutting Tile Making Machine

Specifications

Description Specification
Main moter power 5.5KW
Hydraulic station power 4KW
Hydraulic oil pump CB-E310
Sprocket P-25.4
Roller station 14
Yield strength 32MPa
Diameter of principal axis 75MM
Material of roller 45#steel hard chrome plating
Processing speed 8m/min
Thickness 0.3-1mm
Installation dimension about(L*W*H) 7.5*1.5*1.2M
Total weight 3.8T
Equipment parts includes:forming machine,hydraulic cutter,hydraulic station,electric controlling system,counter,product supporter

Discription

Roof Glazed Tile Roll Forming Machine is for producing the metal tiles which is similar to traditional tiles. While the quality and life is better.

What’s Roof Tiles?
Roof Tiles are to keep out rain. And traditional made from locally available materials such as slate and terracotta. And modern materials such as concrete, plastic and Metals. Metal Tile is very special and consist of a high percentage of recycled material and is 100% recyclable. And the Metal Roof Tile is also lightweight, can be installed on top of an existing roof. it’s very useful for a large and old structures( such as wooden structure). It is interlocked, so it provides increased wind resistance when compared with other roof materials. ZHONGHENG have developed almost 50 types of metal roof tile roll forming machine for different requirements.

Metal Roof tile roll forming machine is also called step tile roof roll forming machine, glazed roof tile roll forming machine, 3D roof tile roll forming machine, etc. ZHONGHENG have full automatic machine for metal tiles, and also accept customized profile design.

Servo Motor Drive Metcoppo Tile Roll Forming Machine


Uncoiler Capacity: 5 Ton
Uncoiling Width: 600-1250mm
Material Thickness: 0.2-0.8mm
Main Motor Power: 7.5KW
Forming Stands: 16-26 Depends on profile design
Rollers Material: ASTM 1045, Chromed 0.05mm thickness
Shaft Material: ASTM 1045, 75mm OD
Hydraulic Power: 4KW
PLC Brand: Delta
