Professional IBR Metal Roofing Sheet Roll Forming Machine Double 0.6 Inch Chains
Professional IBR Metal Roofing Sheet Roll Forming Machine Double 0.6 Inch Chains
Professional IBR Metal Roofing Sheet Roll Forming Machine Double 0.6 Inch Chains
Professional IBR Metal Roofing Sheet Roll Forming Machine Double 0.6 Inch Chains
Professional IBR Metal Roofing Sheet Roll Forming Machine Double 0.6 Inch Chains
Professional IBR Metal Roofing Sheet Roll Forming Machine Double 0.6 Inch Chains
Specifications
Brand Name :
ZHONGHENG
Model Number :
32-200-1000
Certification :
ce/sgs
Place of Origin :
China
MOQ :
1 set
Price :
USD 22500-32000
Supply Ability :
30 sets /month
Delivery Time :
25 working days
Packaging Details :
plastic film cover
Material :
PPGI
Diameter of the shaft :
70mm solid
Speed :
10-15m/min
Chains :
double 0.6 inch
Decoiler :
5 ton hydraulic
Stacker :
10 meters stacker
Description

Professiona ODM ibr metal sheet roof panel roll forming machine

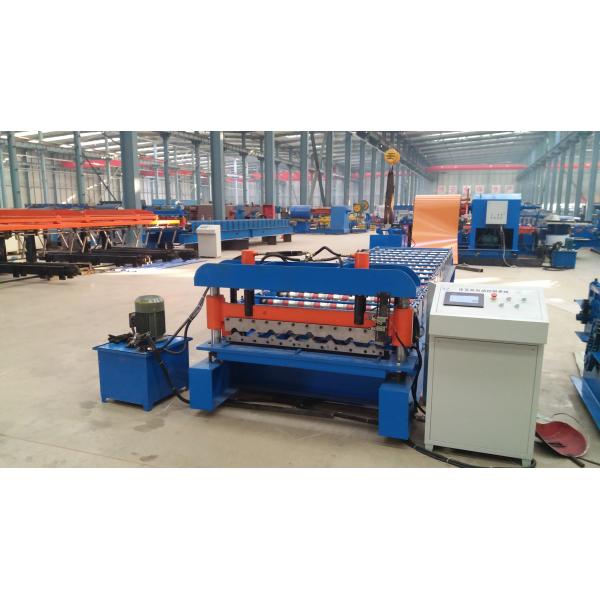

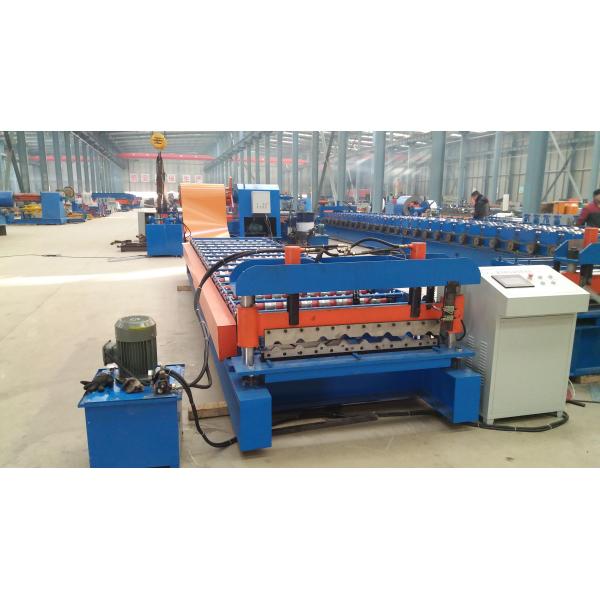

Machine pictures

Professional IBR Metal Roofing Sheet Roll Forming Machine Double 0.6 Inch ChainsProfessional IBR Metal Roofing Sheet Roll Forming Machine Double 0.6 Inch Chains

Advantages:

♥ As a manufacturer we are specialized in all kinds of roll forming machines.

♥ Rich experience of 20 years to make roll forming machine.

♥ Good experience for export more than 40 countries.

♥ Provide best price,good quality and fast delivery.

Production Detail Description

This machine is perfectly combined two different model machines together, this can save the

space and alsois easy to operate. The two models are chosen according to customers’ need.It

consists of feeding platform, main molding machine, shearing mechanism, hydraulic station,

computer control cabinet, high precision counter and so on.

A. General

Suitable Material Q235 or equivalent
Material Thickness 0.25-0.8 mm
Material Width 1250, as per the drawing
Dimension About8.9*1.3*1.1m(L*W*H) , as per the drawing
Working Space About 15.9*2.8m(L*W) , as per the drawing

Length of

the Sheet

You can set the length according to your need.

It is controlled by PLC

which can ensure the accuracy of ±1mm.
Cutting

Automatically stop and cutting when it comes to the set

length.

B. Components Details

Roller Material High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame 350# steel. More stable and no shaking.
Middle Plate

16mm. We use thicker plates to ensure stability

of our products.
Forming Steps 20, according to the drawing.
Shaft Material Φ75 mm, high grade 45# steel.

Treating process: tempering- finish turning,

high rigidity, hard to deform.

Cutting

Blade Material

 Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting.

C. Electric Components

Suitable Power 380V, 50 Hz, 3 phase or according to your need.
Screen 7 inch touch screen, easy to operate.
PLC Delta DVP 14ES

well-adapted to various conditions, such as moisture,

electromagnetic disturbance.
Frequency Converter

DeltaVFD- M. It has the advantage of slowing down before cutting,

to ensure the length accuracy (±1mm,

far better than industrial standard ±3mm).

Length

Measurement Device

 Omron, made in Japan.
It features with high accuracy and stability.
3. The Application

This type of roofing has advantage inclouding beautiful, classical appearance and grace taste.

It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate

4 package and loadng

A.Need one 40ft container.

B.Main body of machine fixed to container by 8mm diameter steel wire, rollers and shaft is covered

with anti-rust oil.

C.Spare parts in carton box.
