Specifications
Brand Name :
ZHONGHENG
Model Number :
ZH1000/1100
Certification :
ce/sgs
Place of Origin :
China
MOQ :
1 set
Price :
USD 22500-32000
Supply Ability :
30 sets /month
Delivery Time :
25 working days
Packaging Details :
plastic film cover
Material :
PPGI
Diameter of the shaft :
75mm solid
Motor :
5.5kw
Pump :
4kw
Speed :
10-15m/min
Chains :
double 0.6 inch
Description

roof tile forming machine metal deck rolling forming machine

(1). Brief Introduction

The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.

They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,

ancient architectures and modern villas.

(2). Working Flow of Roll Forming Machine

Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter

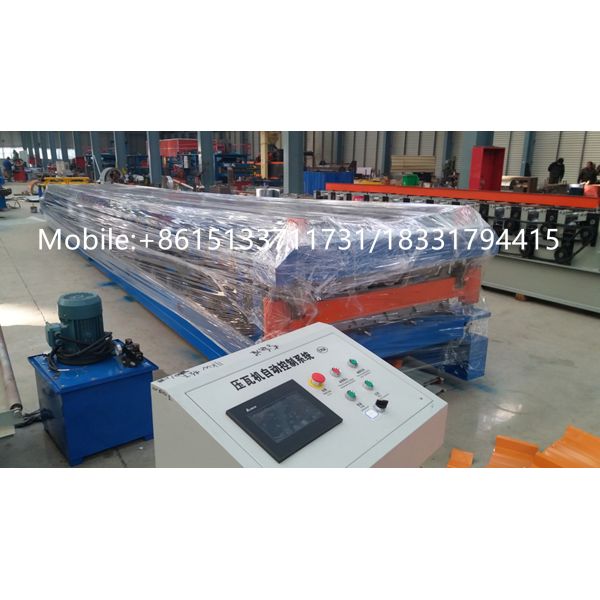

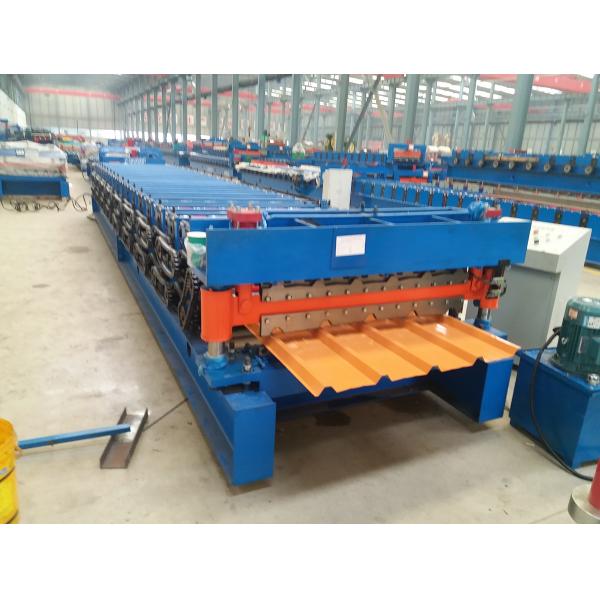

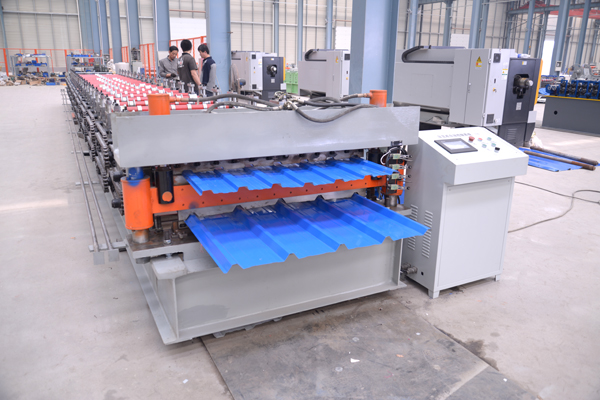

Machine pictures

Roof Tile / Roofing Sheet Roll Forming Machine Metal Deck Roll Forming MachineRoof Tile / Roofing Sheet Roll Forming Machine Metal Deck Roll Forming Machine

(3).Technical Detail

A. General

Suitable Material Q235 or equivalent
Material Thickness 0.25-0.8 mm
Material Width 914, 1000, 1200, 1220 or 1250, as per the drawing
Dimension About 5.9*1.3*1.1m(L*W*H) , as per the drawing
Working Space About 15.9*2.8m(L*W) , as per the drawing

Length of

the Sheet

You can set the length according to your need.

It is controlled by PLC

which can ensure the accuracy of ±1mm.
Cutting

Automatically stop and cutting when it comes to the set

length.

B. Components Details

Roller Material High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame 350# steel. More stable and no shaking.
Middle Plate

16mm. We use thicker plates to ensure stability

of our products.
Forming Steps 11-16, according to the drawing.
Shaft Material Φ70 mm, high grade 45# steel.

Treating process: tempering- finish turning,

high rigidity, hard to deform.

Cutting

Blade Material

 Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting.

3. The Application

This type of roofing has advantage inclouding beautiful, classical appearance and grace taste.

It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate

4 Advantage

1. Professional

15 years' rich experience!

a.Specialized in roll forming machine since 1998; b.Keeping improving the quality.

2. Low price

Save your money from every part!

a. Low labor cost;

b. Convenient transportation;

c. Complete supporting industries.
3. PLC

Ensuring high accuracy and easy to operate!

Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.

4. OEM / ODM

Customers’design, color & logo are also accepted!

Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.
5. One-Years warranty, whole life service

Keep troubles far away from you!

Within the One-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems .

5 package and loadng

A.Need one 40ft container.

B.Main body of machine fixed to container by 8mm diameter steel wire, rollers and shaft is covered

with anti-rust oil.

C.Spare parts in carton box.

Roof Tile / Roofing Sheet Roll Forming Machine Metal Deck Roll Forming Machine

Roof Tile / Roofing Sheet Roll Forming Machine Metal Deck Roll Forming MachineRoof Tile / Roofing Sheet Roll Forming Machine Metal Deck Roll Forming Machine
