Furring Stud And Track Roll Forming Machine With 20mm Thickness Middle Plate
Furring Stud And Track Roll Forming Machine With 20mm Thickness Middle Plate
Furring Stud And Track Roll Forming Machine With 20mm Thickness Middle Plate
Furring Stud And Track Roll Forming Machine With 20mm Thickness Middle Plate
Furring Stud And Track Roll Forming Machine With 20mm Thickness Middle Plate
Furring Stud And Track Roll Forming Machine With 20mm Thickness Middle Plate
Furring Stud And Track Roll Forming Machine With 20mm Thickness Middle Plate
Furring Stud And Track Roll Forming Machine With 20mm Thickness Middle Plate
Specifications
Brand Name :
MST
Model Number :
100*50/90 50
Certification :
CE SGS
Place of Origin :
China
MOQ :
1 sets
Price :
USD 12800 -13800
Supply Ability :
30 sets per month
Delivery Time :
30 working days
Packaging Details :
packaged with film cover
Material :
Steel strip
Forming stations :
14
diameter of shaft :
50mm
Material of blade :
CR12
speed :
40m/min
profiles :
two sections
thickness :
0.32mm-0.45mm
power :
5.5kw +4kw
Description

Furring stud and track channel cold roll forming machine with 20mm thickness middle plate

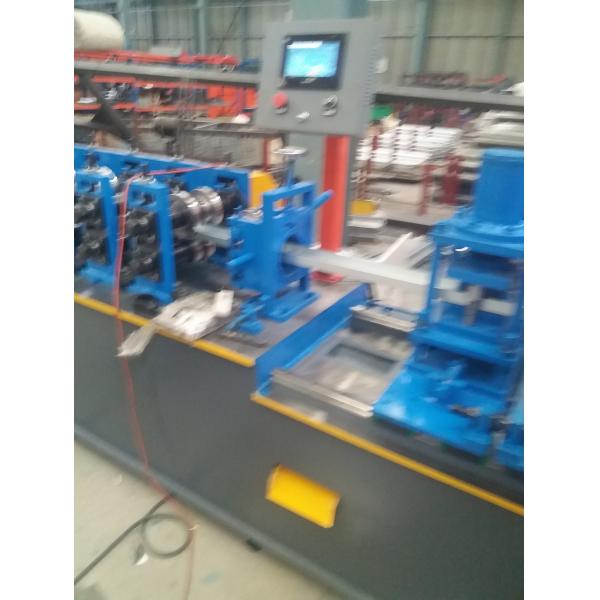

Reference pictures

Furring Stud And Track Roll Forming Machine With 20mm Thickness Middle PlateFurring Stud And Track Roll Forming Machine With 20mm Thickness Middle Plate

APPLICATION:
Light Steel Framing Machine is designed as light steel frame manufacturing plants. With high throughput, reliability, ease of maintenance, simple operation and a focus on design, these new integrated manufacturing plants deliver high productivity, high quality and accurate output.

1:Our advantageous:

1): Factory direct supply price.

2): We have exported for more than 10 years.

3): Our customer are from about 40 countries.

4): We have the professional research team. We can make the machine according to your requirement.

5): High-end and high-grade design

EQUIPMENT LIST:
1. Hydraulic Decoiler with Breaking device is equipped for coil processing.
2. Rollformer with tooling
3. Hydraulic cut-off machine
4. Run Out Table or automatic stacking device
5.PLC and Touchable Screen are used for data processing and setting.
6. Roll forming speed is 8-12 meter / minute.

Technical parameters:
1 Name of commodity & specification
Furring stud and track channel cold roll forming machine with 20mm thickness middle plateud cd uw cw profiles

2		 Main motor power 5.5kw, 3 phase
3 Hydraulic motor power 4kw
4 Hydraulic Pressure 10-12MPa
5 Voltage 380V /3phase/ 50 HZ (or as your requirement)
6 Control System PLC Delta Inverter
7 Main Frame welded steel plate
8 Backboard Thickness 20mm
9 Driving of machine gear box and chain driving
10 Feeding Material color steel coils
11 Feeding Thickness 0.3-0.45mm
12 Feeding Width 90
13 Effective width according to your request
14 Productivity 0-25m/min
15 Roll Station 10
16 Roller Diameter 50mm
17 Roller material 45# steel
18 Cutter material Cr12 , quenched
19 Cr-Plating Size 0.05mm
20 Overall Size 3600×900×1200mm
21 Total Weight 2.7T
22 Components Manual Uncoiler-------------------1 set
Guiding Platform------------------1 set
Coil Strip Leveler------------------1 set
Main Machine of Roll Forming------1 set
Electric-Motor---------------------1 set
Cutting Device--------------------1 set
Hydraulic Station------------------1 set
PLC Control-----------------------1 set
Supporter Table-------------------1 set
23 Workflow Manual decoiling----feeding and guiding----roll forming----cut to length----run out table
24 Package nude in the container
25 Minimum order quantity 1 set
26 Payment terms T/T(30% T/T pay in advance, the remaining 70% pay before ship)
27 Delivery time 30 working days later after receiving the deposit
All technical parameters can be changed, according to user's need.

Parameters:

NO Main parameter of metal sheet rolling machine
1 Suitable to process Color steel plate
2 Rollers 13-20 PASS
3 Dimensions 5.5*1*1.5M
4 Power 5.5+4kw
5 Thickness of the plate 0.3-0.8mm
6 Productivity 20-30m/min
7 Diameter of the roller Φ60mm
8 Weight About 2.5T
9 Voltage 380V 50Hz 3phases
10 Material of the cutting plate Cr12
11 Hydraulic 40#
12 Control system Panasonnic PLC control
