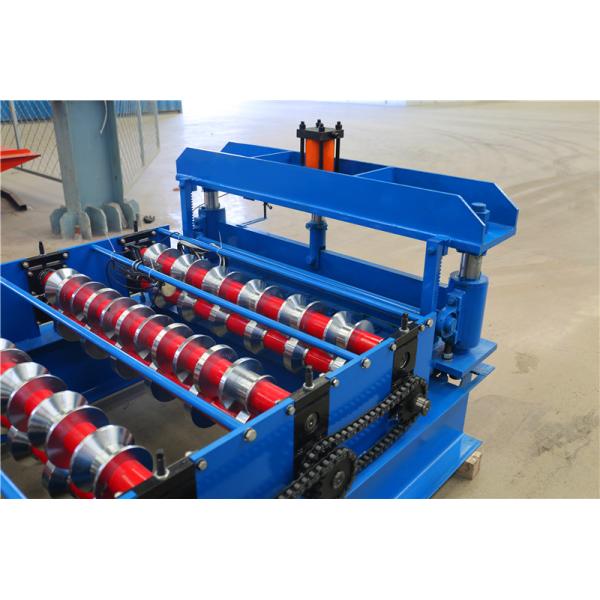

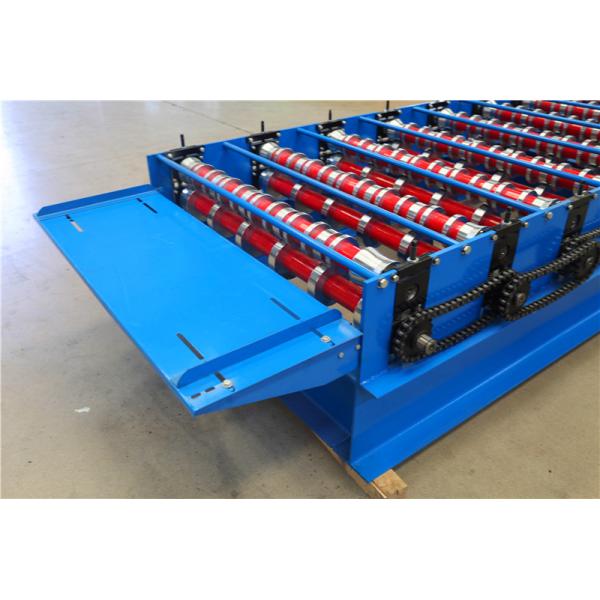

16 Stations Metal Sheet Roll Forming Machine For Roof And Wall Profile With Cut To Length
16 Stations Metal Sheet Roll Forming Machine For Roof And Wall Profile With Cut To Length
16 Stations Metal Sheet Roll Forming Machine For Roof And Wall Profile With Cut To Length
16 Stations Metal Sheet Roll Forming Machine For Roof And Wall Profile With Cut To Length
16 Stations Metal Sheet Roll Forming Machine For Roof And Wall Profile With Cut To Length
16 Stations Metal Sheet Roll Forming Machine For Roof And Wall Profile With Cut To Length
16 Stations Metal Sheet Roll Forming Machine For Roof And Wall Profile With Cut To Length
16 Stations Metal Sheet Roll Forming Machine For Roof And Wall Profile With Cut To Length
Specifications
Brand Name :
MST
Model Number :
MST28-250-1000
Certification :
CE/SGS/ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$ 8500-13000/set
Supply Ability :
100 sets/months
Delivery Time :
25 working days
Packaging Details :
Water proof plastic film cover
Forming speed :
10-15m/min
Cylinda :
hydraulic
cutting :
hydraulic cutting
Middle plate :
16mm
Chains :
doube 0.6 inch
Control system :
Computer control
Cutting device :
hydraulic control
Main motor :
5.5kw
Description

roll forming machine for roof and wall profile with cut to length automatically control

16 Stations Metal Sheet Roll Forming Machine For Roof And Wall Profile With Cut To Length16 Stations Metal Sheet Roll Forming Machine For Roof And Wall Profile With Cut To Length16 Stations Metal Sheet Roll Forming Machine For Roof And Wall Profile With Cut To Length

The Technical Parameters:

Coil Material

 Thickness 0.3-0.8mm
Coil width Custom-made
Yield Strength 235Mpa
Material Q235/Galvanized steel/Aluminum plate
Decoiler / Uncoiler Coil Width Max. 1250mm
I.D 480-510mm
O.D Max. 1200mm
Roll Forming Machine Forming stations Depend on Profiles

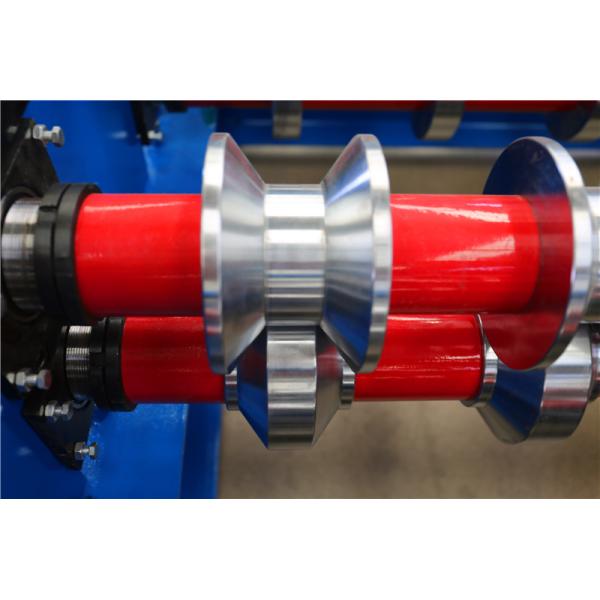

Roller material SKD11 or Cr12Mov or Cr12 or Cr15
Diameter of shaft φ40-100mm
Shaft material High grade 45# steel
Drive type chains drive
Forming speed 10-15m/min
Main power Depending on the machine
Cutting Cutting type Hydraulic cutting or Flying saw cutting
Cutting Tolerance 10m+/-0.5mm
Encoder OMRON Brand
Electrical control PLC Delta Brand or Custom-made
Inverter Delta Brand or Custom-made
Touch screen Delta Brand or Custom-made
Operation type Touch screen & Button
Runout Table Table type Simple nonpower type
Function To support the finished panels

Flow chart

16 Stations Metal Sheet Roll Forming Machine For Roof And Wall Profile With Cut To Length

Standard Equipment of Machine:

Uncoiler 1 set
Guiding Equipment 1 set
Roll Forming Equipment 1 set
Post Cut Equipment 1 set
Hydraulic Station 1 pc
PLC Control 1 pc
Supporter Table 2 pc

Description:

This model of machine is widely used in Africa and middle east.The feeding width is 1250mm,and cover width

is 1000 mm,it is perfectly overlapped.Save material and out look is beautiful.

Its popular model in Iraq ,iran and other middle east country.

Competitive Advantage:

1. save space

2. easy installation

3. perfect service

4. excellent quality

5. Operate easily
