High Speed Diameter 508mm Hydraulic Decoiler For 1250mm Width Coil
High Speed Diameter 508mm Hydraulic Decoiler For 1250mm Width Coil
High Speed Diameter 508mm Hydraulic Decoiler For 1250mm Width Coil
High Speed Diameter 508mm Hydraulic Decoiler For 1250mm Width Coil
High Speed Diameter 508mm Hydraulic Decoiler For 1250mm Width Coil
High Speed Diameter 508mm Hydraulic Decoiler For 1250mm Width Coil
High Speed Diameter 508mm Hydraulic Decoiler For 1250mm Width Coil
High Speed Diameter 508mm Hydraulic Decoiler For 1250mm Width Coil
Specifications
Brand Name :
ZHONGHENG
Model Number :
ZH 5T/8t/10T
Certification :
CE/SGS/ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$5000-15000/set
Supply Ability :
60 sets/months
Delivery Time :
30 working days
Packaging Details :
packaged by waterproof plastic film cover
Coil Width :
1000 mm / 1200 mm / 1250mm
Coilcar :
Optional
Material :
PPGI/GI/PPGL
Speed :
10-15m /min
Aftersale service :
Engineer available
Motor :
5.5kw
Description

Diameter 508mm hydraulic decoiler for 1250mm width coil

High Speed Diameter 508mm Hydraulic Decoiler For 1250mm Width Coil

Description:

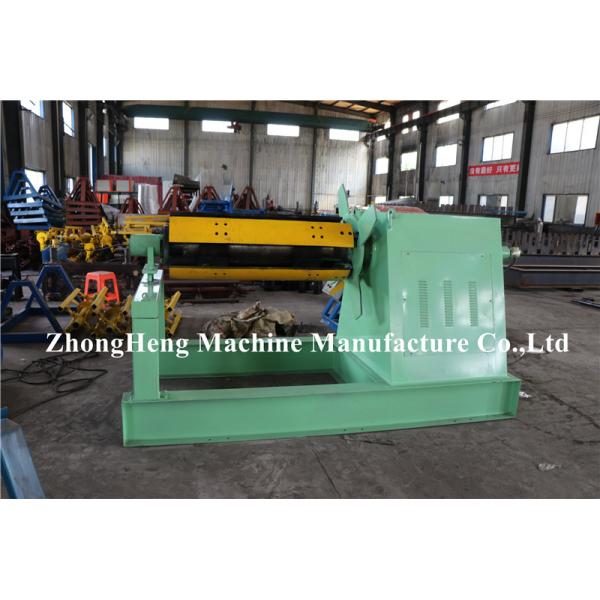

The hydraulic decoiler is a heavy machine help to feeding the coil into roll forming machine. The customer only use the forklift to lift the coils on the coilcar,the machine will upload the coils in to the decoiler automatically.The uncoiler consists of the moving dolly,uncoiler with pressing arm, frame with lead rail, and hydraulic system.The moving dolly can be lifted,move on the lead rail , carry the coil to the uncoiler,the leafs of the uncoiler expanse , the coil be fixed on the uncoiler,main axis of the uncoiler rotate , the coil sheet comes out. After the coil sheet feed into the roll forming machine, the coil sheet will be pulled back to minimize the pendant.

Coil specifications

Model MT-200 MT-300 MT-400 MT-500 MT-600 MT-700 MT-800 MT-1000 MT-1300 MT-1600
Material Width 200 300 400 500 600 700 800 1000 1300 1600
Material Thickness 2 2 2 2 2 2 2 2 2
Material I. D 450-530 450-530 450-530 450-530 450-530 450-530 450-530 450-530 450-600 450-600
Material O. D 1200
Material Weight (kg) 500 800 1000 2000 2000 3000 3000 3000 3000 3000
Speed of feed(m/min) 15 15 15 15 15 15 15 15 15
Coil Expansion MANUAL
Motor(HP) ½ 1 2 2 3 3 5 5 7.5

Specifications

Single unrolling machine
one side can put material
Adopt automatic hydraulic system for expand
Coil weight (Max)
5000kg
Inter diameter
460mm-560mm
Maximal out diameter
1250mm
Oil cylinder dia
120mm
Coil width (Max.)
1250mm
Working speed
0-15m/min adjustable
Main motor power
5.5KW AC motor
Hydraulic power
4kw
Frequency converter brand
Yaskawa
De-coiler should be with Loop control and hold down, and with baffle for forbid coil fall down
Machine have function of forward and reverse working
The decoiler has 3 segments
Color
blue or base on customer request
Quantity
1

Details of coilcar

Coil weight (Max)
5000kg
Inter diameter of coil
480mm-560mm
Working by hydraulic pressure
8-12Mpa with connect with the decoiler hydraulic unit
Working lift journey
Maximal 250mm
Working function
forward and reverse movable
Move journey
maximal 3 meters
Color
blue or base on customer request
Quantity
1

Competitive Advantage:

  1. Low Noisy
  2. Fully automatic
  3. Save Labours
  4. Big production
  5. High speed

High Speed Diameter 508mm Hydraulic Decoiler For 1250mm Width Coil
