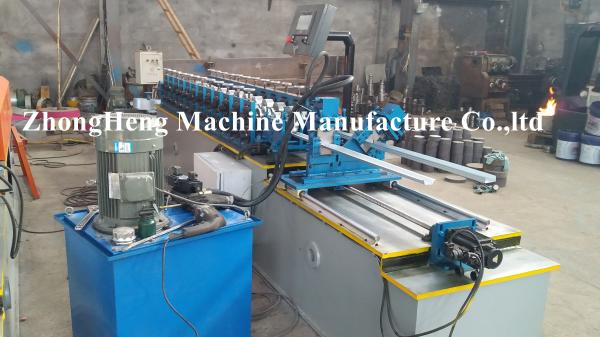

C And U Light Guage Stud And Track Cold Roll Forming Machine For 0.3mm Thickness Metal
C And U Light Guage Stud And Track Cold Roll Forming Machine For 0.3mm Thickness Metal
C And U Light Guage Stud And Track Cold Roll Forming Machine For 0.3mm Thickness Metal
C And U Light Guage Stud And Track Cold Roll Forming Machine For 0.3mm Thickness Metal
C And U Light Guage Stud And Track Cold Roll Forming Machine For 0.3mm Thickness Metal
C And U Light Guage Stud And Track Cold Roll Forming Machine For 0.3mm Thickness Metal
C And U Light Guage Stud And Track Cold Roll Forming Machine For 0.3mm Thickness Metal
C And U Light Guage Stud And Track Cold Roll Forming Machine For 0.3mm Thickness Metal
Specifications
Brand Name :
ZHONGHENG
Model Number :
ZH100*50/90850
Certification :
CE SGS
Place of Origin :
China
MOQ :
1 sets
Price :
USD 18000-26000
Supply Ability :
30 sets per month
Delivery Time :
30 working days
Packaging Details :
packaged with film cover
Material :
Steel strip
Motor :
4+4kw+1.5+1.5kw
cutting device :
none stop cutting device
diameter of shaft :
40mm
speed :
40m/min
profiles :
two sections
Computer :
two
Description

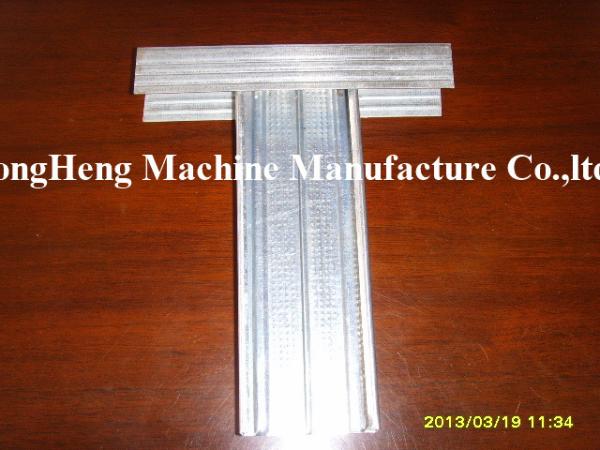

c and U light guage stud and track forming machine for 0.3mm thickness metal
C And U Light Guage Stud And Track Cold Roll Forming Machine For 0.3mm Thickness MetalC And U Light Guage Stud And Track Cold Roll Forming Machine For 0.3mm Thickness Metal

1.

Power
requirement

Type380v/3ph/50hz
Main Motor power4kw+4kw
Cutter powerDouble 4kw with servo motor
2.Forming speed(m/min)40-45m/min maxNot include the time of cutting

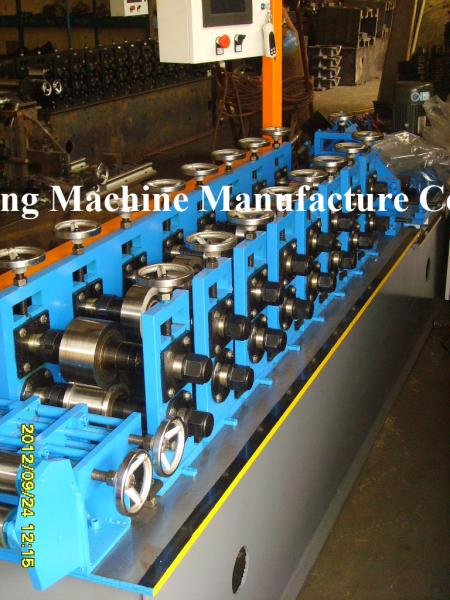

3.Forming stations12stations
5.Material of rollersCR12
6.Thickness of structure30mm
7Forming shaft diameter(mm)40
8DriveGear box

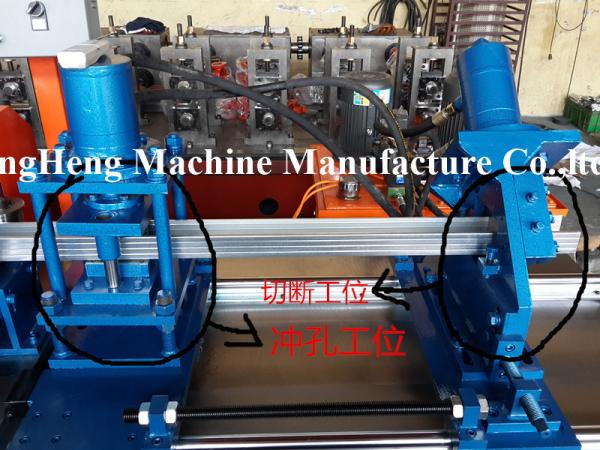

9Type of cuttingHydraulic cutting
10.Control systemPLC taida
11.Install dimension(depend on the final design)3.8m×0.6m×1.2mWithout panel length
12.Total weight (Approx)2.3TDepend on final design
13.ScreenText screen /touch screen


Parameters:

NOMain parameter of metal sheet rolling machine
1Suitable to processColor steel plate
2Rollers13-20 PASS
3Dimensions5.5*1*1.5M
4Power5.5+4kw
5Thickness of the plate0.3-0.8mm
6Productivity20-30m/min
7Diameter of the rollerΦ60mm
8WeightAbout 2.5T
9Voltage380V 50Hz 3phases
10Material of the cutting plateCr12
11Hydraulic40#
12Control systemPanasonnic PLC control


Contact us

Contact Us
shirly zhang
CompanyCANGZHOU ZHONGHENG MACHINE MANUFACTURE CO.,LTD
Address

No 104 national Road, Botou City, Hebei,
China

WhatsApp0086-15133711731
Email

shirlyrollformingmachine@aliyun.com
