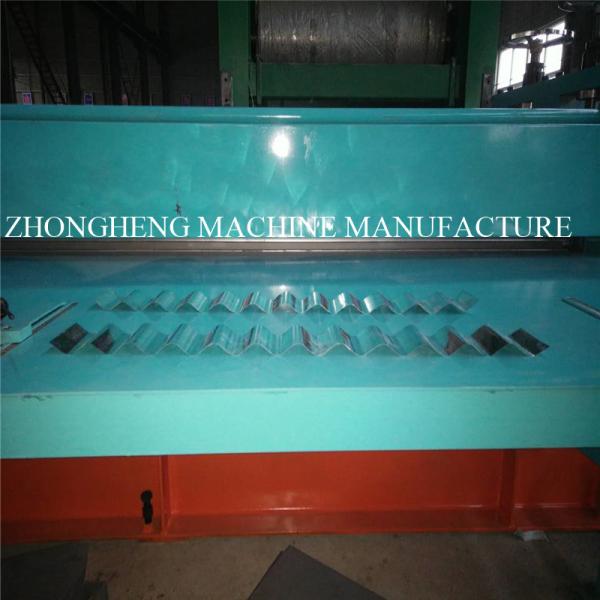

11 Kw Barrel Corrugated Roof Tile Machine , Corrugated Roll Forming Machine
11 Kw Barrel Corrugated Roof Tile Machine , Corrugated Roll Forming Machine
11 Kw Barrel Corrugated Roof Tile Machine , Corrugated Roll Forming Machine
11 Kw Barrel Corrugated Roof Tile Machine , Corrugated Roll Forming Machine
11 Kw Barrel Corrugated Roof Tile Machine , Corrugated Roll Forming Machine
11 Kw Barrel Corrugated Roof Tile Machine , Corrugated Roll Forming Machine
11 Kw Barrel Corrugated Roof Tile Machine , Corrugated Roll Forming Machine
11 Kw Barrel Corrugated Roof Tile Machine , Corrugated Roll Forming Machine
11 Kw Barrel Corrugated Roof Tile Machine , Corrugated Roll Forming Machine
11 Kw Barrel Corrugated Roof Tile Machine , Corrugated Roll Forming Machine
Specifications
Brand Name :
ZHONGHENG
Model Number :
ZH18-76
Certification :
CE/SGS/ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$ 32000-42000/set
Supply Ability :
100 sets/months
Delivery Time :
25 working days
Packaging Details :
Water proof plastic film cover
Condition :
New
Feeding width :
1000mm / 914mm / 950mm / 1200mm
Suitable material :
PPGI / GI
Use :
Roof
Warranty :
2 years
Thickness range :
0.18mm-0.28mm
weight :
7.5t
Description

Thin material Barrel Corrugation Machine with 11 kw motor control for Nigeria

11 Kw Barrel Corrugated Roof Tile Machine , Corrugated Roll Forming Machine

Description:

This kind of corrugated sheet forming machine is different model from the normal corrugated sheet forming machine, it is specially produce the thickness 0.18mm-0.28mm galvanized steel, it has 3.2meters, 4meters,6meters three types. Its formed by pieces of sheet not coils.

Specification

Barrel Corrugated Roof Tile Machine

Techincal Parameters

Suitable Material

Full Hard, Semi-hard, Soft Galvanised Sheets, Alu-zinc Alloy & PPGI Sheet

Material Length

2500/3000/3660/4267 mm

Material Width

762/914/1000 mm to 1250mm

Material Thickness

0.15-0.45 mm

Drive

22KW, AC For Type A 3 Phase

O.D of Corrugation Rolls

380 mm (20mm Diameter Rod )

O.D of Pinch Rolls

317 mm

Corrugation Parameters

As per 3316 to Jis-Sgch-1987

WT. of the machine

6 tones Approx

Production Capacity

1.5-1.8 meter per minnute

Applications:

The tiles produced by this Popular Type Corrugated Colored Steel Cold Forming Machine are widely used in

all kinds of factories, houses, warehouses and simple steel shed, and with beautiful appearance, high efficiency

and reliable working. It consists of feeding platform, main molding core, shearing mechanism, hydraulic

station, computer control cabinet, high precision counter and so on.

Competitive Advantage:

1. save space

2. easy installation

3. best after-sale service

4. excellent quality

5. Operate easily

Welcome to make order

Whatsapp number:008615133711731
