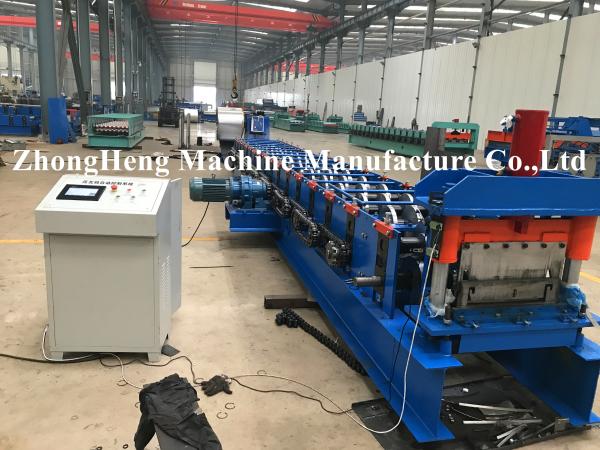

Hidden Joint Roofing Sheet Roll Forming Machine For 1mm Thickness Cold Rolled Galvanized Steel
Hidden Joint Roofing Sheet Roll Forming Machine For 1mm Thickness Cold Rolled Galvanized Steel
Hidden Joint Roofing Sheet Roll Forming Machine For 1mm Thickness Cold Rolled Galvanized Steel
Hidden Joint Roofing Sheet Roll Forming Machine For 1mm Thickness Cold Rolled Galvanized Steel
Hidden Joint Roofing Sheet Roll Forming Machine For 1mm Thickness Cold Rolled Galvanized Steel
Hidden Joint Roofing Sheet Roll Forming Machine For 1mm Thickness Cold Rolled Galvanized Steel
Hidden Joint Roofing Sheet Roll Forming Machine For 1mm Thickness Cold Rolled Galvanized Steel
Hidden Joint Roofing Sheet Roll Forming Machine For 1mm Thickness Cold Rolled Galvanized Steel
Specifications
Brand Name :
ZHONGHENG
Model Number :
ZH406
Certification :
ce/sgs
Place of Origin :
China
MOQ :
1 set
Price :
USD14,000-32000
Supply Ability :
30 sets /month
Delivery Time :
25 working days
Packaging Details :
plastic film cover
Material :
cold steel
Diameter of the shaft :
80mm solid
Speed :
10-15m/min
Chains :
double 0.6 inch
Decoiler :
5 ton electric decoiler
Stacker :
10 meters stacker
thickness :
1mm
stations :
18
Description

Hidden Joint roofing sheet roll forming machine for 1mm thickness cold rolled galvanized steel

(1). Brief Introduction

The Hidden Joint roofing sheet roll forming machine for 1mm thickness cold rolled galvanized steel have beautiful appearance and bright color.

They are widely used in the roofing of gardens, factories, resorts, hotels, it is usually used in American market.

(2). Working Flow of Roll Forming Machine

Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter

(3).Technical Detail

A. General

Suitable Material Q235 or equivalent
Material Thickness1 mm
Material Width 406mm, as per the drawing
Dimension About8.9*1.3*1.1m(L*W*H) , as per the drawing
Working Space About 15.9*2.8m(L*W) , as per the drawing

Length of

the Sheet

You can set the length according to your need.

It is controlled by PLC

which can ensure the accuracy of ±1mm.
Cutting

Automatically stop and cutting when it comes to the set

length.

B. Components Details

Roller Material High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame 350# steel. More stable and no shaking.
Middle Plate

16mm. We use thicker plates to ensure stability

of our products.
Forming Steps 18, according to the drawing.
Shaft Material Φ75 mm, high grade 45# steel.

Treating process: tempering- finish turning,

high rigidity, hard to deform.

Cutting

Blade Material

 Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting.

C. Electric Components

Suitable Power 380V, 50 Hz, 3 phase or according to your need.
Screen 7 inch touch screen, easy to operate.
PLC Delta DVP 14ES

well-adapted to various conditions, such as moisture,

electromagnetic disturbance.
Frequency Converter

DeltaVFD- M. It has the advantage of slowing down before cutting,

to ensure the length accuracy (±1mm,

far better than industrial standard ±3mm).

Length

Measurement Device

 Omron, made in Japan.
It features with high accuracy and stability.
3. The Application

This type of roofing has advantage inclouding beautiful, classical appearance and grace taste.

It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate

4 package and loadng

A.Need one 40ft container.

B.Main body of machine fixed to container by 8mm diameter steel wire, rollers and shaft is covered

with anti-rust oil.

C.Spare parts in carton box.
