High Pecision Metal Sheet Slitting Machine Steel Coil Slitting Line Machinery Equipment

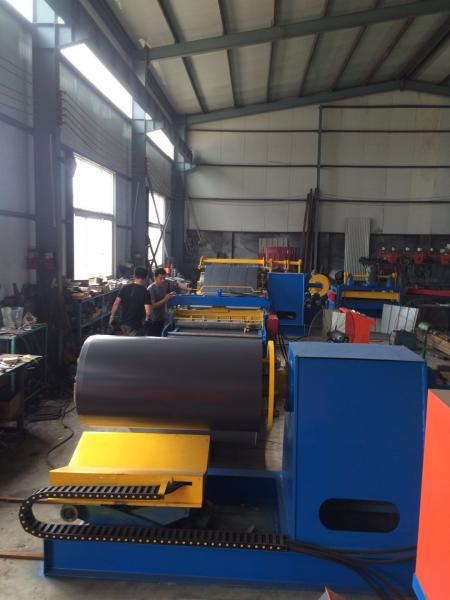

From left to right, they are : entry coil car + decoiler -press and pinch device + leveling machine -looper + lifting bridges- side guide device + servo straightening machine-high speed cutter-transition table-pneumatic piling device+ x-shaped lifting table + exit sheet car-Hydraulic and electrical control system

Machine pictures

Specifications

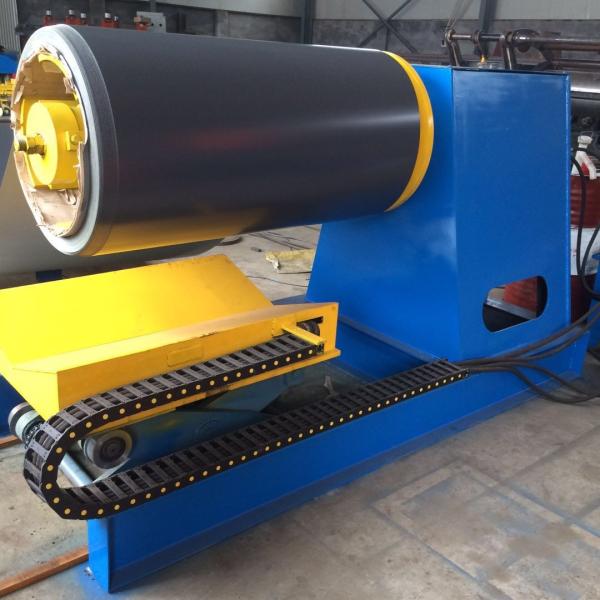

A. 5Tons electric decoiler machine

1. Main frame : 160mm Channel Steel to weld
2. Dia of shaft : 95mm
3. Power of motor : 3kw
5. Chain : 31.75mm
6. Bearing : 6312
7. Appearance size : (Length)1840mmX(Width)1000mmX(Height)1200mm
8. To support and uncoil the steel coil
9. Tenses the coil by Electric power, it is convenient for the workers to operate
10. The inner coil diameter : φ450-550mm
11. Max outer coil diameter : φ1000mm
12. The max capacity : 5.5T

B. Guide Leveling device
7 rollers, 3 for up, four for down
Leveling rollers diameter:56¢
Material of rollers: ASTM 1045 with chrome

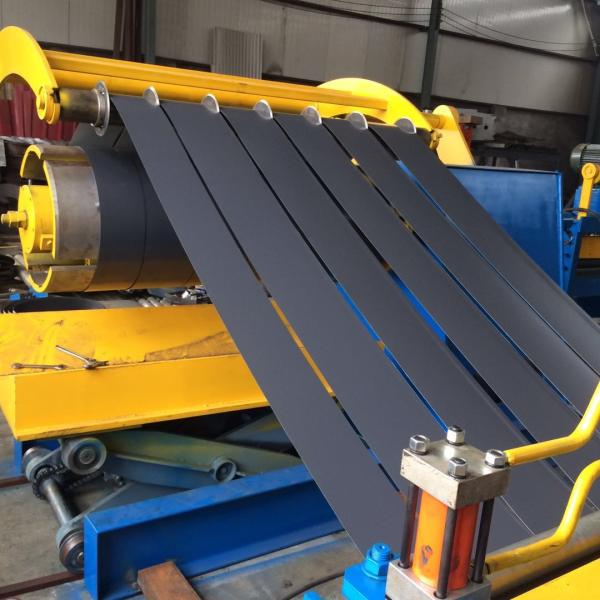

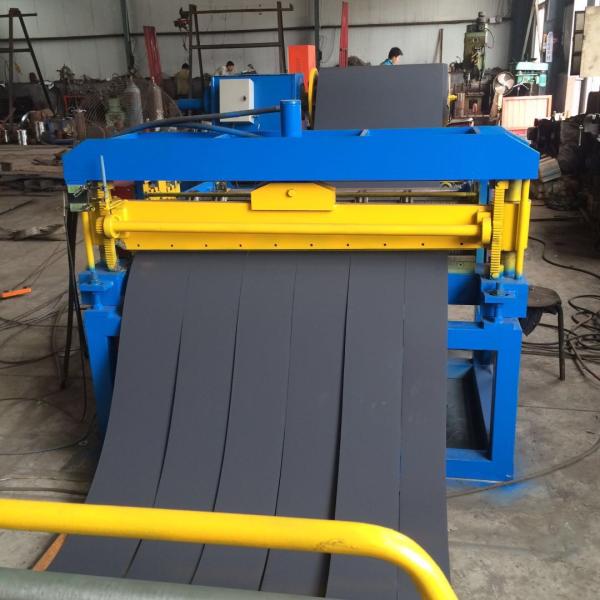

C. Slitting device
Slitting speed: 0-15mm/min
Driving motor: 5.5KW
Slitting shaft diameter: 100mm
Slitting blade: 9 pieces
Max slitting pieces: 10pieces
Min slitting width: 50mm
Width tolerance:±0.5mm
Slitting blade material: Cr12 with heat treatment
Pinching station: 2 stations

D.Cut to length device
Cutting thickness:0.17—0.5mm
Cutting length:500-4000mm
Cutting speed: 4-5pcs/min (2000mm per pc)
Cutting width:less than 1250mm
Cutting speed:4-5pcs/min (2000mm per pc)
Cutting station power: 5.5Kw.
Width tolerance:±0.5mm per pc
This part is with one of 2 meters out table for take the cut pieces

E .Extension device
Which is in front of re-coiler and mounted with re-coiler together, it extension the sheet so can wind a tight coil; also it has partition to divide the sheet separately.

Color: Blue (or base on customer request)

Quantity: 1

F. Waste selvage device
This is composed of frame, waste selvage axle, waste selvage tray, friction wheel, accompany of strap wheel,strap

G.Recoiler
This is composed of frame, big bearing-stand, recoiling axle, recoiling expansion device, expansion recoiling plate
