Specifications
Brand Name :
ZH
Model Number :
ZH-1300
Certification :
CE
Place of Origin :
Hebei , China
MOQ :
1 set
Price :
USD12500-16500
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
40 days
Packaging Details :
One set machine needs one 40GP for shipment , PLC system packed with Carton box .
Type :
1mm thickness cut to length machine with slitting
Feature :
Advanced design
Special :
Fast speed
Power :
7.5KW
Volgate :
380V or custom
Roller :
Cr12 heat treatment
Warranty :
1 year free
Service :
Whole life
After-sales service provided :
Engineers available to service machinery overseas
Application :
The steel coil for longitudinal cutting,steel coil cutting to length
Voltage :
380/415/420V etc
Description

1mm thickness cut to length machine with slitting

1mm thickness cut to length machine with slitting steel coil slitting line

Our 1mm thickness cut to length machine with slitting can work 0.15mm up to 1mm thickness Galvanized steel coils and Prepainted steel coils .It is with slitting function to slitte the coils to strips.Maximal width 1300mm. Depend on customers' request.

Also used in light gauge steel villa and welding pipe industires .

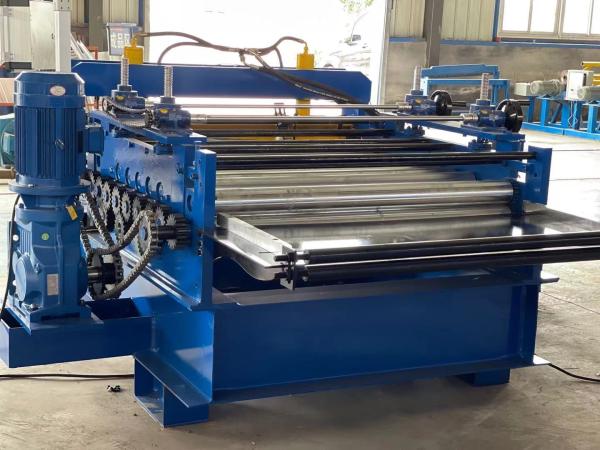

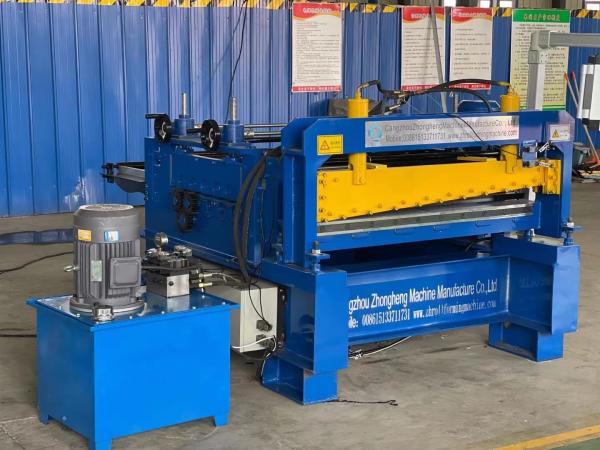

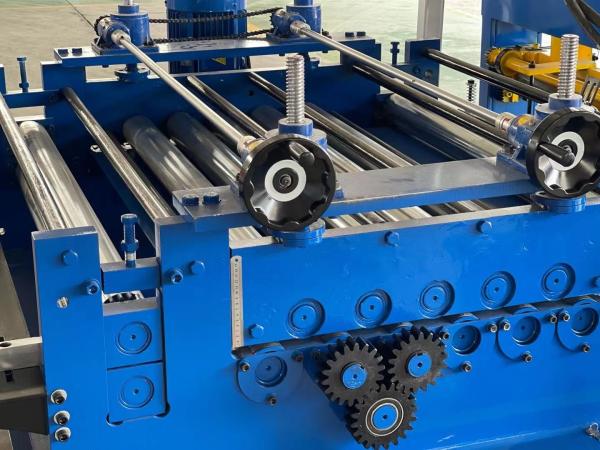

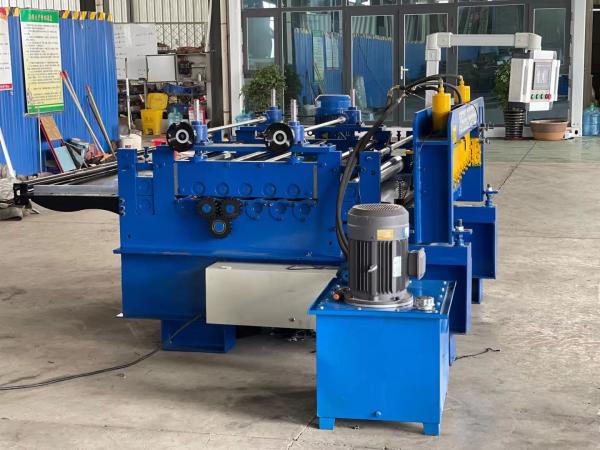

Machine pictures

1mm thickness cut to length machine with slitting steel coil slitting line

Features of Automatic steel sheet coil cut to length machine line:

• This line is suitable for thick coils or where production rate is less.

• This line uses Encoder for sheet length measurement.

• The range varies from 1000 mm - 2500 mm coil width & 1.6 - 25 mm thickness.

• Hardened & grounded plate material is used.

• Fully automatic line requires only 2 operators.

• Less scrap.

Specifications

Width of the panel: 1250mm
The diameter of the shaft: 95mm with hard chroming treatment ,cnc processing and milling
Shaft material 40Cr
Thickness of raw material: 2mm
Thickness of the middle panel: 40mm
Control system: PLC control

Roller shaft:

Upper 6 rows

Bottom 7 rows
Main machine structure 500 H steel with 16mm thickness plate CNC milling
Slitting shaft diameter 150mm
Line speed: 0-30m/min
Main power 7.5kw
Cutter Cut to length motor control
Accurate +-1mm
Material of blade Cr12mov with hard heat treatment 55-62 degree
Bearing High speed motor bearing
Transmit Gear
Hydraulic power 5.5KW
Color White and gray

Loading picture

1mm thickness cut to length machine with slitting steel coil slitting line

More machines

1mm thickness cut to length machine with slitting steel coil slitting line
