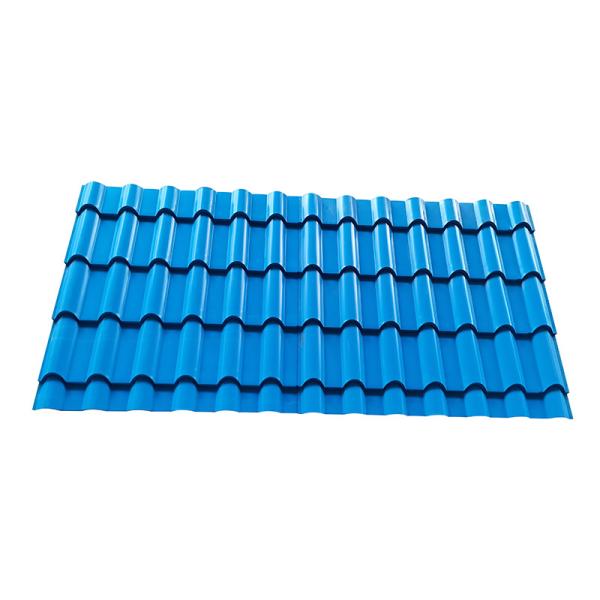

High Speed Glazed Step Tile Sheet Roofing Roll Forming Making Machine Metcoppo Steptiles Wall Panel Machine Construction
High Speed Glazed Step Tile Sheet Roofing Roll Forming Making Machine Metcoppo Steptiles Wall Panel Machine Construction
High Speed Glazed Step Tile Sheet Roofing Roll Forming Making Machine Metcoppo Steptiles Wall Panel Machine Construction
High Speed Glazed Step Tile Sheet Roofing Roll Forming Making Machine Metcoppo Steptiles Wall Panel Machine Construction
High Speed Glazed Step Tile Sheet Roofing Roll Forming Making Machine Metcoppo Steptiles Wall Panel Machine Construction
High Speed Glazed Step Tile Sheet Roofing Roll Forming Making Machine Metcoppo Steptiles Wall Panel Machine Construction
High Speed Glazed Step Tile Sheet Roofing Roll Forming Making Machine Metcoppo Steptiles Wall Panel Machine Construction
High Speed Glazed Step Tile Sheet Roofing Roll Forming Making Machine Metcoppo Steptiles Wall Panel Machine Construction
High Speed Glazed Step Tile Sheet Roofing Roll Forming Making Machine Metcoppo Steptiles Wall Panel Machine Construction
High Speed Glazed Step Tile Sheet Roofing Roll Forming Making Machine Metcoppo Steptiles Wall Panel Machine Construction
Specifications
Brand Name :
ZHONGHENG
Model Number :
ZH 960
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
22,000 USD
Payment Terms :
L/C, T/T
Supply Ability :
50 sets /month
Delivery Time :
40 working days
Packaging Details :
with plastic film cover
Material width :
1200mm
Material :
PPGI ,Aluninum,Gi
Motor :
7.5kw
Pump motor :
5.5kw
Forming Stations :
15
Description

High Speed Glazed Step Tile Sheet Roofing Roll Forming Making Machine Metcoppo Steptiles Wall Panel Machine Construction Machinery Ibr Corrugating Machinery

High Speed Glazed Step Tile Sheet Roofing Roll Forming Making Machine Metcoppo Steptiles Wall Panel Machine Construction

Specifications

1

Power Requirement

 Voltage 380v/3ph/50hz
Main Motor power 7.5kw hydraulic motor
2 Forming speed 8-15m/min
3 Forming stations 15
4 Thickness of structure 16mm
5 Forming shaft diameter 75mm
6 Chains 1 inch
7 H steel 350mm
8 Sleeve galvanized pipe with color coating
9 Screen Text screen /touch screen
10 Type of cutting Roll formed and length-set cutting
9. Control system PLC Delta and Inveter Delta
10. Install dimension(depend on the final design) 8.2m×1.5m×1.2m
11. Total weight (Approx) 6.5T

Machine pictures

High Speed Glazed Step Tile Sheet Roofing Roll Forming Making Machine Metcoppo Steptiles Wall Panel Machine ConstructionHigh Speed Glazed Step Tile Sheet Roofing Roll Forming Making Machine Metcoppo Steptiles Wall Panel Machine ConstructionHigh Speed Glazed Step Tile Sheet Roofing Roll Forming Making Machine Metcoppo Steptiles Wall Panel Machine Construction

Components of line

1) Manual De-coiler ------------------------------------------------------ 1 set

2) Guiding Device--------------------------------------------------------- 1 set

3) Roll Forming System--------------------------------------------------- 1set

4) Cutting Device---------------------------------------------------------- 1set

5) Hydraulic System------------------------------------------------------- 1 set

6) PLC Control System-----------------------------------------------------1 set

7) Run out table ----------------------------------------------------------- 1 set

Spare parts list

No. Item Qty
1 Limited switch 2
2 Chains 1
3 Value 1
4 Relay 1
5 Chains Joint 2
6 Encoder wheels 2
