Single Shaft Magnetic Powder Brake Rated Torque 200NM Speed 1000rpm/s For Face Mask Machine

Single Shaft Magnetic Powder Brake Rated Torque 200NM Speed 1000rpm/s

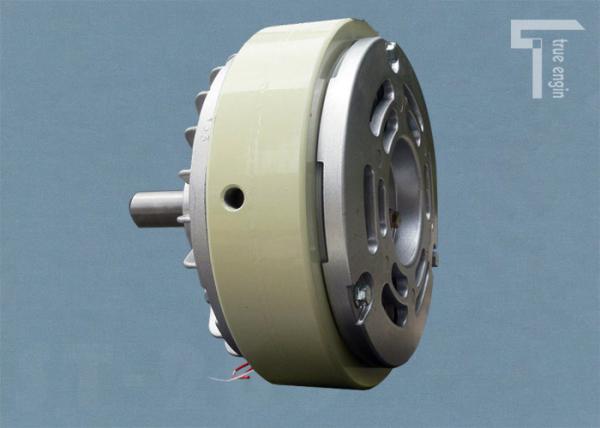

Single axis magnetic powder brake
Single-axle brake is a superior performance of automatic control components, it is driven by the drive unit and the unit merged. It powder as the working medium to excitation current control means to control the brake or transmission of torque. Its output torque and magnetizing current good linear relationship, and with fast response, simple structure, making it suitable for wire, cable, printing, packaging, textiles, rubber, leather, metal foil tape processing, paper and paper processing Tension Control System and other relevant coiling device.

Used for braking of printing machine, compound machine, cutting machine, pouch machine and lamination machine and so on.

1,Application:
Magnetic powder brake is widely used in packaging machines, printing presses, slitting machine, paper machinery, textile machines and other transmission equipment.


2.Remarks:
(1): The formal installation method (high-speed rotating side as the input side) to use magnetic powder clutch.
(2): Please note that the moisture. Magnetic particle moisture, the performance will become unstable, so be especially careful not to let the oil or moisture intrusion internal.
(3): Please note that the surface temperature.

Notes
Don’t overload, meanwhile cool to appropriate temperature

The value of the torque/rotational speed/slip power should be less than the rated value, The cooling model(natural cooling. forced air cooling/water cooling)should depend on the maximum slip power when it works and the cooling air should filter the water and oil. The temperature detector and the alarm device should be installed to prevent high temperature which can affect the service life of the magnetic powder.(the highest temperature is 80 degree)

The life of the magnetic powder clutch and brake rely on the life of the magnetic powder. Generally speaking, its service life is 4500-7500 hours in the state of non overloaded, but its service life can extend several times in some cases, such as: the working torque of the magnetic powder clutch/brake, relative slip rotational speed and slip power can be reduced to 50%-70% of the rated value. This is to say, the margin can be enlarged as soon as possible when designing.


Concerning the torque
After the magnetic powder clutch and brake working, the magnetic powder will be in grinding at the beginning which lead to the torque decreasing slightly, but the gap can be compensated through adjustment the current.
