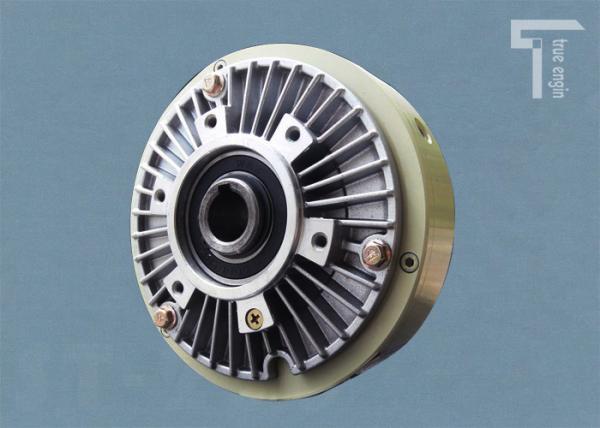

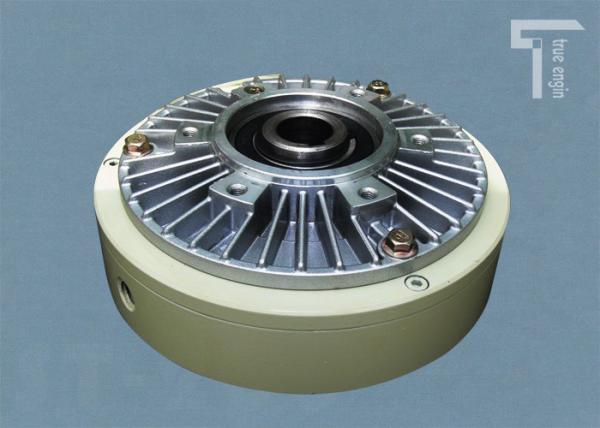

Celluar Brake Magnetic Particle Brake Torque 50NM Voltage 24V Powder Brake For Face Mask Machine
Celluar Brake Magnetic Particle Brake Torque 50NM Voltage 24V Powder Brake For Face Mask Machine
Celluar Brake Magnetic Particle Brake Torque 50NM Voltage 24V Powder Brake For Face Mask Machine
Celluar Brake Magnetic Particle Brake Torque 50NM Voltage 24V Powder Brake For Face Mask Machine
Specifications
Brand Name :
True Engin
Model Number :
TZ50k-3
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
USD136~303
Payment Terms :
T/T, Western Union
Supply Ability :
1000units/month
Delivery Time :
1~3days
Packaging Details :
Carton box
Model :
TZ50K-3
Weight :
11.5kg
Voltage :
24V
Speed :
1000rpm/s
Type :
Celluar
Description

Celluar Brake Magnetic Particle Brake Torque 50NM Voltage 24V Powder Brake For Face Mask Machine

Celluar Brake Magnetic Particle Brake Torque 50NM Voltage 24V Speed 1000RPM/S

Celluar Brake Magnetic Particle Brake Torque 50NM Voltage 24V Powder Brake For Face Mask Machine

Magnetic Powder Brake For Tension Control Parts

Introduction of magnetic powder brake
The magnetic powder brake/clutch is composed of active rotor(input shaft), driven rotor(output shaft) and Yoke with excitation coil. The three parts are assembled relative concentric and form a system which can rotate relatively. The annular gap between active rotor and driven rotor is full of alloy powder which has high magnetic conductivity.

Item Torque Voltage Speed Max current D1 D2 D3 L1
TZ6A-1 6 24 1400 0.8 130 62 44 25
TZ12A-1 12 24 1400 1 157 62 50 30
TZ25A-1 25 24 1400 1.5 182 78 58 40
TZ50A-1 50 24 1400 1.8 219 100 75 50
TZ100A-1 100 24 1000 2 290 120 90 65
TZ200A-1 200 24 1000 3 335 140 110 70
TZ400A-1 400 24 1000 4 398 200 130 99

L2 L3 L4 6-S d t R-diammeter Deepth Net weight
10 67 107 M5 12 4 M4 8 3
15 84 133 M5 16 5 M4 8 5
19 91 154 M6 20 6 M5 10 7.5
22 110 185 M6 25 8 M6 12 13
25 143 238 M8 30 8 M10 20 28
30 170 275 M10 35 10 M10 20 47
35 199 338 M12 45 14 M10 20 73

Features of magnetic powder brake
The transmission torque has a linear relationship with the magnetizing current. The size of the torque can get controlled within large range. Under normal circumstance, the magnetizing current has a linear relationship with transitive torque within range of 5%-100% rated torque.
The friction part will generate heat inevitably or even destroyed when it keep continuous sliding. But this device has a complete cooling set, it will not generate a lot of heat after long time running and it has a long service life.

Application of magnetic powder brake
Due to the features of the magnetic powder clutch and brake, they have been widely used in paper making, printing, plastic items, rubber industry, textile industry, printing and dyeing,wire and cable, metallurgy industry and tension control of winding and winding in roll material processing industry.

Celluar Brake Magnetic Particle Brake Torque 50NM Voltage 24V Powder Brake For Face Mask Machine
