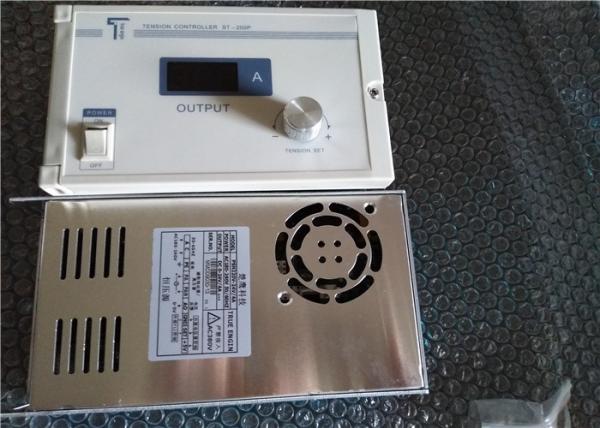

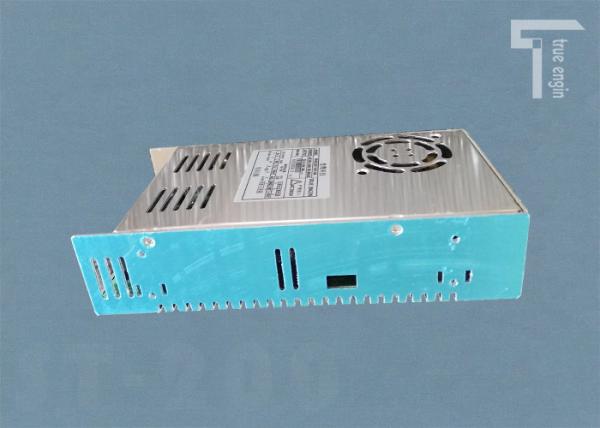

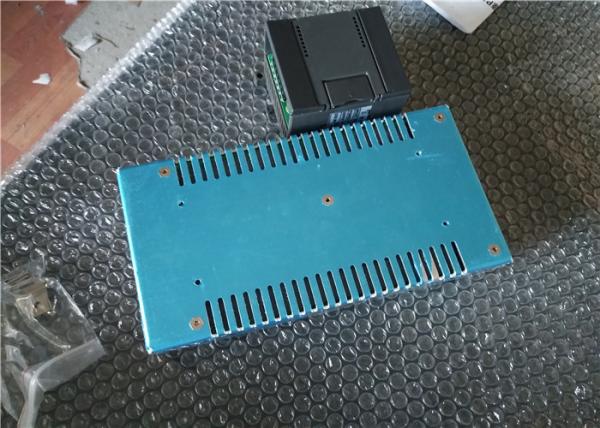

Magnetic Brake Constant Current Power Supply DC24V With Aluminum Case Power Supply

AC 220V Constant Current Supply Output 4A Current For Magnetic Brake

Brief Introduction

1. Over current, over heating, short- circuit protection.

2. AC 110V/220V voltage input and 24V/36V/48V voltage output technology.

3. Strong constant output current 1A-4A, complete range of specification supplied.

4. 2 control ways: Potentiometer and PLC

Remark: The output current of constant current power supply is in inverse proportion to the resistance of magnetic powder brake/clutch. The larger the resistance, the smaller Max. Output current of constant current power supply,vice-versa.

Two Control Mode:

Circumscribed PLC control:

a.When PLC output is 0- 5V, jumper cap is in “5V” b.When PLC output is 0-10V, jumper cap is in “10V” c.When PLC output is 0-20mA, jumper cap is in “20mA”

Circumscribed potentiometer C ontrol: jumper cap is in “20mA”

Can work with powder brake

Description:

Powder brake is used for tension control, overload protector, torque loader, such as printing machine, paper making machine, re-reeling machine, wire drawing machine, metal calender, film processor, textile machine etc.; or the loading device when doing loading experiments, such as motor, engine, hydraulic gear reducer.


Magnetic brake is based on electromagnetic theory and the use of magnetic torque transmission. Its exciting current and transmission of torque with a linear relationship between the basic features. Has nothing to do with the slip case to pass a certain torque, with fast response, simple structure, no pollution, no noise, no shock and vibration energy-saving advantages. It is multi-purpose, superior performance, the automatic control devices. It is now widely used in various machinery for the purpose of braking, power test load, unreeling tension control and so on.

PSN-110 220V power supply .pdf
