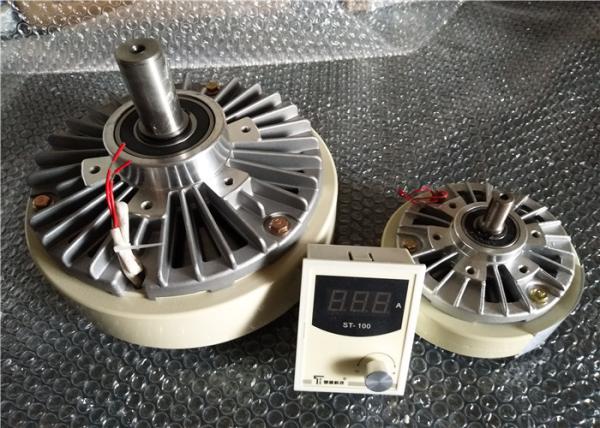

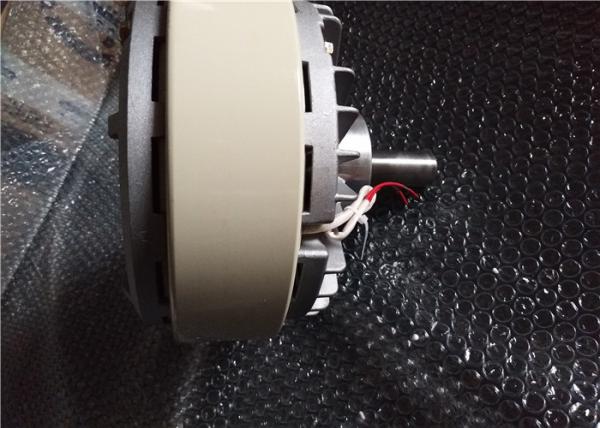

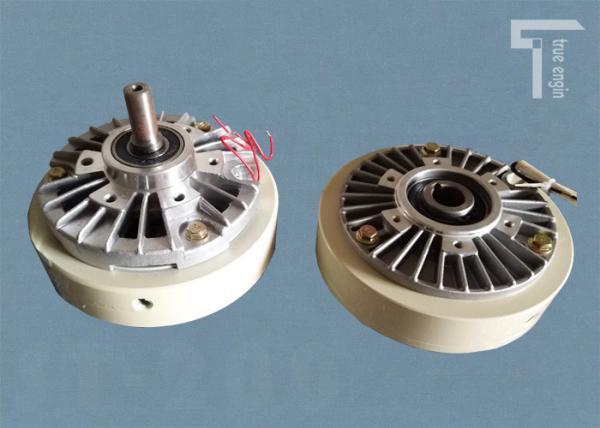

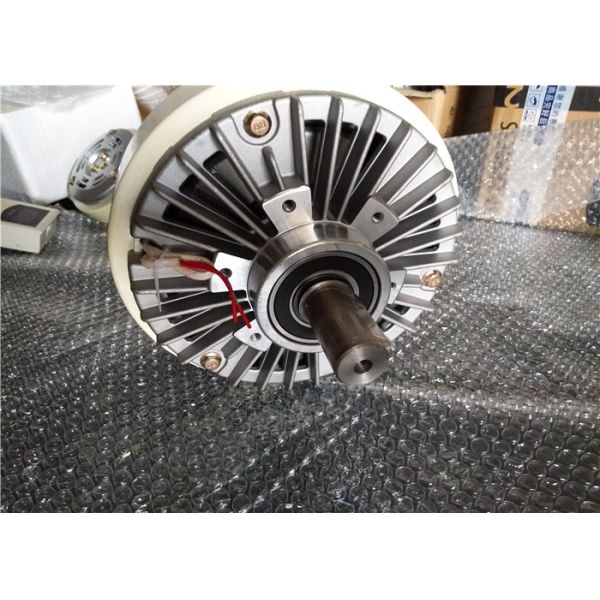

Output shaft Coupling Magnetic Powder Brake 400NM DC24V For Slitting Machine

Output shaft Coupling Magentic Powder Brake 400NM 40 KG DC24V Current 4A For Slitting Machine

General introduction:

The magnetic powder clutch is composed of active rotor (input shaft),driven rotor(output shaft) and yoke with excitation coil. The three parts are assembled relative concentric and form a system which can rotate relatively. The annular gap between active rotor and driven rotor is full of magnetic alloy powder which has high magnetic conductivity.

The magnetic powder will be in the state of loose situation when the current do not pass the excitation coil, the magnetic powder will be thrown on the inner wall of active rotor, in this case, there will not exist the interaction force between the active and driven rotor. So the magnetic powder clutch is in the state of separation, no torque transmission exits.

The magnetic powder in the working chamber will link in a link state under the action of the magnetic flux generated from the yoke when the current pass the excitation coil. The magnetic powder clutch can transfer torque relying on the shear force generated from magnetic chain and the friction generated from the magnetic powder and working face. In this situation, the magnetic powder clutch is in the combination state.

When the current is cut off, the magnetic flux will disappear along with the disappearance of the magnetizing current, the magnetic powder will be in the state of loose under the action of gravity again, and will be thrown on the inner wall of active rotor under the action of the centrifugal force.
In this case, the magnetic powder clutch will be in the state of separation again.

The magnetic powder clutch and brake have the same principle, the magnetic powder brake will form as long as driven rotor of the magnetic powder clutch is fixed.

Application:

Applied industry

1. Packing and wrapping system: packing machines, strapping machines, wrapping machinery

2. Textile machinery: fiber twisters, treatment machines, weaving machines.

3. Metal finishing systems: extruders, wire stretchers, presses, welders, steel wire reactors, cutters, pipe makers, wire winding machines

4. Machine tool systems: laths, millers, steel extruders, CNC lathes, specialized machinery.

5. Transportation equipment: hoists, feeders, conveyors, rollers, winders.

6. Paper-making systems: bad-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines.

FAQ

1. How to place an order?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2. Does SNC offer any discount?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3. What terms of payment are available?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production?
We will arrange the production immediately after receiving your payment.

5. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients

6. Do you have warranty ?
Yes, we provide 2 years warranty for most of our products.
