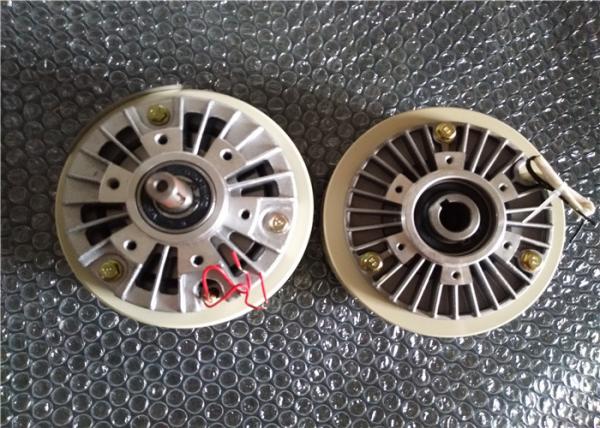

25NM 2.5kg Mitsubishi Powder Brake 24V 1.5A For Printing Machinery
25NM 2.5kg Mitsubishi Powder Brake 24V 1.5A For Printing Machinery
25NM 2.5kg Mitsubishi Powder Brake 24V 1.5A For Printing Machinery
25NM 2.5kg Mitsubishi Powder Brake 24V 1.5A For Printing Machinery
25NM 2.5kg Mitsubishi Powder Brake 24V 1.5A For Printing Machinery
25NM 2.5kg Mitsubishi Powder Brake 24V 1.5A For Printing Machinery
25NM 2.5kg Mitsubishi Powder Brake 24V 1.5A For Printing Machinery
25NM 2.5kg Mitsubishi Powder Brake 24V 1.5A For Printing Machinery
Specifications
Brand Name :
True Engin
Model Number :
TZ25K-3
Certification :
ISO9001
Place of Origin :
China,Hubei
MOQ :
1 UNIT
Price :
Negotiate
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000/unit
Delivery Time :
1~3 days
Packaging Details :
Carton
Brand :
True Engin
Model :
TZ25K-3
Torque :
25NM
Voltage :
24V
Max current :
1.5A
Warranty :
2 years
Description

Mitsubishi Suitable Magnetic Powder Brake 25NM 2.5kg Voltage 24V Max Current 1.5A

Features:

1. Rated torque: 6 to 400 (N · m)
2. Natural cooling / compulsory extended shaft type
a. 15 r / min from available
b. through the compressed air is blown into the voids in the heat to improve the thermal capacity.

Application

Printing machinery, paper industry machinery, bag-making machinery, paper-making machinery , wire and cable machinery,coil machinery,wire machinery,strapping bag machinery, textile machinery, weaving-dimensional machinery, woodworking machinery, test equipment, analog load use, the kinds of mechanical precision tension controlling,general industrial equipment, other general industrial machinery.

Torque Voltage Speed Max current D1 D2
6 24 1000 0.8 130 62
12 24 1000 1 150 82
25 24 1000 1.5 182 110
50 24 1000 1.8 219 130
100 24 800 2 260 140
200 24 800 3 300 220

D2 D3 L1 L2 L3 d t 6-S Net weight
62 52 3 57 60 16 5 M5 2.5
82 65 3 67 70 20 6 M5 4
110 90 4 74 78 25 8 M6 6.5
130 110 5 91 96 30 8 M6 11.5
140 120 5 105 110 35 10 M8 16
220 180 5 115 120 45 14 M10 24

Packing and delivery

1. Neutral carton packing
2. One piece in one carton box
3. One unit shipping
4. Lead time:within 3 days

25NM 2.5kg Mitsubishi Powder Brake 24V 1.5A For Printing Machinery25NM 2.5kg Mitsubishi Powder Brake 24V 1.5A For Printing Machinery

Installation:

1. Align the mating hole of the bracket with its intended mate on the mounting plate and fix it in place.
2. Be sure to use a flexible coupling to connect the brake shaft to the load shaft.The Concentricity and perpendicularity between the axes must fall within the coupling's allowable range.
3. If a pully is installed,observe the allowable axial load.

Magnetic Powder Brake For Tension Control Parts

Introduction of magnetic powder brake


The magnetic powder brake/clutch is composed of active rotor(input shaft), driven rotor(output shaft) and Yoke with excitation coil. The three parts are assembled relative concentric and form a system which can rotate relatively. The annular gap between active rotor and driven rotor is full of alloy powder which has high magnetic conductivity.
