Automatic Tension Load Cell Indicator 96*48*109mm DC 24V High Performance Tension Meter
Automatic Tension Load Cell Indicator 96*48*109mm DC 24V High Performance Tension Meter
Automatic Tension Load Cell Indicator 96*48*109mm DC 24V High Performance Tension Meter
Automatic Tension Load Cell Indicator 96*48*109mm DC 24V High Performance Tension Meter
Automatic Tension Load Cell Indicator 96*48*109mm DC 24V High Performance Tension Meter
Automatic Tension Load Cell Indicator 96*48*109mm DC 24V High Performance Tension Meter
Specifications
Brand Name :
True Engin
Model Number :
STM-10PD
Certification :
ISO9001
Place of Origin :
China,Hubei
MOQ :
1 unit
Price :
Negotiate
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 units/month
Delivery Time :
1~3 days
Packaging Details :
Carton
Brand :
Micro Control
Orginal :
Made in China
Power Supply :
DC 24V
Control output :
0~10v/0~5v
Warranty :
2 year
Payment Term :
100% TT in advance
Description

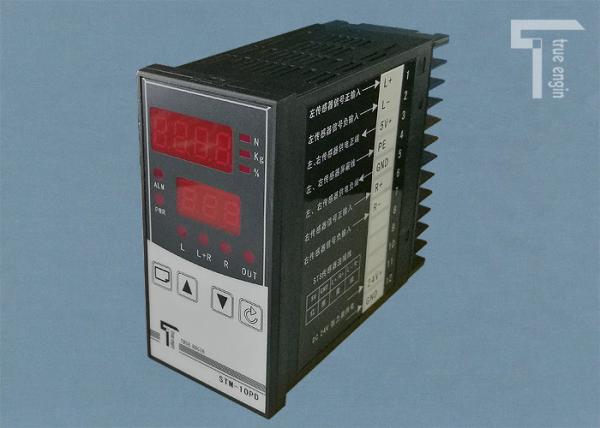

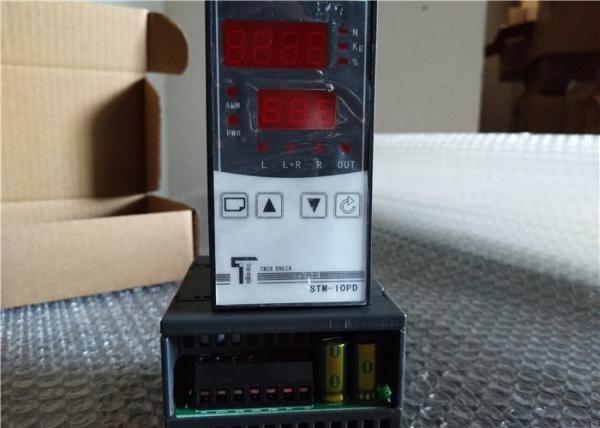

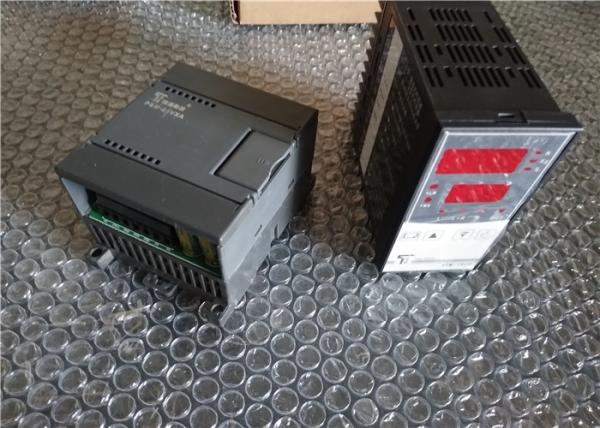

Automatic Tension Load Cell Indicator 96*48*109mm DC 24V High Performance Tension Meter

Automatic Tension Load Cell Indicator 96*48*109mm DC 24V High Performance Tension Meter

Digital Type Tension Meter For Tension Control System In Packing Machine

Features:

Key intelligently set zero, scaling, operation simple convenient.

1. Can select left /right total tension display.

2. Adapt SMT ,small size,light weight.

3. Tension controller with STS ans STSA for option.

4. Hardware and software to restrain power frequency interference, output steady and reliable.

5. Bedded installation,easy and convenient .

Attention:STM-050 tension meter only display tension,no control signal output,other functions same as STM-10PD.

Parameters
Model ST-10PD/STM-050
Power Supply DC 24V
Input Analog singal 1. L+~L-;R+~R-;Left,right tension loadcell signal input
STS tension loadcell signal (0~200mv,power supply DC5V)
STSA tension loadcell signal(0~15mv;power supply DC5v)
Control output 1. Vout-GND:DC0~10V/0~5V
2. Iout-GND:DC0~20mA/4~20mA
(STM-050 without Vout,Iout output)
Tension Display L+R Total tension L: left tension R:right tension
Fixed output 5V+-GND:DC5V tension loadcell power supply
Outline size 96*48*109mm

Work with loadcell as below:

Parameters
Power supply DC5V~12V Comprehensive ≤±0.5% F.S
Output Signal 0~20MV Temperature Range ‘-20℃~+70℃
Input Resistance 380±2Ω Temperature coefficient ≤±0.03% F.S/10℃
Output Resistance 350±2Ω Zero Output ≤±1% F.S
Rated stroke 3kg~600kg Safety Overload 150% F.S
Electric connection Power + red,power - green Signal + yellow Signal - White

Romove faults


1. The mass of detected reel is too large,the rated value of the tension detector is too small,both will cause the fault alarm of signal is too large.


2. C11 parameter value is not match with the actual tension sensor type,it will cause the fault alarm of signal too large or signal too small.


3. The wrap angle of film overt detector reel is too large,the force caused by film tension point to the screw ends of tension detector,ot will cause the fault alarm of signal is too small.


4. The tension sensor connect is not correct,fropped or damaged,left amd right pressure is imbalance,it will cause the fault alarm.


5. The load id too large will caused the fault alarm of "more than limit‘

Automatic Tension Load Cell Indicator 96*48*109mm DC 24V High Performance Tension MeterAutomatic Tension Load Cell Indicator 96*48*109mm DC 24V High Performance Tension Meter

We supply tension control system and web guiding system for about 20 years already.Cooperate with Wuhan University and our engineer are powerfull and professinal.Even Mitsubishi bought from us and said our quality is amazing and price low.

After all the efforts of our man about 2/3 market in China is ours now and we want to enlarge our market abroad,with high quality and low price,we wellcome all customer judge and test us.

Our warranty is 2 years,that mean any products failed within 2 years,we will replace or repaire for free.
Quality is our llife and we always try our best to make according to your requirements.

If you have any other questions,please call us free!
