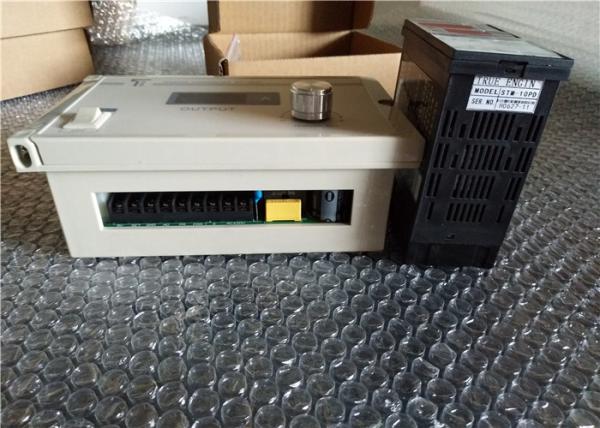

Light Weight Load Cell Indicator For Tension Control System 96*48*109mm Size Tension Meter
Light Weight Load Cell Indicator For Tension Control System 96*48*109mm Size Tension Meter
Light Weight Load Cell Indicator For Tension Control System 96*48*109mm Size Tension Meter
Light Weight Load Cell Indicator For Tension Control System 96*48*109mm Size Tension Meter
Light Weight Load Cell Indicator For Tension Control System 96*48*109mm Size Tension Meter
Light Weight Load Cell Indicator For Tension Control System 96*48*109mm Size Tension Meter
Specifications
Brand Name :
True Engin
Model Number :
STM-10PD
Certification :
ISO9001
Place of Origin :
China,Hubei
MOQ :
1 unit
Price :
Negotiate
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 units/month
Delivery Time :
1~3 days
Packaging Details :
Carton
Orginal :
China made
Model :
STM-10PD
Power Supply :
DC 24V
Input Signal :
0~200mv
Fixed Output :
DC 5V
Size :
96*48*109mm
Description

Light Weight Load Cell Indicator For Tension Control System 96*48*109mm Size Tension Meter

Light Weight Load Cell Indicator For Tension Control System 96*48*109mm Size Tension Meter

Digital Tension Meter For Tension Control System In Printing Machine

Features:

Key intelligently set zero, scaling, operation simple convenient.

1. Can select left /right total tension display.

2. Adapt SMT ,small size,light weight.

3. Tension controller with STS ans STSA for option.

4. Hardware and software to restrain power frequency interference, output steady and reliable.

5. Bedded installation,easy and convenient .

Attention:STM-050 tension meter only display tension,no control signal output,other functions same as STM-10PD.

Parameters
Model ST-1OPD/STM-050
Power Supply DC 24V
Input Analog singal 1. L+~L-;R+~R-;Left,right tension loadcell signal input
STS tension loadcell signal (0~200mv,power supply DC5V)
STSA tension loadcell signal(0~15mv;power supply DC5v)
Control output 1. Vout-GND:DC0~10V/0~5V
2. Iout-GND:DC0~20mA/4~20mA
(STM-050 without Vout,Iout output)
Tension Display L+R Total tension L: left tension R:right tension
Fixed output 5V+-GND:DC5V tension loadcell power supply
Outline size 96*48*109mm

Light Weight Load Cell Indicator For Tension Control System 96*48*109mm Size Tension MeterLight Weight Load Cell Indicator For Tension Control System 96*48*109mm Size Tension Meter

FAQ


1. When can I get the quotation?
We usually quoted within 12 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.

2. How should I place the order?
Please let us know the model number based on our specs for tension controller,web guiding system. For powder clutch, powder brake, please show us your drawing, or let us know your request torque, and then we will provide you suitable model for confirmation.

3. What’s your MOQ basis?
Normally, we don’t have MOQ request.

4. What about the lead time for production?
Honestly, it depends on the order quantity and the type of our products. For tension controller, load cell and edge position controller which is about 1-3 days. For powder clutch, powder brake which need about 3-5days.

5. What is the term of delivery?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
