Ultrasonic EPC Sensor Web Guiding System For Transparent Material In Printing Machine​ For Face Mask Machine

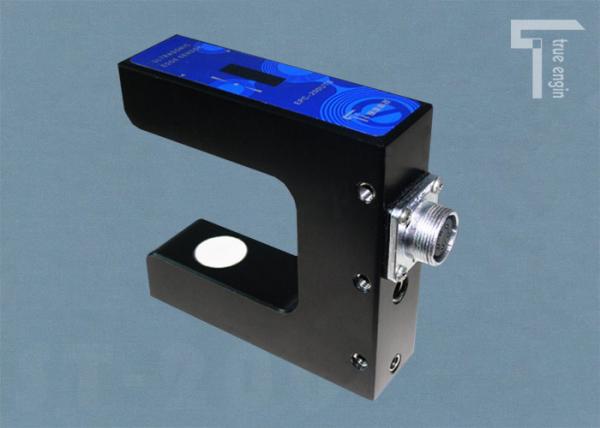

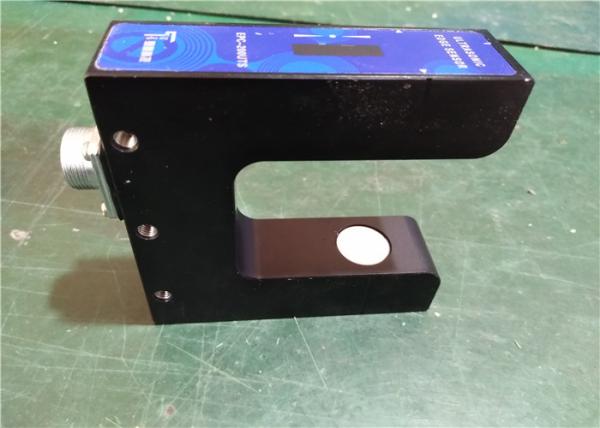

Ultrasonic sensor EPS-C

EPS-C ultrasonic sensor adopts The principle of high frequency ultrasound rectilinear propagation to detector the edge of material. Compared to photoelectric sensor, it is not affected by material transparency and easy to use. Suitable to trace edge of non-breathable material (eg. Plastic film, paper etc.), unsuitable for breathable material as cloth and non-woven material.

This Sensor can work with EPD-204 Digital sensor

Servo motor linear drive EPD-200

EPD-200 series servo motor linear drive adopts brushless servo motor drive, compared to other motors, it is high efficiency, high speed, fast response, big starting torque, accurate brake, maintenance-free. The drive part adopts high precision ball-screw, high efficiency, low return difference and precise location, suitable to work with EPC-200 edge position controller.

Features:

1. Brushless motor drive, maintenance-free

2. Precise screw, precise location

3. Embedded left/right limit switch and cent magnetic switch (EPD-204)

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory, professional manufacturer.

2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Wuhan City, Hubei Province, China.
You can fly to Wuhan airport directly.
All our clients are warmly welcome to visit us!

3. Q: Which industries are widely used in of your machine?
A: Those are mainly used in forming of three industries of adhesives products, electronics, and new energy power battery.
Examples of protective film, cutting backlight products, adhesive products, mobile phone accessories,
insulation film, garment accessories, automotive adhesives tapes etc.

4. Q: Could you send samples?
A: We are honored to receive your samples for Slitting Test.

5. Q: How does your factory do regarding quality control?
A: Quality is our culture.
We always attach great importance to quality controlling from the very beginning to the very end.
Our factory has gained ISO9001 authentication.

6. Q: How can I find the most appropriated machine for my material?
You can tell us the parameters of your material, then we can recommend you the most suitable machine for you.

Material Name:
Raw width of the material:
Thickness of the material:
Slitting width of the material:
Rewinding diameter:
Unwinding diamater:
Inner core diameter:
By the way, if you need videos of the machines, welcome to contact me.
