Specifications
Brand Name :
TRUE ENGIN
Model Number :
TL50A-1
Certification :
ISO9001
Place of Origin :
CHINA,HUBEI
MOQ :
1 unit
Price :
USD75~2000/UNIT
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000UNIT/MONTH
Delivery Time :
3~5 DAYS
Packaging Details :
Carton box with foam
Volatge :
24v
Torque :
6NM~400NM
Current :
0.8~400NM
Warranty :
2 year
name :
eddy current clutch
feature :
double shafts
Description

Stainless Steel Eddy Current Clutch Double Shafts 6NM~400NM For Slitting Machine Powder Clutch

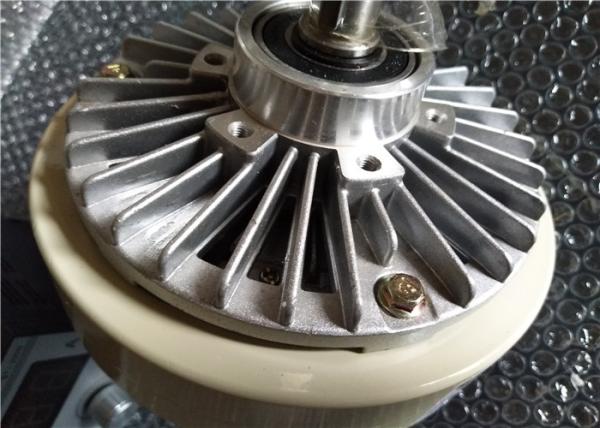

Double shafts magnetic powder clutch 6NM~400NM for slitting machine

Stainless Steel Eddy Current Clutch Double Shafts 6NM~400NM For Slitting Machine Powder Clutch

Item Torque Voltage Speed Max current D1 D2 D3 L1 L2 L3 L4 6-S d t R-diammeter Deepth Net weight
TL6A-1 6 24 1400 0.8 130 62 44 25 10 74 154 M5 12 4 M4 8 3
TL12A-1 12 24 1400 1 157 62 50 30 15 95 192 M5 16 5 M4 8 7
TL25A-1 25 24 1400 1.5 182 78 58 40 19 100 225 M6 20 6 M5 10 9
TL50A-1 50 24 1400 1.8 219 100 75 50 22 120 269 M6 25 8 M6 12 14
TL100A-1 100 24 1000 2 290 120 90 65 25 158 347 M8 30 8 M10 20 30
TL200A-1 200 24 1000 3 335 140 110 70 30 186 396 M10 35 10 M10 20 50
TL400A-1 400 24 1000 4 398 200 130 99 35 222 500 M12 45 14 M10 20 80

We also have manual tension controller which can work with magnetic powder clutch,please contact me free!

Featured advantages

1. Fast response. Dry design means instant reaction to commands.

2. Durability. Excellent heat dissipation and quality materials mean long life, even under high frequency and high performance conditions.

3. Easy to install and maintain. Sealed bearing race eliminates the need for removal of the center core. No dust brush is needed, and operation is simper and easier.

4. No adjustment of the motor. The motor is designed so that it does not need adjustment of the friction surface, and once it is installed only very minor adjustments are needed.

5. Sure motion. One-piece plate will not slip even under the strongest vibration for longer life.

6. Adjustable torque. Torque levels can be increased or decreased by changing the current, making it suitable for a variety of applications.

Stainless Steel Eddy Current Clutch Double Shafts 6NM~400NM For Slitting Machine Powder Clutch

Stainless Steel Eddy Current Clutch Double Shafts 6NM~400NM For Slitting Machine Powder ClutchStainless Steel Eddy Current Clutch Double Shafts 6NM~400NM For Slitting Machine Powder Clutch
