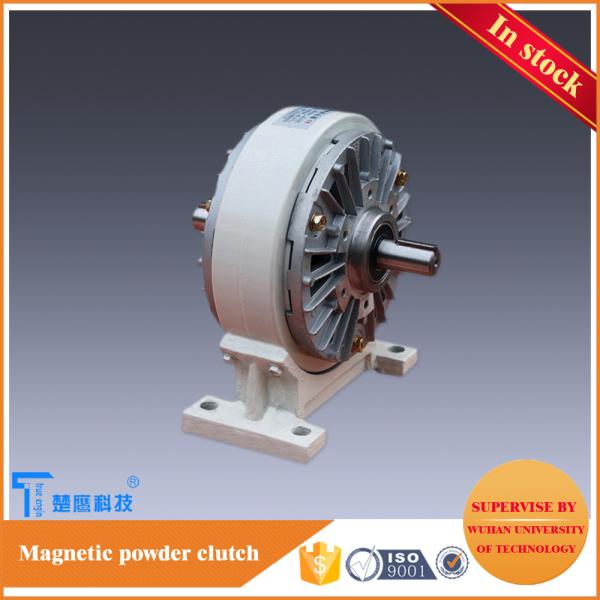

Foundation Support Magnetic Powder Clutch 12NM Voltage 24V 1.0A For Packing Machine

Belief introduction

A magnetic powder clutch is a special type of electromagnetic clutch which does not use friction plates. Instead, it uses a fine powder of magnetically susceptible material (typically stainless steel) to mechanically link an otherwise free wheeling disc attached to one shaft, to a rotor attached to the other shaft.

When a magnetic fieldis applied to the powder, it forms chains connecting the disc and rotor. The strength of the chains depends on the strength of the magnetic field. We use the finest materials available for magnetic components to yield high friction indexes, as well as premium non-asbestos linings to improve response time and extend working life. We will be reliable brake supplier for you.

Packing
Standard export package: each unit has individual box and all boxes are packed in standard packages.

Shipping
Products are shipped from china. We will sent out within 15 working days after the payment. We usually sendthe parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach your side which depend on the country delivery to.

Installation:

1. Align the mating hole of the bracket with its intended mate on the mounting plate and fix it in place.
2. Be sure to use a flexible coupling to connect the brake shaft to the load shaft.The Concentricity and perpendicularity between the axes must fall within the coupling's allowable range.
3. If a pully is installed,observe the allowable axial load.

Application:

Printing machinery, paper industry machinery, bag-making machinery, paper-making machinery , wire and cable machinery,coil machinery,wire machinery,strapping bag machinery, textile machinery, weaving-dimensional machinery, woodworking machinery, test equipment, analog load use, the kinds of mechanical precision tension controlling,general industrial equipment, other general industrial machinery.
