Speed 1800r/Min Eddy Current Clutch 1.21A With 900 W Slip Power ZA-10A
Speed 1800r/Min Eddy Current Clutch 1.21A With 900 W Slip Power ZA-10A
Specifications
Brand Name :
True Engin
Model Number :
ZA-10A
Certification :
ISO9001
Place of Origin :
China,Hubei
MOQ :
1 unit
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 UNITS/MONTH
Delivery Time :
1~3 DAYS
Packaging Details :
Standard Carton
Model :
ZA-10A
Current :
1.21A
Speed :
1800r/min
Slip power :
900w
Coupling :
Hollow
Warranty :
2 years
Description

Flange Center Ring Magnetic Powder Clutch 100NM Speed 1800 Alternative Mitsubishi

Magnetic powder clutch is a type of auto-control component with high-performance which uses driving and driven units as main body, powder (magnetic powder) with high magnetic conductivity as working medium and exciting current as control means so as to achieve control transfer/braking torque and to keep the linear relationship between input current and output torque. With the development of the modern industry, it plays an increasingly important role in all industrial fields and demonstrates great advantages over other components.


Magnetic powder brake Product Features:


(1) high-precision torque control
(2) superior durability, long life
(3) the stability of a fixed superior torque characteristics
(4) Continuous operation of the use of sliding
(5) link sleek, non-shock
(6) suitable for high-frequency operation
(7)lightweight, maintenance-free, long life

Model Torque NM Voltage
V		 Current
A		 Speed
rpm/min		 Slip power
w		 Outline dimention
D L
ZA-0.6A 6 24 0.3 1800 130 128 86
ZA-1.2A 12 24 0.39 1800 320 160 103
ZA-2.5A 25 24 0.73 1800 450 180 119
ZA-5A 50 24 0.94 1800 700 220 150
ZA-10A 100 24 1.21 1800 900 275 166
ZA-20A 200 24 1.9 1000 1900 335 198
ZA-40A 400 24 2.2 1000 2600 360 258

Model Hollow shaft size Flange size Fixed stator Size
d(H7) b(F8) L1 L2 L3 d1*depth D1(g7) D2 D3 D4 L4 d2*depth
ZA-0.6A 15 4 4 21 21 M6*10 70 60 60 82 7 M4*8
ZA-1.2A 18 5 5 25 32 M6*10 80 68 68 96 13 M6*8
ZA-2.5A 20 5 5 26 36 M6*10 90 80 80 114 17 M6*8
ZA-5A 30 7 7 31 48 M8*12 110 95 95 150 20 M8*12
ZA-10A 35 10 10 32 48 M10*18 125 110 110 176 18 M10*18
ZA-20A 45 12 12 45 59 M10*18 160 140 140 200 21 M10*18
ZA-40A 50 14 14 50 68 M10*18 160 140 140 200 21 M10*18

Packing and delivery:

1. Neutral carton packing
2. One piece in one carton box
3. One unit shipping
4. Lead time:within 3 days

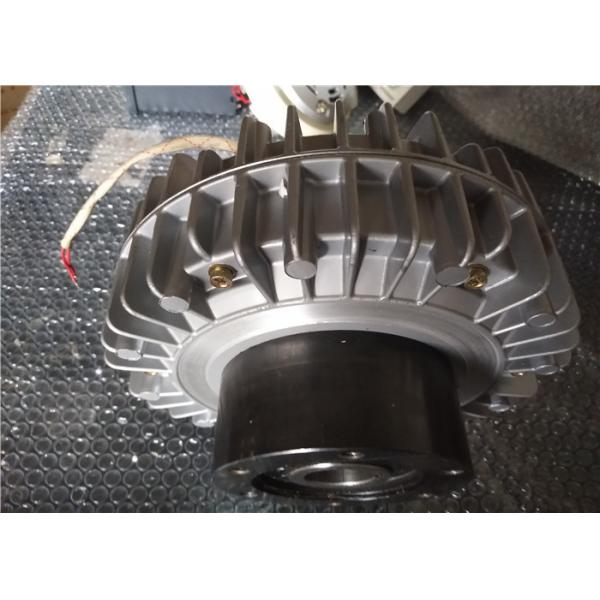

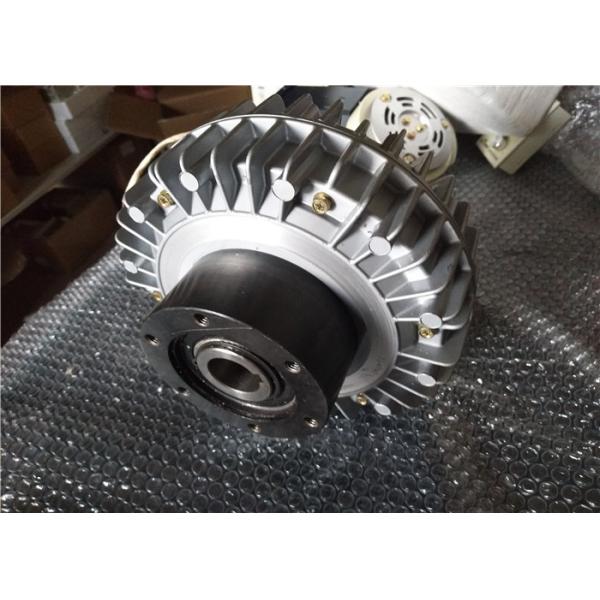

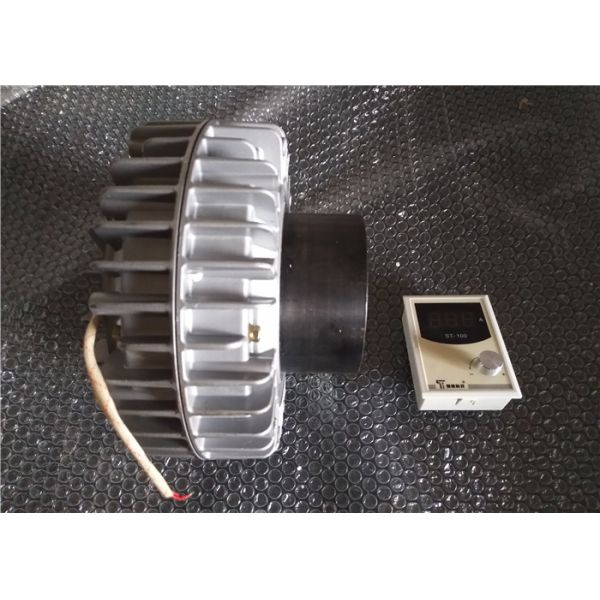

Hollow magnetic powder clutch


Hollow clutch is a superior performance of automatic control components, it is driven by the drive unit and the unit merged. It powder as the working medium to excitation current control means to control the brake or transmission of torque. Its output torque and magnetizing current good linear relationship, and with fast response, simple structure, making it suitable for wire, cable, printing, packaging, textiles, rubber, leather, metal foil tape processing, paper and paper processing Tension Control System and other relevant coiling device.

Used for printing machine, compound machine, cutting machine, pouch machine and lamination machine and so on.

We can also can supply powder brake with mounting brackets as left figure.

1. Volatge: dc 24v

2. Magnetic powder clutch/brake0.6KG-40KG stock supply

3. Imported highly magnetized magnetic powder

4. Imported wool felt and NSK bearings operate smoothly

5. Coil 100% use enamelled copper wire

6. Cast steel material

Speed 1800r/Min Eddy Current Clutch 1.21A With 900 W Slip Power ZA-10ASpeed 1800r/Min Eddy Current Clutch 1.21A With 900 W Slip Power ZA-10ASpeed 1800r/Min Eddy Current Clutch 1.21A With 900 W Slip Power ZA-10A
