ISO9001 Edge Position Control System With Digital Controller Edge Sensor / Motor
ISO9001 Edge Position Control System With Digital Controller Edge Sensor / Motor
ISO9001 Edge Position Control System With Digital Controller Edge Sensor / Motor
ISO9001 Edge Position Control System With Digital Controller Edge Sensor / Motor
ISO9001 Edge Position Control System With Digital Controller Edge Sensor / Motor
ISO9001 Edge Position Control System With Digital Controller Edge Sensor / Motor
Specifications
Brand Name :
True Engin
Model Number :
EPC-100
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiate
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 Units/month
Delivery Time :
1~3 days
Packaging Details :
Carton
Edge type :
Digital
Controller :
EPC-100
Sensor :
EPS-C
Actuator :
EPD-104
Made :
China Manufacturer
Lead time :
2 days
Description

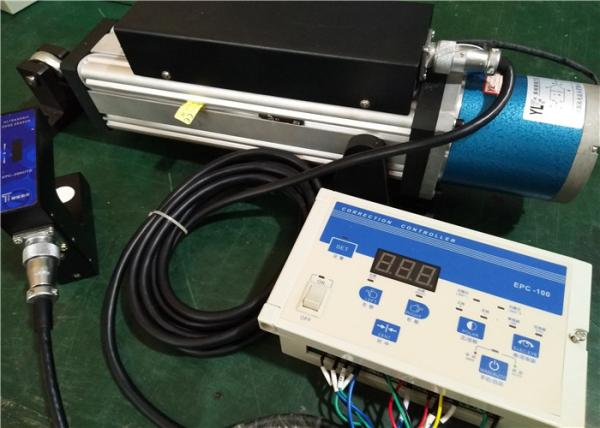

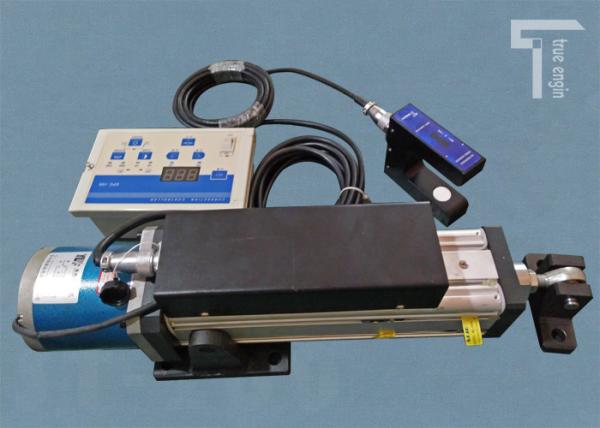

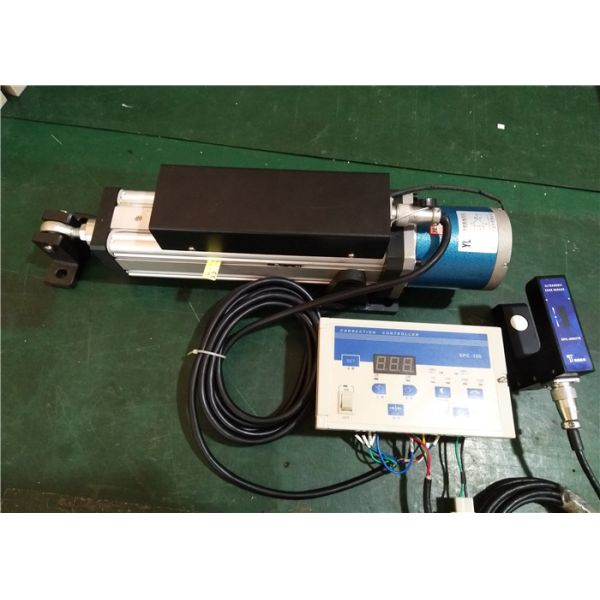

Whole Edge Position Control System With Digital Controller Edge Sensor And Edge Motor

Rolling material edge position control system overview

System Composition

Edge position control system is consists of edge position controller, edge position sensor, and servo motor drive 3 parts.

Application:

Suitable for edge position control of printing machine, splitting machine, compound machine, coating machine, rubber machine, textile machine etc.

Sensor for suitable material

Material Photoelectric sensor EPS-A Photoelectric sensor EPS-B Ultrasonic sensor EPS-C

Reflective shade guide

Sensor EPS-D
Transparent Film √
Non-transparent film √ √ √ √
paper √ √ √ √
foil √ √ √ √
Sheet metal √ √ √ √
textile √ √ √
Breathable material √ √ √
Photosensitive material √
Dusty environment √
Deviation method Trace edge Trace edge Trace edge Trace edge, trace line

Edge position control system’s selection

1. Servo edge position control system constitute

Features: high accuracy, fast respond, support to trace edge and trace line working mode

Controller: EPC-200 analog edge position controller

Detector:

Item NO. EPS-B EPS-C EPS-D
Detection Mode Photoelectric correlation Ultrasonic correlation Aberration correlation
Tracing mode Trace edge Trace line Trace edge/line

Motor drive: EPD-204

  • Digital edge position control system constitute

Features: cost-effective web guiding system, support to trace edge and trace line working mode, but it is not suitable for transparent material.

Controller: EPC-100 digital edge position controller

Detector:

Item NO. EPS-A EPS-B
Detection mode Photoelectric reflection Photoelectric correlation
Tracing mode Trace edge Trace edge

Motor: EPD-104

  • Customized digital edge position control system constitute

Features: suitable for transparent material, support trace edge working mode, high performance & cost-effective.

Controller: EPC-100 digital edge position controller customized

Detector:

Item NO. EPS-C
Detection mode Ultrasonic correlation
Tracing mode Trace edge

Motor: EPD-104

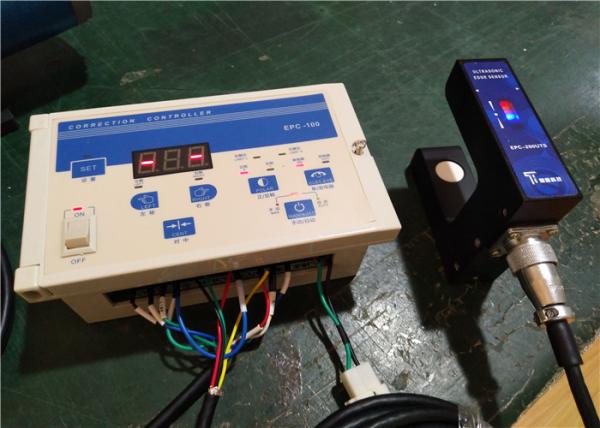

Digital edge position controller EPC-100

EPC-100 edge position controller is a high accuracy controller can trace the edge of material. It is high reliability, high anti-interference, long life spam. EPC-100 with photoelectric sensor and synchronous motor, which constitute digital edge position control system, is widely applied in printing, packaging, textile industry of roll materials’ edge position control.

Features

  • With single electric-eye , same edge/opposite edge double electric-eye 3 working mode.
  • Drive single phase synchronous motor and web guiding sensitivity is adjustable, motor forward/reverse can be changed.

Photoelectric sensor EPS-A

EPS-A photoelectric sensor is coaxial reflective type edge position sensor, suitable to trace edge of non-transparent material for web guiding control.

Features:

  • Discrete output, can work with EPC-100 edge position controller
  • Dual light source, improve color difference
  • Potentiometer calibration
  • Simple and stable.

Specification
Item No. EPS-A
Power supply DC 10~30V±10% Wave＜10% Light source Red, Green
current consumption ≤45mA Currency load 200mA(max)
Output signal

High level Vs-(≤1.5V)

Low level≤1.2V

 Environment temperature -15℃~+65℃
Detect method Coaxial reflective Shell plastic
Detect range 10±2mm Outgoing line 4 cores Φ5.4 pvc jacket cable
Matched controller EPC-100/300 Suitable material Non-transparent film
Electrical connection Power supply (+): red Power supply(-): Black PNP signal: green NPN signal: white

Ultrasonic sensor EPS-C

EPS-C ultrasonic sensor adopts The principle of high frequency ultrasound rectilinear propagation to detector the edge of material. Compared to photoelectric sensor, it is not affected by material transparency and easy to use. Suitable to trace edge of non-breathable material (eg. Plastic film, paper etc.), unsuitable for breathable material as cloth and non-woven material.

Specification
Item NO. EPS-C
Power supply DC 12V Output signal 0-5V analog signal
Detect method Ultrasonic correlation Detect range 5mm
Wave load frequency 200KHZ Detect accuracy ±0.05mm
Protection level IP54 Shell Aluminium alloy
Matched controller EPC-200 and customized EPC-100 (trace edge) Suitable material Non-breathable film
Electrical connection Customized EPC-100: power supply(+): red Power supply(-): black signal: green
EPC-200: 5P air plug docking

Synchronous motor linear drive

EPD-100 series synchronous motor linear drive is with compact & reasonable compact, elegant appearance, strong mechanical strength, full connection spare parts, easily installed and running stable, , tiny mechanical wear, long service life, Can work match the EPC - 100 edge position controller.

Features:

  • Synchronous motor drive, cable connected.
  • Compact structure, elegant appearance.
  • Embedded left/right limit switch and middle magnetic switch

Specification
Item No. EPD-104
Stroke 150mm
Thrust 200kg
Thrust-weight 2T
Max drive speed 10mm/s
Configuration Detector: EPS-A/B, EPS-C with customized EPC-100

ISO9001 Edge Position Control System With Digital Controller Edge Sensor / MotorISO9001 Edge Position Control System With Digital Controller Edge Sensor / Motor

EPC-100manual instruction -1.pdf

EPC-100manual instruction -2.pdf

EPC-100manual instruction -3.pdf

EPC-100manual instruction -4.pdf
