Super Quality Textile Reinforced Rubber Conveyor Belt From Chinese Factory (NN250)
Super Quality Textile Reinforced Rubber Conveyor Belt From Chinese Factory (NN250)
Super Quality Textile Reinforced Rubber Conveyor Belt From Chinese Factory (NN250)
Super Quality Textile Reinforced Rubber Conveyor Belt From Chinese Factory (NN250)
Super Quality Textile Reinforced Rubber Conveyor Belt From Chinese Factory (NN250)
Super Quality Textile Reinforced Rubber Conveyor Belt From Chinese Factory (NN250)
Super Quality Textile Reinforced Rubber Conveyor Belt From Chinese Factory (NN250)
Super Quality Textile Reinforced Rubber Conveyor Belt From Chinese Factory (NN250)
Specifications
Brand Name :
Huiyuan
Model Number :
NN250
Certification :
SGS
Place of Origin :
China
MOQ :
100M
Price :
USD 15.2/M
Payment Terms :
T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability :
1000m/Day
Delivery Time :
7-15days
Packaging Details :
PP Cloth+Steel Cord
Color :
Black
Material :
Fabric & Natural Rubber
Width :
300mm-2000mm
Ply :
2-8plies
Thickness :
5mm-30mm
Strength :
6MPa-25MPa
Description

1.Our conveyor belt factory
Super Quality Textile Reinforced Rubber Conveyor Belt From Chinese Factory (NN250)
2.Our production line

Super Quality Textile Reinforced Rubber Conveyor Belt From Chinese Factory (NN250)
3.Our testing room
Super Quality Textile Reinforced Rubber Conveyor Belt From Chinese Factory (NN250)
4.Our produced conveyor belt
Super Quality Textile Reinforced Rubber Conveyor Belt From Chinese Factory (NN250)

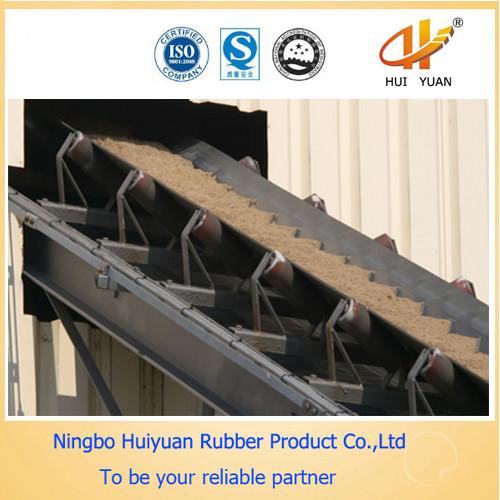

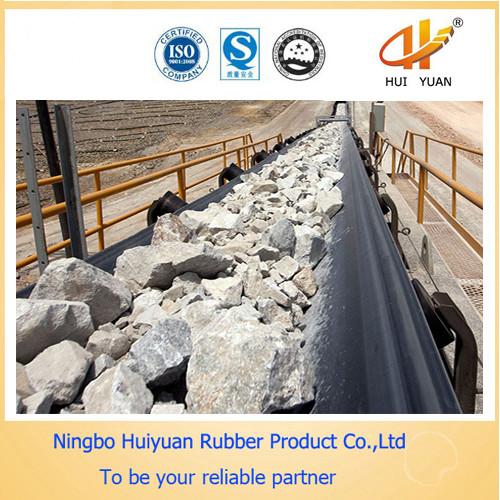

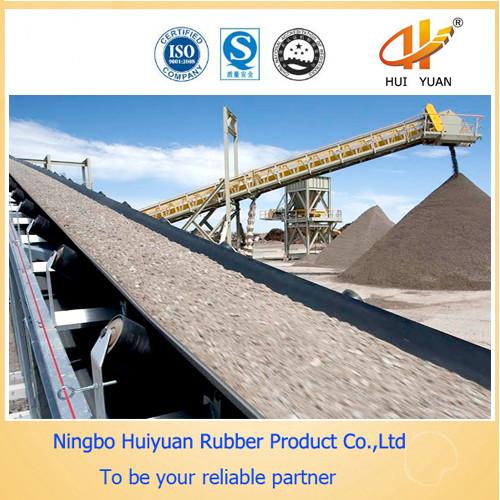

5.Our belt application
Super Quality Textile Reinforced Rubber Conveyor Belt From Chinese Factory (NN250)

NN conveyor belt

Super Quality Textile Reinforced Rubber Conveyor Belt From Chinese Factory (NN250)
Nylon conveyor belt is characterized by thin in the tape body, good impact and flexural strength, light weight, fatigue durability, as well as best bonding strength between layers, thus having a long lasting service life. The product is suitable for use in the sectors such as building, port, chemical engineering and mine where requiring medium-and-long conveying distance, high operating speed of conveyor-belt and great conveying volume.

Technical data

Fabric type Fabric structure Ply thickness
(mm/p)		 Ply Thickness
(mm/p)		 (N/mm)
Strength series		 (mm)
Cover thickness		 Width
mm		 Length
mm
Warp Weft 2ply 3ply 4ply 5ply 6ply Upper Upper
Nylon
(NN)		 Nylon (N) Nylon (NN) NN-100 0.75 200 300 400 500 600 1.5~12 0~4.5 400~2200 ≤250
NN-150 0.8 300 450 600 750 900
NN-200 0.9 400 600 800 1000 1200 500~2200
NN-250 1.15 500 750 1000 1250 1500
NN-300 1.25 600 900 1200 1500 1800
NN-400 1.45 1600 2000 2400 800~2500
NN-500 1.55 2000 2500 3000 800~2200



Supporting you NICE QUALITY, CHEAP PRICE, FAST DELIVERY and BEST SERVICE is our core values. Welcome your inquiry! wuying@nbhyxj.net
