Electrostatic Polyester 48VDC Light Controller Panel Cold Rolled Steel
Electrostatic Polyester 48VDC Light Controller Panel Cold Rolled Steel
Specifications
Brand Name :
WelandSignal
Model Number :
CL01
Certification :
ROHS,CE
Place of Origin :
SHAANXI, CHINA
MOQ :
1pc
Price :
USD$199
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000pcs/month
Delivery Time :
3-7 working days
Packaging Details :
Each has one small carton
Input power voltage :
100-240VAC(50/60HZ)
Output operation voltage :
48VDC
Surge protector :
65KA/2.5KV
Protection class :
IP65
Material (Two options) :
Cold-Rolled steel sheet, Ral-7035 Electrostatic Polyester
Operating temperature :
-30C°-+60C°
Dimension :
400mm*300mm*150mm
Weight :
8kg
Application :
Tower, chimney ,tall buildings, bridge aviation obstruction lighting area
Standard :
FAA,ICAO
Description

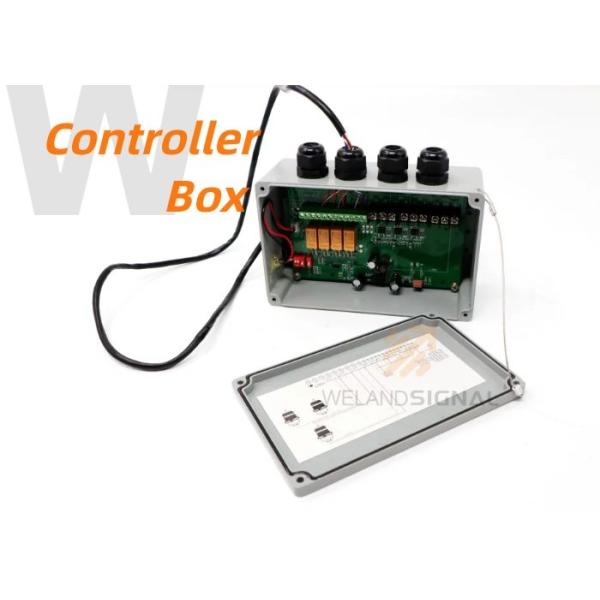

Our LED Obstruction Lighting Controller with Transfer Relay & Alarm Relay is designed to reliably monitor the proper operation of the latest low power LED obstruction lights and features a range of dry alarm contacts to report all aspects of system health.

Specifications

Electrostatic Polyester 48VDC Light Controller Panel Cold Rolled Steel

Electrostatic Polyester 48VDC Light Controller Panel Cold Rolled Steel

Features

  • Control up to three medium intensity beacons and 1 level of up to 4 units of low intensity single obstruction lights, also suitable for only single or double obstruction lighting system.
  • LED indicators in control board to indicate lights, power, photocell operation status
  • Alarm relay for each beacon
  • Alarm relay for each sidelight level
  • Alarm signal output, easy for connecting remote alarm monitoring device
  • Combined with welandsignal' photocell, which can turn on/off the system from dusk to dawn
  • Surge protedtor for input and output

Detailed Images

Electrostatic Polyester 48VDC Light Controller Panel Cold Rolled Steel

Typical System Application

Electrostatic Polyester 48VDC Light Controller Panel Cold Rolled Steel
