Specifications
Brand Name :
Cobham
Certification :
FAA
Place of Origin :
USA
MOQ :
1EA
Price :
Please consult customer service
Payment Terms :
T/T
Supply Ability :
Please consult customer service
Delivery Time :
5-8 work days
Packaging Details :
1*1*1
Finish :
Polyurethane white paint
Connector :
TNC (female)
Polarization :
Vertical
Radiation pattern :
Omni-directional
Impedance :
50Ω
Power RF :
1 KW, peak
Description

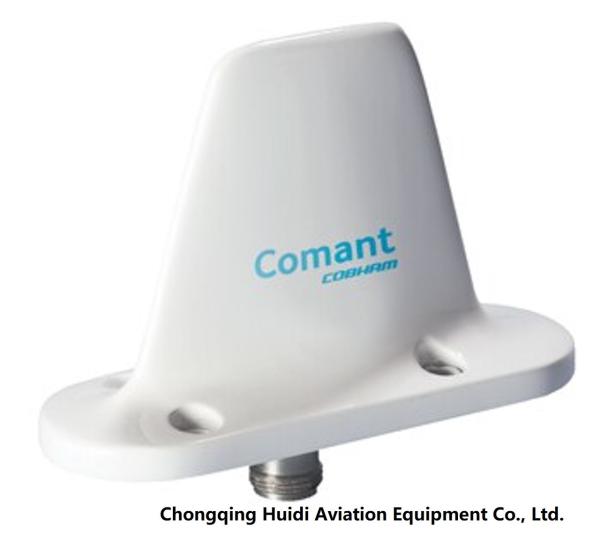

COBHAM-Comant, Broadband and rugged antenna designed for DME or transponder use.

The antenna components are housed in a glass-reinforced polyester molded housing. Includes BNC connectors. Rated at 400 kts.

Designed specifically for DEI and transponder and transmitter use, the CI 105 is a rugged, wide antenna with a fiberglass reinforced polyester molded housing. The CI 105 includes a BNC connection in a standard two-bolt mounting configuration

Current frequency 960 to 1220 MHz.

VSWR 1.5:1 960 to 1220 MHz 1.3:1 1030 to 1090 MHz.

The radiation pattern corresponds to a quarter-wavelength short-circuit stub.

Rf impedance 50 0hms.

Dc resistor, open circuit.

Rf power 2.5KW peak.

Available models :CI 105,CI 105-6,CI 105-7,CI 106,CI 121,CI 158C,CI 317-1

Performance Parameter

Weight: 0.241b

Height: 3.23 feet

Material: molded radome

Outer cloth coating, polyurethane enamel

BNC jack

Ambient temperature: -54 ° C +55 ° C

Height: 70,000 feet

FAA TSO-certified C36d,C74c

FAQ

Q:Does Cl 105 have a BNC connector?

A:Standard two stud mounting configuration.Cl 105 includes a BNC connector. Single and twin engine piston aircraft for applications of this antenna design.

Q:What is a comant Cl 105-17-1antenna?

A:Comant's CI 105-17-L is a top-of-the-line ADS-B performance antenna capable of both IN and OUT processing. The single connector blade antenna can be used for ADS-B, TIS-B, UAT, DME, or ATCRBS Transponder, plus Mode S.

The CI 105-17-L holds 5 different TSO’s all in the familiar transponder antenna footprint and tiny blade size. Perfect for diversity antenna installations to ensure unsurpassed coverage. Utilizes a standard 6-hole mounting pattern.
