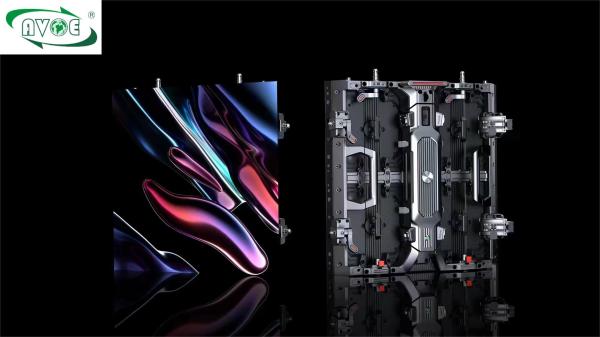

Type G P2.604 Stage Rental LED Panel LED Display 3840Hz Cabinet 500x500mm 5000nits
Features

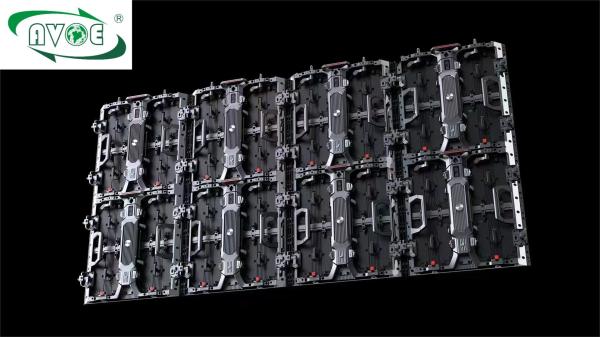

1. Provide hanging and stacking two installation options. convenient to rapid installation and dissembling. Multiple measures to ensure the reliability, security of the cabinet installation.
2. High reliability: using distributed scanning technology and module design technology make higher reliability and stability.
3. Convenient operation: when the computer edits content and sends it to the system control card, the edited content can be displayed on the screen,it is easy to operate the system.
4. Good uniformity and consistency
It provides for amazingly sharp, vivid and clear images.
5.SMD encapsulation technology, 140 °super wide Angle, making the viewer can obtain excellent display effect in any Angle
6. Favorable effect: using the nonlinear correction technology makes the image clearer and the layering stronger.
7. Diversified display mode: support a variety of display modes.
Model | I-P2.6 | I- FP2.84 | I-P2.97 | I-P3.91 | O-P3.47 | O-P3.91 | O-P4.81 |
Pixel Pitch (mm) | 2.6 | 2.84 | 2.97 | 3.91 | 3.47 | 3.91 | 4.81 |
Led Configuration | SMD1515 | SMD1515 | SMD2121 | SMD2121 | SMD1921 | SMD1921 | SMD1921 |
Pixel Density(dot/㎡) | 147456 | 123904 | 112896 | 65536 | 82944 | 65536 | 43264 |
Reasolution(dot) | 96*96 | 88*88dot | 84*84 | 64*64 | 72*72 | 64*64dot | 52*52dot |
Module Size (mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
Cabinet Size (mm) | 500*500*88 | 500*500*88 | 500*500*88 | 500*500*88 | 500*500*88 | 500*500*88 | 500*500*88 |
Cabinet Weight | 7.2kg | 7.2kg | 7.2kg | 7.2kg | 7.5kg/ | 7.5kg | 7.5kg |
IP Rating | IP30 | IP30 | IP30 | IP30 | IP65 | IP65 | IP65 |
Scanning Mode | 24S | 24S | 21S | 16S | 18S | 16S | 13S |
Brightness CD/m2 | 800 | 800 | 800 | 800 | 5000 | 4500 | 4500 |
Viewing Angle | 140° | 140° | 140° | 140° | 140° | 140° | 140° |
View Distance | >3m | >3m | >3m | >4m | >4m | >4m | >5m |
Gray | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit |
Color | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
Max/Ave Consumption(W/㎡) | 550/200 | 460/160 | 480/170 | 400/150 | 600/200 | 600/200 | 580/180 |
Refresh (Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 |
Gamma Coefficient | -5.0~ + 5.0 | -5.0~+5.0 | -5.0~+5.0 | -5.0~+5.0 | -5.0~+5.0 | -5.0~+5.0 | -5.0~+5.0 |
Environment | INDOOR | INDOOR | INDOOR | INDOOR | OUTDOOR | OUTDOOR | OUTDOOR |
Brightness Ajustment | 0-100 levels adjustable | ||||||
Control System | Synchronous display with control PC by DVI | ||||||
Video Format | Composite, S-Vido,Component, VGA. DVI, HDMI, HD_SDI | ||||||
Power | AC100~240 50/60HZ | ||||||
Working Temperature | -20°C~+50°C | ||||||
Working Humidity | 10~95% RH | ||||||
Life Span | 50,000hours |
Application:For Sport Centre Advertisement Marketplace Station Stage Background Outdoor Activities Etc.
Competitive Advantages:
1. Good quality;
2. Good price;
3. Good 24hours service;
4. Promote delivery;
5. Energy-saving;
6. Small order accepted.
Our serrvices
1. Service before sales
On-site inspect
Professional design
Solution confirmation
Training before operation
Software use
Safe operation
Equipments maintenance
Installation debugging
Installation guidance
On-site debugging
Delivery Confirmation
2. After sale service
Quick response
Prompt question resolving
Service tracing
3. Service concept:
Timeliness, considerateness, integrity, satisfaction service.
We are always insisting on our service concept, and proud of the trust and reputation from our clients.
4. Service Mission
Answer any question; Deal with all the complaint; Prompt customer service
We had developed our service organization by responding to and meeting the diverse and demanding needs of customers by service mission. We had become a cost-effective, highly skilled service organization.
5. Service Goal:
What you have thought about is what we need to do well; We must and will do our best to fulfill our promise. We always bear this service goal in mind. We can't boast the best, yet we will do our best to free customers from worries. When you get problems, we had already put forward solutions before you.
