Application

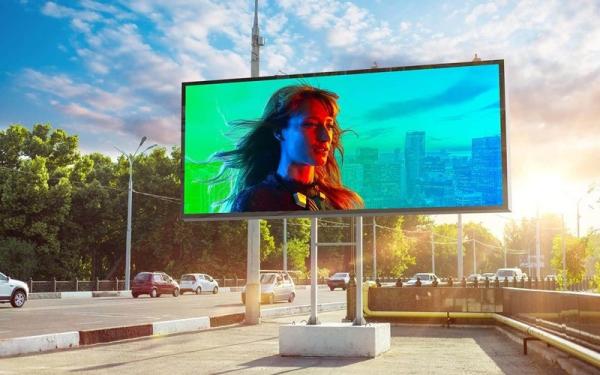

1. Outdoor advertising, digital billboards, advertising in big companies
2. Sports halls, fields, playgrounds.
3. Airports, bus stations and railway passenger terminals.
4. Facades of shopping malls, department stores, banks and car dealerships.
5. Architecture and social projects, information systems in cities.
6. Show-business, concerts, festivals, motor shows and other public events.
Unit Module | Item | Parameter |
Model Number | AE-P4OFRGB | |
Module size | 320mm*160mm | |
Pixel pitch | 4mm | |
Pixels Density | 62500dot/m2 | |
Pixel configuration | 1R1G1B | |
Package mode | SMD1921 | |
Pixel resolution | 80dots(W)*40dots(H) | |
Max Power | 27.5W | |
Module thickness | 16mm | |
Weight | 0.58kg | |
Drive type | Constant drive | |
Scan mode | 1/10 | |
Port type | HUB75 | |
Brightness of white balance | ≥6000~6500cd/m2 | |
LED Cabinet
| Dimension | 960*960 |
Monomer Module Number | 18pcs | |
Power supply | 5V/60A*3 pcs | |
Thermal discharge | fan 2pcs | |
Pixel per cabinet | 960mm*960mm | |
Best viewing distance | 4M~10M | |
Best viewing angle | 110°(W) 110°(H) | |
Temperature | working:-20℃~+50℃ | |
Relative humidity | 10%-95% | |
Thickness | 100mm | |
Power | Working voltage | AC220V±10% |
Average Power consumption | 325W/㎡ | |
Max .Power consumption | ≤975W/m2 | |
Current | ≤20mA(single LED) | |
Control system | CPU | Pentium4 or above P4 |
Operation system | WIN98/2000/NT/XP/WIN7 | |
Control method | Synchronization | |
Main technical parameter | Driving device | Constant drive IC |
Refresh frequency | ≥1920HZ | |
Grey scale/colors | 4096gray level/16.7M colors | |
MTBF | ≥100000hours | |
Power switch | Automatic switch | |
Display Mode | ≥800*600/1024*768 |
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to AVOE.
Competitive Advantages:
1. Good quality;
2. Good price;
3. Good 24hours service;
4. Promote delivery;
5. Energy-saving;
6. Small order accepted.
