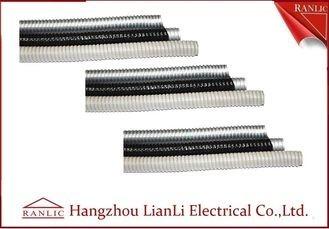

Grey / Black Galvanized Steel Flexible Electrical Conduit with PVC Coated
Grey / Black Galvanized Steel Flexible Electrical Conduit with PVC Coated
Grey / Black Galvanized Steel Flexible Electrical Conduit with PVC Coated
Grey / Black Galvanized Steel Flexible Electrical Conduit with PVC Coated
Grey / Black Galvanized Steel Flexible Electrical Conduit with PVC Coated
Grey / Black Galvanized Steel Flexible Electrical Conduit with PVC Coated
Specifications
Brand Name :
ranlic
Model Number :
RL-F44-12….refer to specification
Certification :
Ul CERTIFICATE NO.E350597
Place of Origin :
Zhejiang,china
MOQ :
1000meters
Price :
Negotiable
Payment Terms :
T/T OR LC
Supply Ability :
1000000METERS/MONTH
Delivery Time :
30 days after received the deposit
Packaging Details :
10-100meters/roll
Description
Detailed Product Description

Grey / Black Galvanized Steel Flexible Electrical Conduit with PVC Coated

Quick Detail:

Size:3/8’’ to 4’’

Color: black or grey

Material: inside –galvanized steel, outside : pvc

Pvc flexible hose or plastic flexible conduit

Description:

Flexible metal conduits for general purpose applications and installations in close quarters that require added

flexibility made from high-grade, hot dipped,galvanized low carbon steel.

Continuous interlocking metal strip design enhances flexibility a nd intergrity

Interior surface allows for easy wire fishing

3-hour through-penetration fire systems

Brand name: Ranlic

Applications:

Widely used for general electrical wiring where flexibility and mechanical protection are required.

Connect fm conduit to junction box

Specifications:

INSIDE DIA. OUTSIDE DIA. ITEM PITCH GAL.COIL MIN.BEND STANDARD
Size MM MM CODE MM THICKNESS RADIUS PACKAGE METERS
3/8" 12mm 16.30mm RL-F60 4.70mm 0.20mm 50 Degree 100 Meters
1/2" 15mm 19.70mm RL-F61 5.70mm 0.20mm 65 Degree 50 Meters
3/4" 20mm 25.10mm RL-F62 6.40mm 0.22mm 75 Degree 30 Meters
1" 25mm 31.00mm RL-F63 8.70mm 0.22mm 100 Degree 30 Meters
1-1/4" 32mm 40.30mm RL-F64 10.50mm 0.30mm 125 Degree 15 Meters
1-1/2" 38mm 45.80mm RL-F65 11.40mm 0.31mm 150 Degree 15 Meters
2" 50mm 57.10mm RL-F66 11.40mm 0.35mm 175 Degree 10 Meters
2-1/2" 63mm 70.80mm RL-F67 14.20mm 0.45mm 200 Degree 10 Meters
3" 75mm 85.90mm RL-F68 14.20mm 0.50mm 225 Degree 5 Meters
3-1/2" 83mm 95.55mm RL-F69 14.20mm 0.60mm 230 Degree 5 Meters
4" 100mm 108.50mm RL-F70 14.20mm 0.60mm 275 Degree 5 Meters

Competitive Advantage:

Quick delivery: 10 days for one 40ft container

Compititve price
