Specifications
Brand Name :
J-ENERGIZE
Model Number :
YJ600
Place of Origin :
XIAN, CHINA
MOQ :
1 Unit
Payment Terms :
L/C, T/T, negotiated
Delivery Time :
negotiable
Packaging Details :
Carton
Capacity :
600W
AC input voltage :
(165-275)VAC
AC Output voltage :
110V/120V±2% OR 220V/230V±2%(BATTERY MODE)
Usage :
Camping,Emergency,emergency light module,rechargeable emergency exit light
Product name :
Emergency power supply
Application :
led panel light; led down light; led ceiling light,HOTEL,Commercial,Emergency,for most led lighting products
Description

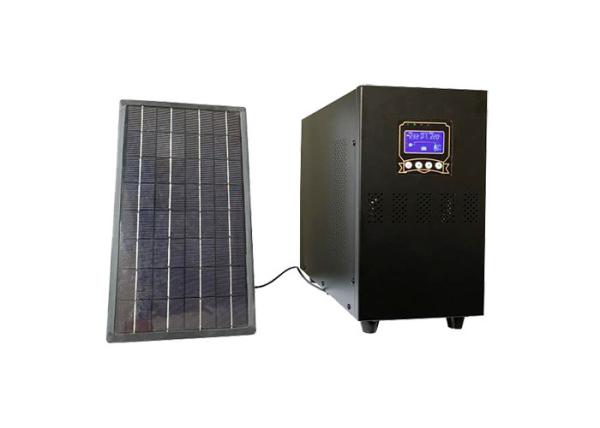

YJ Series Portable Solar Power Generator



YJ series supports charging for all your necessities and electronic devices, GoPros, drones, lights, or speakers. It’s engineered without an engine for clean power without the hassle of fumes, fuel, or noise to make it an ultra-versatile silent power source that is maintenance-free. With solar panel capability, this station is designed for outdoor activities like camping, tailgating, or festivals where you need power on the go. Functional for indoor use as well, it conveniently comes with a reading light and a dual mode flashlight for low light environments.

Key Features
♦ pure sine wave AC output
♦ LCD display
♦ high quality and capacity optional batteries
♦ high performance, no pollution, green environmental protection
♦ More than 1000 times charging and discharging cycle*
♦ Support the solar panels charge
♦ Low noise, almost 50dB in 1meter.
♦ real-time display parameters such as voltage, current, power, battery, and working mode
♦ automatic computing power equipment, accurately show the rest of the time
♦ overcharge, discharge, overload, overheating and short circuit protection function
♦ LifePo4 type up to 2000 cycles



Specifications

ModelYJ300YJ600YJ600+YJ1000YJ1000+
Rated power300W600w600w1000w1000w
AC Input voltage(165-275)VAC
AC Input Frequency50Hz ±5%
AC Output voltageAC220V/230V±5%(BATTERY MODE)
AC Output Frequency50/60HZ±0.2%(BATTERY MODE)
Output waveformPure sine wave
Efficiency>85%
Transfer time4-6ms
Battery capacity12V38ah Lead-acid12v38ah Lead-acid12V40AH LiFePo412v65ah Lead-acid12V65AH LiFePo4
AC Charge time4H6H5H6H6H
Max AC Charge current0-40A(Optional)
Solar input voltagePWM (12V TO 25V, 24V TO 50V, 48V TO 80V)
Solar charge current40A
Solar panel100W150w100W*2150W*2150W*2
Solar panel price
Solar charge time5h6h5H6H5H
Distortion rate<3% (full load)Linear load
<6% (full load)Non-Linear load
ProtectionOver voltage, over term, over load, short circuit, battery voltage high & low, AC input voltage high & low, automatic re-cover
Load peak ratio3:1 (Max)
Overload capacity110-130%,turn off after 10 secs, over 130% maintain 0.3 secs and then shut down
Operation term-25~45°C
Humidity5%~90%( non-condensation)
Altitude≤ 4500m
CoolingAir cooling(inner term over 45°C) when machine temperature is up to 45℃, fan works; when it’s lower than 45℃, fan stop automatically.
MTBF≥50000H
DimensionL430*W195*H360mmL430*W195*H360mmL430*W195*H360mmL430*W195*H360mmL430*W195*H360mm
Package dimensionL470*W280*H420mmL470*W280*H420mmL470*W280*H420mmL470*W280*H420mmL470*W280*H420mm
Net weight17kg25kg10kg26kg12kg
Gross weight19kg28kg12kg29kg14kg



Wide Application


Camping AC 600W PWM LifePo4 Emergency Power Supply Uninteruptible Power Supply
Service

1. Pre-service

-- 7/24 online service for your consult.

-- Help choose right model, and a series of service, person, advise.

2. Middle service

-- Give you best offer.

-- Provide discount for qty order.

-- Do customer's request.

-- Choose payment term as you convenient.

-- Delivery promptly, and inform you in time.

-- Provide invoice value as you like to decrease your tax.

3. After sale service

-- 1-year warranty service and all life maintenance.

-- Technical engineer are available for oversea training.

-- Free change for some parts.

-- Remote control technical service.

-- Maintenance plan.
