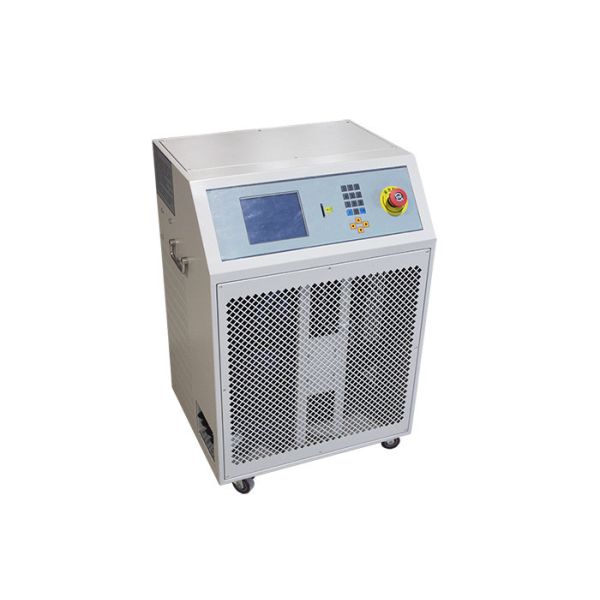

100KW AC Resistive Load Bank , Generator Portable Resistive Load Bank
100KW AC Resistive Load Bank , Generator Portable Resistive Load Bank
100KW AC Resistive Load Bank , Generator Portable Resistive Load Bank
100KW AC Resistive Load Bank , Generator Portable Resistive Load Bank
Specifications
Brand Name :
J-ENERGIZE
Model Number :
JET-ACO 380/10
Place of Origin :
XIAN, CHINA
MOQ :
1 Unit
Payment Terms :
L/C, T/T, Negotiable
Delivery Time :
Negotiable
Packaging Details :
Wooden Case
Load voltage :
Three-phase AC380V, Single-phase AC220V
Load Power (3-Phase) :
100KW
Display :
8-inch TFT high-light
Voltage measurement range :
AC 0~450V, Display Resolution: 0.1V, Precision: ±0.5%
Type :
Resistive load bank
Application :
Generator,UPS,Battery,Power Plant,Generator Load Test
Qty of Parallel Operation :
1~99 sets
Insulating Strength :
Input ≥ AC1500V, Output ≥ AC500V
Cooling mode :
FCT (Fan Control Temperature)
Description

100KW Generator Load Bank Portable Resistive Load Bank 2-50 orders Harmonic Content

JET-ACO 380/10 AC Resistive Load Bank

Why a load testing?

A load testing is part of the maintenance for a generator.

There are multiple reasons generator should undergo a load bank test on an annual basis, including but not limited to the following:

  • Verifies the generator capabilities opposed to just routinely starting it up.
  • Problems discovered early can be significantly less expensive and prevents future major issues.
  • Helps to avoid wet-stacking and cleans out carbon deposits.
  • Verifies the engine cooling systems will perform while under load.
  • Provides assurance that the generator should work properly when you need it most.

What it will be tested?

  • Three-phase voltage
  • Current
  • Active power& reactive power
  • Apparent power
  • Power factor
  • Frequency
  • Running time
  • Energies of generators and UPS

Functions & Features

◆ It has harmonic analysis of 2-50 orders of harmonic content and the total harmonic content for voltage or current.

◆ Large LCD screen, keyboard operation design.

◆ Parallel operation function to enlarge the capacity.

◆ 30 groups of test data can be saved, for checking and exporting.

◆ Powerful PC software can detect data real time operation, upload and analyze data and pattern and print report etc.

◆ Full protection function, it can turn off load, terminate discharging and alarm automatically when over temperature and over current.

◆ Set at most 5 groups power, memory active load process automatically.

Specifications

Mode JET-ACO 380/10 JET-ACO 380/20 JET-ACO 380/50
Load Voltage Three-phase AC380V, Single-phase AC220V *
Load Power (3-Phase) 100KW 200KW 500KW
Load Power (1-Phase) 33KW 66KW 160KW
Discharging Time 0~19 hours 59 minutes, adjustable continuously
Voltage Range AC 0~450V, Display Resolution: 0.1V, Precision: 0.5%
Current Range

AC 0~300A,

Resolution 0.1A,

Precision 0.5%

AC 0~400A,

Resolution 0.1A,

Precision 0.5%

AC 0~400A,

Resolution 0.1A,

Precision 0.5%
Frequency Range 45~65 Hz, Display Resolution: 0.01Hz, Precision: 0.2%
Power Range 0~100 KVA, Display Resolution: 0.1KVA, Precision: 1% 0~200 KVA, Display Resolution: 0.1KVA, Precision: 1% 0~500 KVA, Display Resolution: 0.1KVA, Precision: 1%
Power Factor Range 0.001~1.000, Display Resolution: 0.001, Precision: 0.5%
Harmonic Content Range 2-50 orders, Display Resolution: 0.01%, Precision: 1%
Cooling mode FCT (Fan control Temperature)
Comm Port RS232, RS485 and SD card port
Display 8-inch TFT high-light
Insulating Strength Input ≥ AC1500V, Output ≥ AC500V
MTTF ≥ 50000h
Qty of Parallel Operation 1~99 sets
Recording Period 6~999 Seconds
Temperature Range -20~100℃,Display resolution: 1℃, precision:±1℃
Working environment

Working Temperature: (-20~55)℃,

Storage Temperature: (-45~75)℃

Relative Humidity: 90%(40±2℃)

Atmospheric Pressure: (70~106) KPa
Working Power Supply 1-phase AC220V±10, 50Hz*
Dimensions 680×600×900mm 1300×600×900mm 1600×1200×1650mm
Weight 90kg 150kgs
  1. s

100KW AC Resistive Load Bank , Generator Portable Resistive Load Bank

Service

1, Support imprint your logo on products and let your logo shine anywhere

2, OEM/ODM orders available if quantity appropriate

3, We own the best after-sale service. If any problem happens, our team will do our best to solve it.

4, We can ship products by sea, by air and by Courier

Packaging and Delivery

1, Aluminum box and carton box, careful and tight package, make sure the package is intact during delivery.

2, The package will be shipped by DHL/FedEx/TNT/EMS/UPS/Special line, which can be specified in the order.

3, The shipping time is different, it depends on the distance between us, and the quantity ordered.
