Specifications
Brand Name :
YH PIONEER
Place of Origin :
China
MOQ :
1 Sets
Price :
To be negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets/month
Delivery Time :
To be negotiated
Packaging Details :
Wooden box
Application :
Conveyor System
Chain Plate Type :
Turning Plate
Material :
Stainless Steel、POM
Corrosion Resistance :
High temperature resistance
Weight :
3.28 kg/m
Width Or Diameter :
Customized
Size :
Customized
Load Capacity :
3200N
Description

Flexible Sideflex Turning Chain with Roller for Customized Space - Saving Automation Layouts

Sideflex Rubber Top Plastic Chain with Roller Chain

We provide professional Sideflex Rubber Top Plastic Chain with Roller Chain, support the conveying of various types , and provide a variety of conveying types.

The Sideflex Rubber Top Plastic Chain with Roller Chain is an advanced conveyor chain designed for applications requiring sharp turns and complex routing in material handling systems. This chain is particularly well-suited for various turning conveyors, offering a combination of durability, flexibility, and performance.

PRODUCT ADVANTAGE

* High-Performance Material: The combination of POM and TPE provides a chain plate with enhanced durability and flexibility, while the carbon steel base ensures a strong support structure.
* Temperature Resistance: The POM material is suitable for operating temperatures ranging from -30°C to +90°C, ensuring reliable performance in various conditions.
* Maximum Conveying Length: The chain is designed to handle maximum conveying lengths of up to 30 meters for carbon steel base chains and 24 meters for stainless steel base chains, depending on the application's demands.

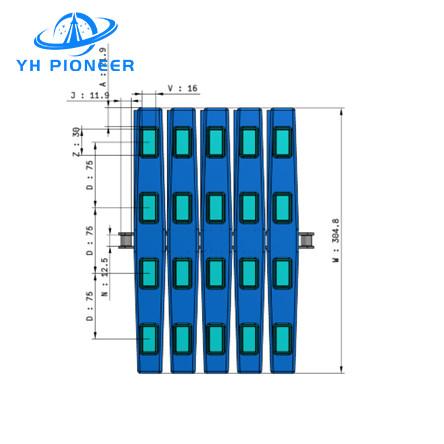

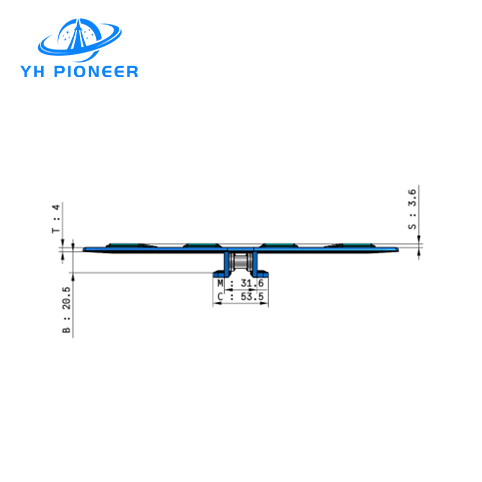

PRODUCT SPECIFICATIONS
*Width: 304.8 mm
*Pitch: 75.0 mm
*Offset Distance: 21.9 mm
*Turning Radius: 610 mm
*Working Load: 3200 N
*Weight per Meter: 3.28 kg
*Base Chain Material: Carbon steel or stainless steel for different environments
*Chain Plate Material: Polyoxymethylene (POM) combined with Thermoplastic Elastomer (TPE)


PRODUCT MATERIALS

*Chain Plate: Constructed from coffee-colored POM for strength and wear resistance, with a TPE overlay for added flexibility and grip.
*Base Chain: Made from carbon steel for standard applications and stainless steel for environments requiring higher corrosion resistance.

PRODUCT APPLICATIONS​
This chain is primarily suitable for light-load and 360-degree rotating conveyor belts, making it an excellent choice for applications in the food, pharmaceutical, and consumer goods industries, among others, where products need to be transported around corners or in circular patterns.

PRODUCT PARAMENTERS

Product name
 Sideflex Rubber Top Plastic Chain with Roller Chain
Application
 mainly suitable for various kinds of sideflex conveyor.
Conveying length
 Brown polyoxymethylene (POM), operating temperature -30°C~+90°C
Maximum conveying total length
 Stainless steel roller base chain Max. length 24 Meters. Carbon steel roller base chain Max. Length 30Meters.
Package
 1.524Meters/PC.
Width
Rubber Centres Distance
Distance between rubber and plate side
Sideflex Radius
Working load
Weight
Roller Base Chain Material
Chain plate material
 POM+TPE

*It can be modified according to customer requirements.
Please contact us for the latest specification stock and quotation
