We provide professional Modular Belt with Universal Roller, support the conveying of various types , and provide a variety of conveying types.

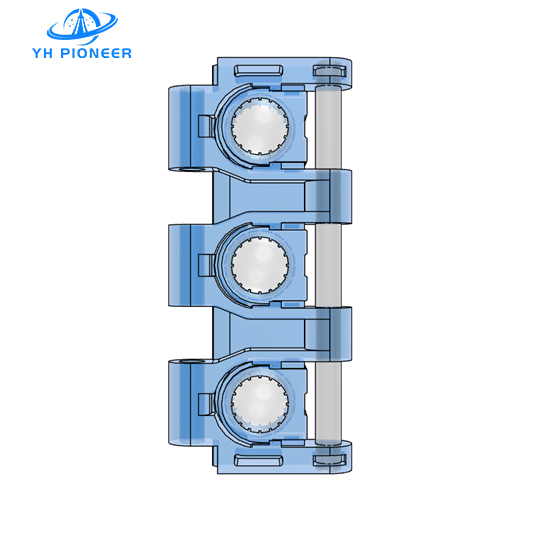

The Modular Belt with Universal Roller is an innovative conveyor belt system designed for flexible and adaptive material handling. This belt features a unique top universal ball design, making it ideal for applications such as sorting and diverting in packaging and conveyor systems.

* Modular Design: Easy to install and maintain, with the ability to quickly replace or upgrade components as needed.
* Universal Rollers: Provide multi-directional rotation, allowing the belt to move items flexibly in various directions.
* Durable Construction: Made from robust materials such as plastic or metal to accommodate different loads and environmental conditions.

* High Adaptability: Capable of achieving complex conveyor paths within limited spaces, including turns and elevations.
* Easy Maintenance: The modular design allows for quick replacement of damaged parts.
* Reduced Friction: The roller design minimizes energy consumption and reduces the risk of product damage during conveyance.
* Customizability: Can be tailored to meet different material characteristics and production line requirements by customizing roller types and belt widths.

PRODUCT SPECIFICATIONS
* Application: Suitable for sorting and diverting in packaging conveyor systems.
* Belt Material: Polyoxymethylene (POM), with a temperature range of -30°C to +90°C.
* Pin Material: Polypropylene (PP).
* Roller Material: POM/Stainless Steel 304.
* Belt Load: 16000N per meter for POM.
* Belt/Roller Color: Coffee color/White.
* Weight: 9.2kg/m² for POM belt, 20kg/m² for stainless steel 304 rollers.
* Standard Module Width Multiplier: 1.

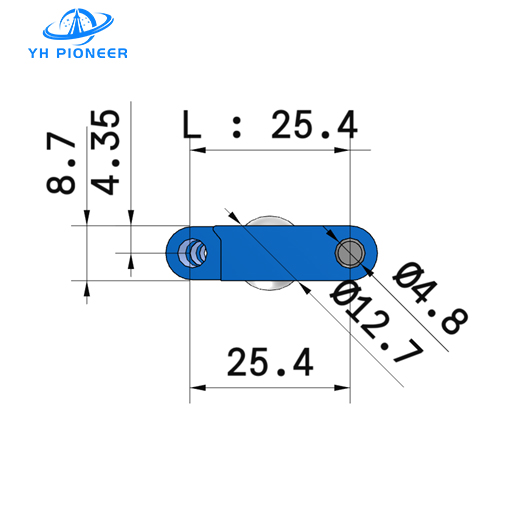

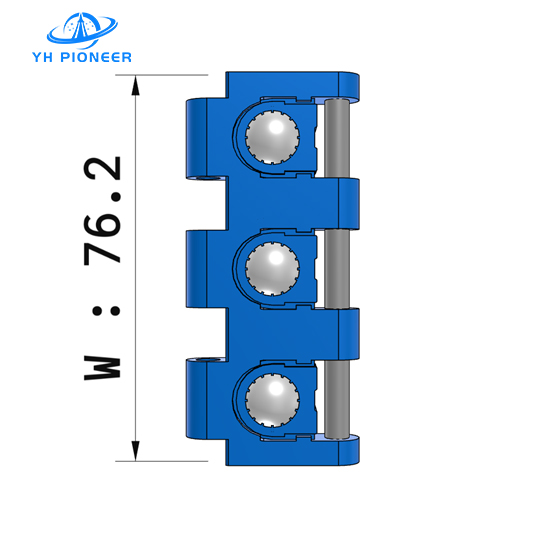

* Belt Width: 76.2 mm.
* Standard Pitch Multiplier: 1.
* Standard Belt Width (MBT): W = 76.2 mm times the number of standard modules (N).

PRODUCT MATERIALS

* Belt: Constructed from POM, known for its strength and rigidity within a wide temperature range.
* Rollers: Made from POM or stainless steel 304, offering a choice between cost-effectiveness and high durability.

PRODUCT APPLICATIONS

* Automated Production Lines: For the conveyance of items that require multi-directional movement or sorting.
* Logistics and Sorting Centers: Where items need to be diverted or sorted in various directions.
